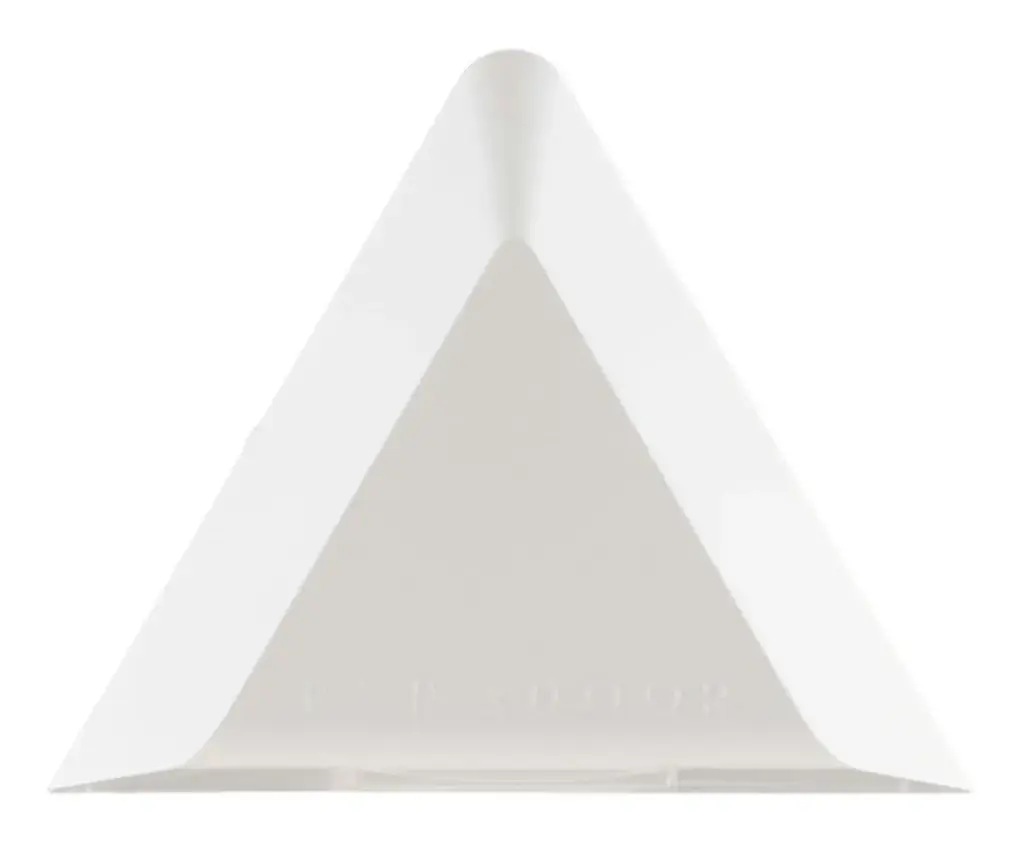

Paradox 460-P2C – Vertical View PIR Motion Detector

The Paradox 460-P2C is a compact passive infrared motion detector designed for vertical curtain detection. Its narrow field of view makes it ideal for monitoring doorways, corridors, and restricted access zones. Often used as a Request-to-Exit (REX) sensor, it ensures controlled and reliable motion detection in commercial or residential security setups.

🔑 Key Features

• Vertical Curtain Detection – Ideal for doorways, corridors, and narrow spaces

• Adjustable Lens Position – Switch between 0° or 10° angles for flexibility

• Dual Application Modes – Optimised for either hand-sized (access control) or full-body (security) detection

• Tamper Protection – Alerts when cover is removed or tampered with

• Compact Design – Includes stand-off mounts for easier installation on door frames

⚙️ Technical Specifications

• Model: 460-P2C

• Detection Range:

  • Hand-sized: Up to 2M x 1.5M

  • Body-sized: Up to 6M x 4.5M

• Detection Angle: 40°

• Installation Height: 2.0M to 2.7M

• Power Supply: 9–16V DC or 20–27V DC

• Current Draw: Max 18mA

• Alarm Output: Normally Open / Normally Closed

• Alarm Duration: Adjustable from 0.5 to 25 seconds

• Operating Temperature: -10°C to +50°C

• Dimensions: 92 x 114 x 33MM

• Weight: Approx. 76g

🏢 Best Used For

• Request-to-Exit Applications – Controlled exits in access-controlled environments

• Door and Corridor Surveillance – Reliable vertical detection in narrow paths

• Commercial Installations – Offices, retail stores, warehouses

• Residential Security – Discreet motion detection for entryways and hallways
