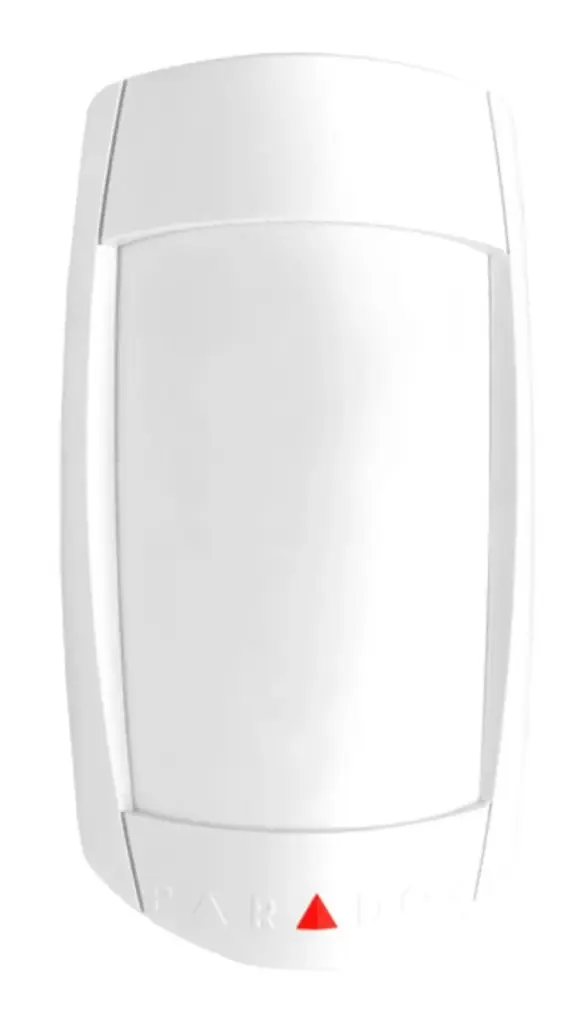

DG75+

Paradox Enhanced Indoor Dual-Optic PIR Motion Detector with advanced pet immunity. Designed for high-accuracy detection in residential and commercial indoor environments.

🔑 Key Features

• Dual-element PIR with high-precision detection

• Enhanced pet immunity up to 40KG

• Multi-level sensitivity adjustment

• Digital signal analysis to reduce false alarms

• Tamper protection and LED signal indicators

• Wide-angle coverage with uniform detection field

• Ideal for high-traffic and variable-temperature indoor areas

⚙️ Technical Specifications

• Detection Range: 11M × 11M (wide angle)

• Pet Immunity: Up to 40KG

• Installation Height: 2.1M recommended

• Operating Temperature: –10°C to 50°C

• Power Supply: 9–16V DC

• Current Draw: Typically 16mA

• Alarm Output: Form A relay

• Tamper Switch: NC contact

• Lens Type: Enhanced PET lens

• Mounting: Wall mount or corner with optional bracket

• Dimensions: Approx. 9.2 × 6.4 × 4.2CM

📌 Best Used For

• Indoor motion detection for homes and offices

• Areas with small to medium-sized pets

• False alarm-prone spaces like garages or hallways

• Residential or small business alarm systems

• Environments with fluctuating indoor temperatures

🎛️ Optional Mounting Bracket

Use the Paradox SB469 swivel mount bracket for versatile installation—supports ceiling, wall, or corner mounts and ensures optimal sensor positioning
