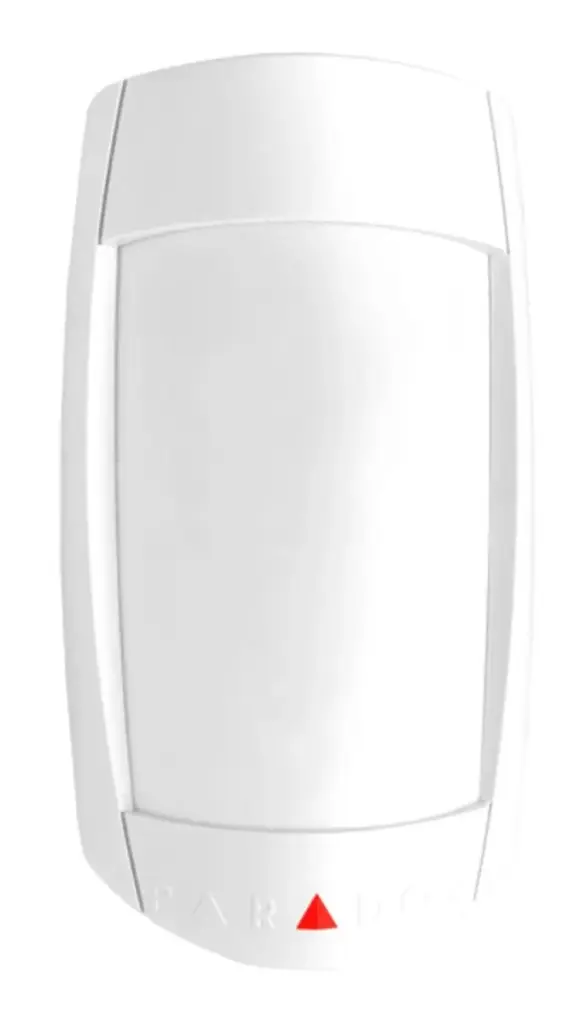

DG75+
Paradox Enhanced Indoor Dual-Optic PIR Motion Detector with advanced pet immunity. Designed for high-accuracy detection in residential and commercial indoor environments.
🔑 Key Features
Dual-element PIR with high-precision detection
Enhanced pet immunity up to 40KG
Multi-level sensitivity adjustment
Digital signal analysis to reduce false alarms
Tamper protection and LED signal indicators
Wide-angle coverage with uniform detection field
Ideal for high-traffic and variable-temperature indoor areas
⚙️ Technical Specifications
Detection Range: 11M Ă— 11M (wide angle)
Pet Immunity: Up to 40KG
Installation Height: 2.1M recommended
Operating Temperature: –10°C to 50°C
Power Supply: 9–16V DC
Current Draw: Typically 16mA
Alarm Output: Form A relay
Tamper Switch: NC contact
Lens Type: Enhanced PET lens
Mounting: Wall mount or corner with optional bracket
Dimensions: Approx. 9.2 Ă— 6.4 Ă— 4.2CM
📌 Best Used For
Indoor motion detection for homes and offices
Areas with small to medium-sized pets
False alarm-prone spaces like garages or hallways
Residential or small business alarm systems
Environments with fluctuating indoor temperatures
🎛️ Optional Mounting Bracket
Use the Paradox SB469 swivel mount bracket for versatile installation—supports ceiling, wall, or corner mounts and ensures optimal sensor positioning
Documents
Specifications
Brand | Paradox |
