G550-K9A

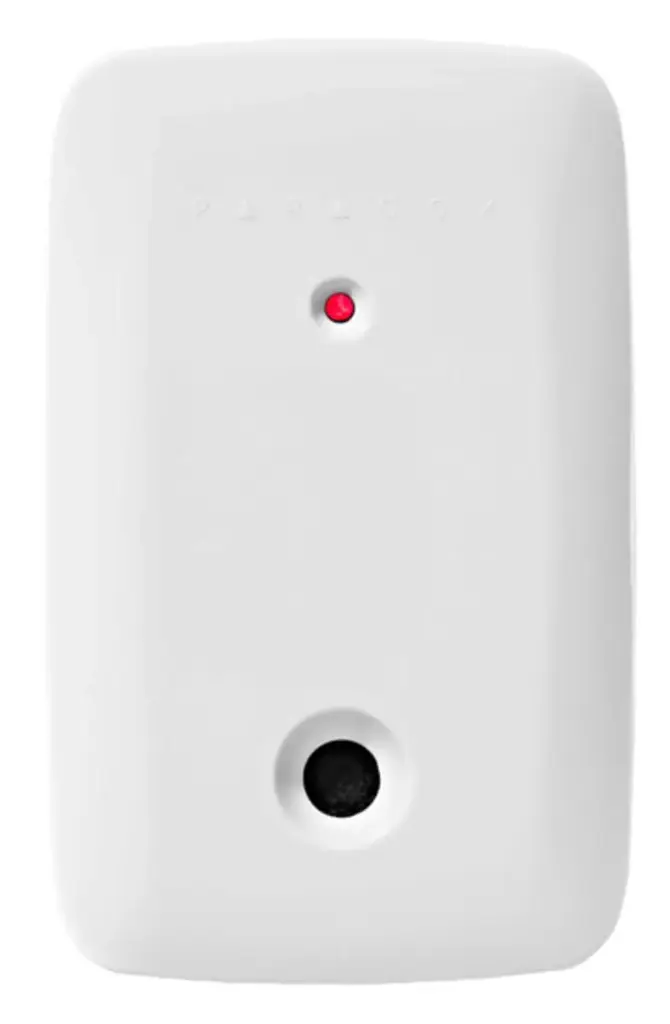

Paradox G550-K9A – Wireless Glassbreak Detector (433MHz)

The Paradox G550-K9A is a wireless acoustic glassbreak detector designed to provide fast and reliable detection of glass shattering events. With a 360° coverage radius of up to 6 meters, this device is ideal for monitoring glass doors, windows, and storefronts in both residential and commercial environments. The detector operates on 433MHz and is compatible with Paradox wireless systems via RTX3 receivers.

🔑 Key Features

• 360° Detection – Omnidirectional microphone monitors glass breakage in all directions

• 6M Detection Radius – Covers up to 6 meters from the detector location

• Battery Powered – Operates using 3x AAA alkaline batteries with a typical life of 2 years

• Anti-RFI/EMI Design – Resistant to radio and electromagnetic interference

• Glass Type Compatibility – Detects plate, tempered, laminated, and wired glass

• Factory-Calibrated Sensitivity – Simplifies installation and reduces false alarms

• Supervised Wireless Link – Communicates with compatible Paradox panels and triggers alerts upon loss of signal or low battery

⚙️ Technical Specifications

• Model: G550-K9A

• Detection Range: 6M (20FT) radius

• Coverage: 360° acoustic detection

• Frequency: 433MHz

• Power Supply: 3 x AAA 1.5V alkaline batteries

• Battery Life: Approx. 2 years

• Operating Temp: 0°C to 50°C

• Mounting: Ceiling or wall (line-of-sight to glass recommended)

• Compatible Panels: Paradox EVO, MG, SP (via RTX3 receiver)

🏢 Best Used For

• Home Security – Effective for monitoring sliding doors, windows, or patio glass

• Office Installations – Ideal for conference rooms or glass-walled offices

• Retail Stores – Protects storefront glass and display cases

• Warehouse Entry Points – Detects glass breaches in loading areas and rear access points
