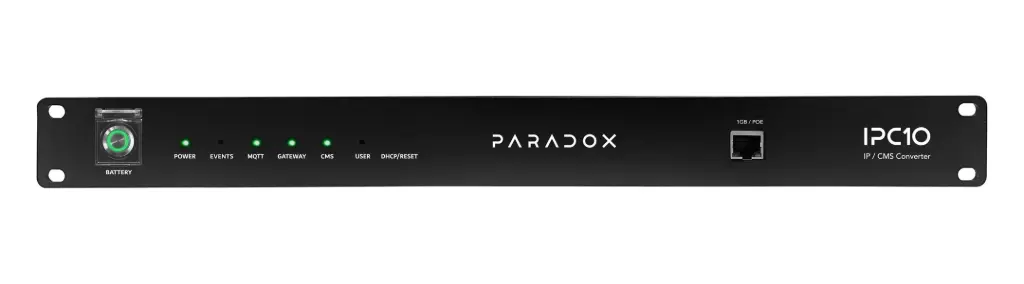

IPC10-P2C

The Paradox IPC10-P2C is a high-performance IP-to-CMS converter designed to seamlessly bridge Paradox security systems with central monitoring station (CMS) software. Utilizing MQTT technology, it ensures rapid, reliable, and encrypted communication, making it an ideal solution for modern security infrastructures.

Key Features:

• High Capacity Monitoring:
  Supports up to 5,000 supervised accounts with default 5-minute supervision intervals, or 3,500 accounts at a high-security 90-second supervision interval.

• Rapid Communication:
  Achieves reporting cycles from panel to CMS in less than 100 milliseconds, ensuring timely data transmission.

• Secure Data Transmission:
  Employs AES 128-bit encryption for all communications, safeguarding against unauthorized access.

• Simplified Integration:
  Designed for easy setup with minimal programming, requiring only IP address and port configurations.

• Single-Cable Connectivity:
  Features a single Ethernet connection that provides both data and Power over Ethernet (PoE), reducing installation complexity.

• Robust Event Buffering:
  Includes a 10,000-event internal buffer to store events in case of CMS downtime, ensuring no data loss.

• Compact and Efficient Design:
  Housed in a 1U rack-mountable unit with low power consumption, suitable for environments with limited space.

• Quick Replacement Capability:
  In the event of hardware replacement, the IPC10-P2C can restore full operation within five minutes using the same IP and port settings.



Compatibility:

The IPC10-P2C is compatible with the following Paradox devices:

• IP180 (Ethernet + Wi-Fi)

• PCS265V8 (LTE)

• IP150+ with firmware version 6.0 or higher

• Paradox panels with onboard IP or cellular modules

It supports communication protocols such as Sur-Gard MLR2-DG and Ademco 685, facilitating integration with various CMS platforms.

Technical Specifications:

• Input Voltage: PoE, 37–57 V DC, Class 2 device

• Power Consumption: 12.5W

• Operating Temperature: 0°C to 40°C

• Dimensions: 48.26 x 20.3 x 4.2cm

• Weight: Approximately 3.41 kg

• Encryption: AES 128-bit

• Mounting: Fits standard 19IN rack (1U)

The Paradox IPC10 is engineered for reliability and efficiency, making it an excellent choice for security professionals seeking to enhance their CMS integration capabilities.
