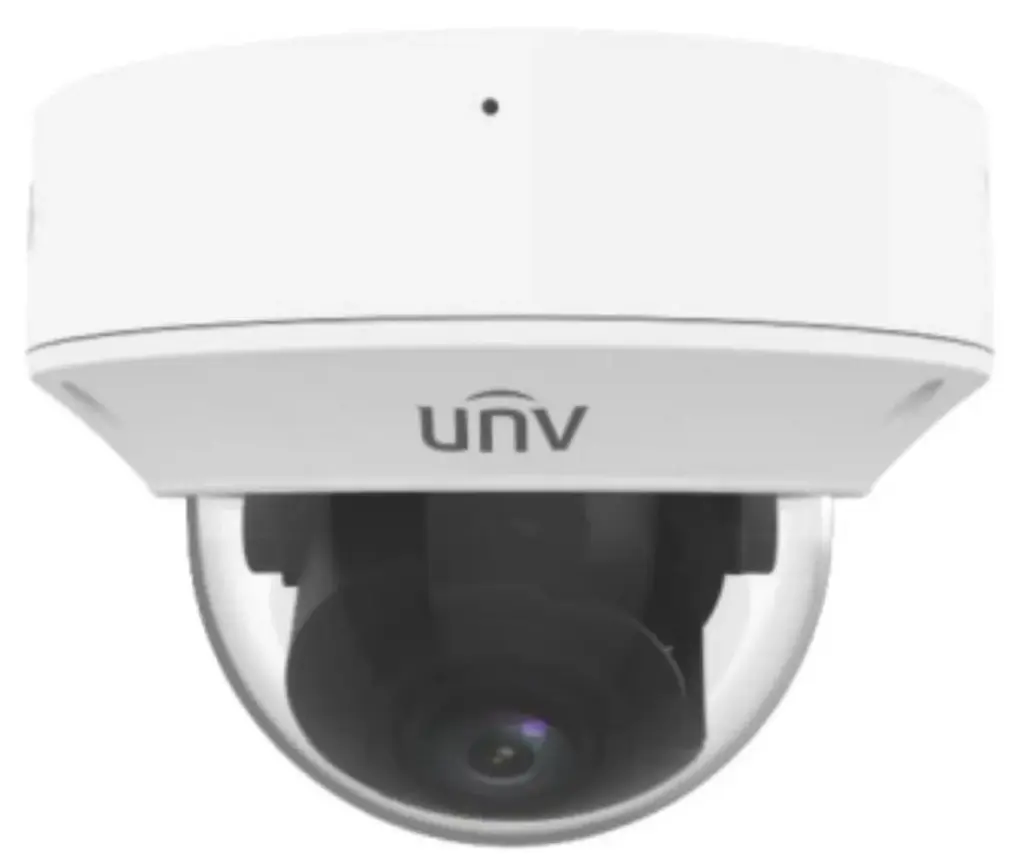

IPC3235SB-ADZK-I0

This is a 5MP LightHunter IR VF Dome Network Camera designed for high-quality surveillance in various environments. It features advanced imaging technology, intelligent analytics, and robust construction, making it suitable for both indoor and outdoor applications.

📷 Key Features

• High-Resolution Imaging: Delivers 5MP (2880 × 1620) resolution at up to 30 fps, ensuring detailed video capture.

• LightHunter Technology: Provides exceptional low-light performance, capturing clear images in environments with minimal illumination.

• Motorized Varifocal Lens: Equipped with a 2.7–13.5mm motorized zoom lens, offering a horizontal field of view from 106.3° to 32.5°, allowing flexible monitoring of various areas.

• Smart Intrusion Prevention: Supports intelligent detection modes, including cross line, intrusion, enter area, and leave area detection, with false alarm filtering based on human, vehicle, and non-motorized vehicle classification.

• People Counting & Crowd Density Monitoring: Enables accurate people flow counting and crowd density analysis, beneficial for managing public spaces.

• Wide Dynamic Range (WDR): 120dB true WDR technology ensures clear images in high-contrast lighting scenarios.

• Infrared Night Vision: Smart IR technology offers up to 40 meters (131 feet) of IR distance for clear night-time imaging.

• Durable Design: Built to withstand harsh conditions with IK10 vandal resistance and IP67 weatherproof rating, suitable for both indoor and outdoor installations.

• Edge Storage: Supports Micro SD cards up to 256GB for local recording, ensuring data retention even during network interruptions.

• Power over Ethernet (PoE): Simplifies installation by allowing power and data transmission over a single cable.



📊 Technical Specifications

• Sensor: 1/2.7IN CMOS sensor

• Minimum Illumination: Color: 0.002 lux (F1.2, AGC ON); 0 lux with IR

• Shutter Speed: Auto/Manual, 1 ~ 1/100000s

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• Frame Rate: 5MP at 30fps; supports multiple resolutions

• Audio: Two-way audio support with built-in microphone, 1 audio input, and 1 audio output

• Alarm I/O: 1 input / 1 output

• Operating Temperature: -30°C to 60°C

• Dimensions: Approximately 148mm × 111.4mm

• Weight: Approximately 0.97kg (2.14lb)

• Ingress Protection: IP67

• Impact Protection: IK10

• Power Supply: DC 12V±25%, PoE (IEEE 802.3af)



The UniView IPC3235SB-ADZK-I0 is engineered for reliability and efficiency, making it an excellent choice for security professionals seeking to enhance their surveillance capabilities in various environments.
