IPC3636SS-ADF28KMC-I1

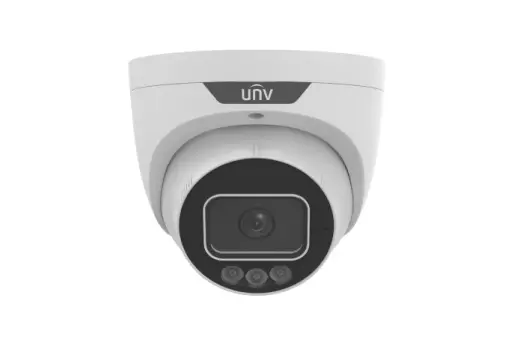

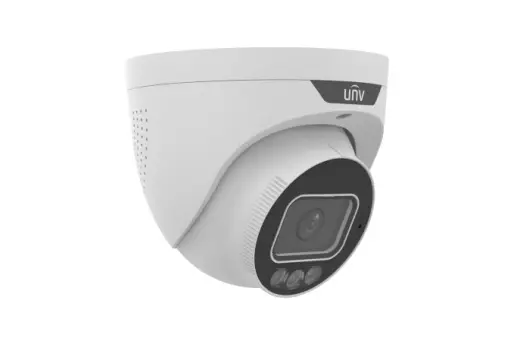

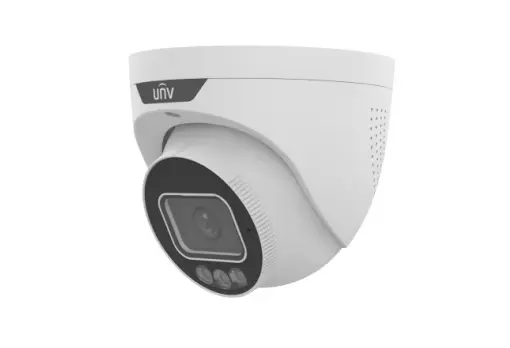

The Uniview IPC3636SS-ADF28KMC-I1 is a 6MP turret-style IP camera that combines three powerful technologies into one unit: full-color low-light imaging, active deterrence, and intelligent analytics. It’s designed to proactively prevent incidents, not just record them, making it ideal for high-security environments.

📷 Key Features

• 6MP Ultra HD Resolution
  Captures detailed images at 3072×2048 resolution up to 30fps.

• Tri-Guard Technology
  Integrates smart intrusion prevention, full-color night vision, and active deterrence with red/blue lights and a built-in speaker.

• ColorHunter with F1.0 Aperture
  Enables full-color footage in very low-light environments without infrared.

• Built-in Warm Light and IR
  Provides up to 30M of visible light and IR coverage for enhanced clarity.

• 130dB True WDR
  Maintains visibility in mixed lighting conditions, such as doorways or streets with headlights.

• Human and Vehicle Detection
  Filters out false alarms by recognizing people and cars only, ideal for smart intrusion alerts.

• Built-in Microphone and Speaker
  Enables two-way communication and voice warnings directly from the camera.

• MicroSD Storage
  Supports onboard recording with MicroSD cards up to 256GB.

• Weatherproof Design
  IP67-rated for harsh environments, suitable for both indoor and outdoor use.

• PoE Enabled
  Single cable for both power and data simplifies installation.

📊 Technical Specifications

• Sensor: 1/2.7" CMOS, 6MP

• Lens: 2.8MM fixed, F1.0 aperture

• Field of View: Horizontal 107.2°, Vertical 56.4°, Diagonal 110.1°

• Min. Illumination: 0.001 Lux (Color), 0 Lux with IR or warm light

• Shutter Speed: 1/100000s to 1s

• IR/Warm Light Range: Up to 30M

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• Audio Compression: G.711U, G.711A

• Smart Detection: Line crossing, intrusion, area entry/exit with human/vehicle classification

• Audio: Built-in mic and speaker

• Storage: MicroSD card up to 256GB

• Power Supply: 12V DC ±25%, PoE (IEEE 802.3af)

• Power Consumption: Max 10W

• Operating Temp: -30°C to 60°C

• Ingress Protection: IP67

• Dimensions: Ø129 × 118MM

• Weight: Approx. 0.65KG
