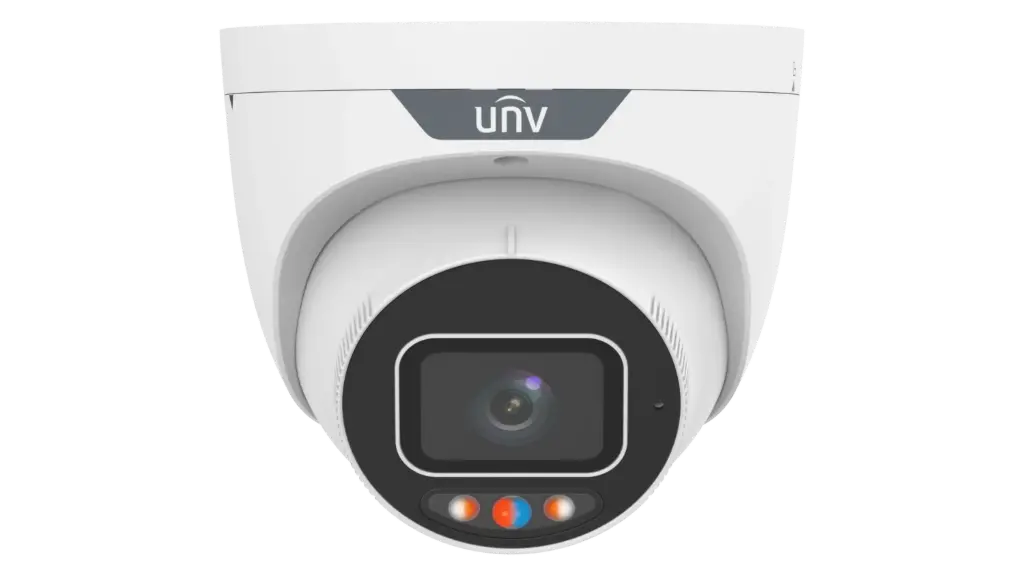

IPC3638SS-ADF28KMC-I1

A high-performance 8MP turret camera combining intelligent video surveillance, active deterrence, and full-colour imaging. Ideal for proactive security in commercial and public environments.

📌 Key Features

• 8MP Ultra HD resolution for detailed image capture

• Tri-Guard technology: full-colour imaging, smart intrusion detection, and active deterrence

• Built-in red/blue warning lights and speaker for on-site alerts

• Fixed 2.8MM lens for wide-area coverage

• Up to 30M IR and white light range for reliable night vision

• Built-in microphone and speaker for two-way audio

• Intelligent analytics including people counting and crowd density monitoring

• Rugged design with IP67 and IK10 ratings for outdoor use

⚙️ Technical Specifications

• Resolution: 8MP (3840 × 2160)

• Lens: 2.8MM fixed lens, F1.0 aperture

• FOV: Horizontal 106.5°, Vertical 57.9°, Diagonal 132°

• Minimum Illumination: 0.001 Lux (F1.0, AGC ON); 0 Lux with IR or white light

• WDR: 130dB

• IR & White Light Range: Up to 30M

• Audio: Built-in microphone and speaker, 1 input / 1 output

• Alarm I/O: 1 input / 1 output

• Storage: MicroSD card support up to 512GB

• Video Compression: Ultra 265, H.265, H.264

• Audio Compression: G.711U, G.711A

• Power Supply: 12V DC ±25% or PoE (IEEE 802.3af)

• Power Consumption: Max 10W

• Ingress Protection: IP67

• Impact Rating: IK10

• Operating Temp: -30°C to 60°C

• Dimensions: Ø129 × 118MM

• Weight: Approx. 0.69KG

🎯 Best Used For

• Carparks, retail storefronts, and warehouse perimeters

• Entrances or corridors requiring visual and audible deterrence

• Public spaces and transport stations

• Education and healthcare environments needing proactive monitoring

• Any location needing real-time response and intelligent alerts
