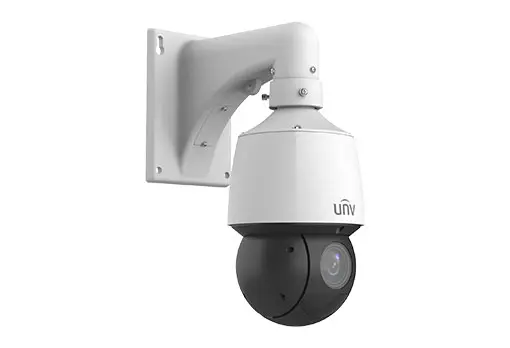

IPC6424SR-X25-VF-B

A powerful 2MP PTZ dome camera engineered for expansive surveillance. With a 25X optical zoom lens, Starlight low-light performance, and precision PTZ control, it offers detailed coverage and rapid area scanning across outdoor environments.

📌 Key Features

• 2MP Full HD resolution for smooth, clear video

• 25X optical zoom lens for long-range detail

• Starlight technology for superior low-light imaging

• Smart IR illumination up to 150M

• 360° endless pan and up to 90° tilt with auto-flip

• Intelligent video analytics including intrusion and line-crossing detection

• Supports preset tours and smart tracking

• IP66-rated weatherproof housing for outdoor deployment

⚙️ Technical Specifications

• Resolution: 2MP (1920 × 1080)

• Lens: 25X optical zoom, 4.8–120MM, F1.6–F3.5

• FOV: Horizontal 59.8°–2.6°, Vertical 35.4°–1.5°, Diagonal 67.5°–3°

• Minimum Illumination: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR

• WDR: 120dB

• IR Distance: Up to 150M

• Pan Range: 360° endless

• Tilt Range: -15° to 90°, with auto-flip

• Pan Speed: Max 240°/s

• Tilt Speed: Max 120°/s

• Presets: 300

• Audio: 1 input / 1 output, supports external mic

• Alarm I/O: 2 inputs / 1 output

• Storage: Supports MicroSD up to 256GB

• Video Compression: Ultra 265, H.265, H.264

• Power Supply: 24V AC or PoE+ (IEEE 802.3at)

• Power Consumption: Max 30W

• Ingress Protection: IP66

• Operating Temp: -40°C to 70°C

• Dimensions: Approx. Ø220 × 353MM

• Weight: Approx. 4.5KG

🎯 Best Used For

• Large-scale outdoor surveillance (carparks, airports, logistics hubs)

• Perimeter protection for industrial and government facilities

• Locations needing high-zoom capability and 360° coverage

• Areas with low-light conditions requiring enhanced night visibility

• Environments requiring preset patrols and real-time zoom control
