K-ACM12-1R-CABAC

The Paradox Door Access Kit is a fully integrated 1-door access control kit, featuring a control module, power supply, battery backup, and reader—ideal for secure access in residential or light commercial environments using Paradox EVO panels.

🔑 Key Features

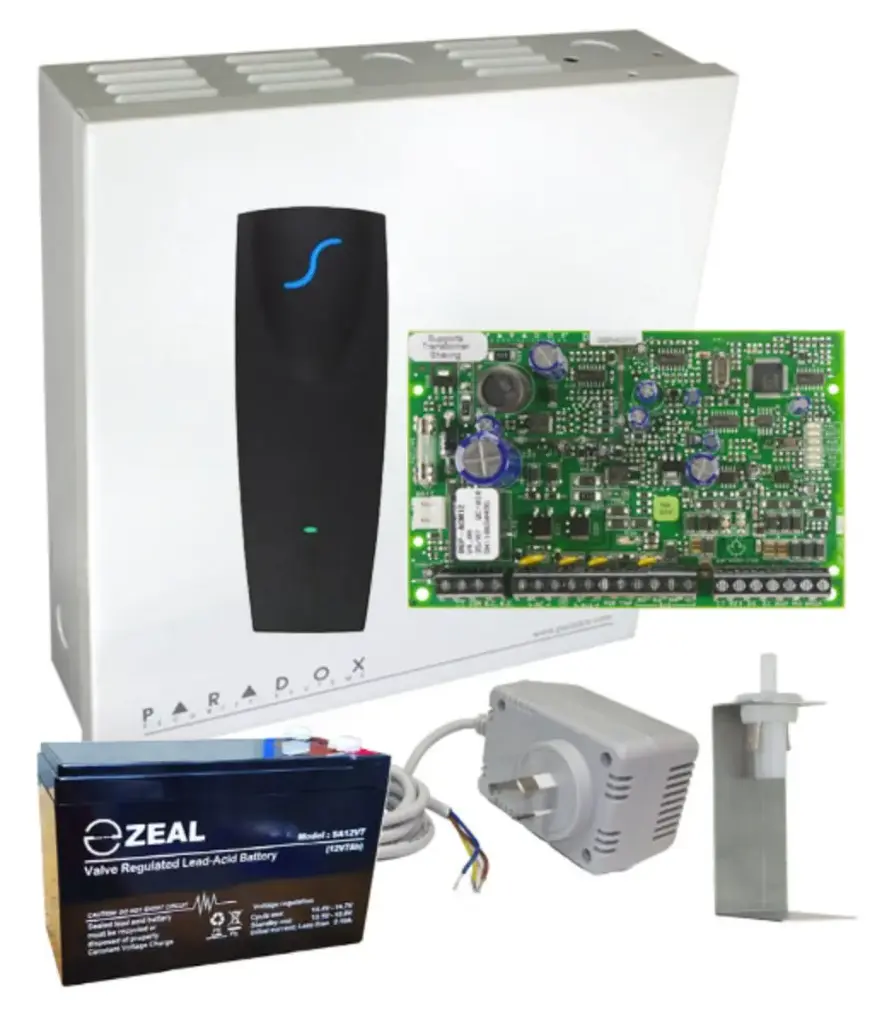

• Complete Access Control Package: Includes module, enclosure, tamper switch and bracket, battery, power supply, and proximity keypad reader

• Fail-Safe Design: 12 VDC door lock output with supervised wiring and enclosure tamper detection

• Battery Backup Support: AGM battery ensures operation during power interruptions

• User Authentication: Proximity reader with keypad supports PIN and Card entry

• Paradox EVO Integration: Seamless connection to EVO panel bus for system-wide coordination

⚙️ Technical Specifications

• Includes:

  • 1 x ACM12-E9R 4-wire access control module in metal box

  • 1 x 2780000033-P2C Metal enclosure (approx. 11 × 11 × 3 cm)

  • 1 x KTK278 Tamper switch with mounting bracket

  • 1 x SA12V7 12 VDC, 7 Ah AGM battery

  • 1 x 16VAC1500MPS16 VAC / 1.5 A power supply plug pack

  • 1 x R915 proximity reader with keypad (black)

• Compatibility: Works with Paradox EVO192

• Wiring Support: Full support for bus, lock, door contact, REX, tamper, and power supply connections

🏢 Best Used For

• Doorway Access Control: Entry systems for offices, staff rooms, or service areas

• Power Loss Resilience: Battery-backed design supports doors through outages

• Installer-Ready Kits: Pre-packaged solution simplifies deployment and configuration

• Secure PIN and Badge Entry: Ideal for facilities requiring two-factor or badge-only access



Paradox offers everything needed for a reliable and secure door access solution—including power, backup, tamper protection, and EVO panel integration—all in one comprehensive kit.
