KEV-525-CSS-NK

A professional-grade hardwired EVO192 intrusion kit designed for scalable, high-security installations. Supplied with control panel, detectors, power components, and mounting accessories—this solution is built for reliability, precision, and seamless integration with the EVO192 platform.

🔑 Key Features

• EVO192 control panel for up to 192 zones of scalable intrusion protection

• Dual-technology motion detectors combining microwave and infrared for accurate detection

• Anti-masking technology to protect against tampering

• Hardwired configuration for maximum stability and reliability

• Compatible with all EVO192  expansion and integration modules



🛠 Technical Specifications

• Model: KEV-525-CSS-NK (EVO192 hardwired intrusion kit)

• Detectors: 2 × 525DM dual-technology (microwave + infrared) with anti-masking

• Keypad: None supplied (NO-KPD)

• Compatibility: Designed for the EVO192 series

• Installation: Hardwired

• Power: 16VAC/1.5A plug pack and 12VDC/7Ah AGM battery

• Audio/Visual Alerts: Top hat piezo siren and combination siren/strobe unit

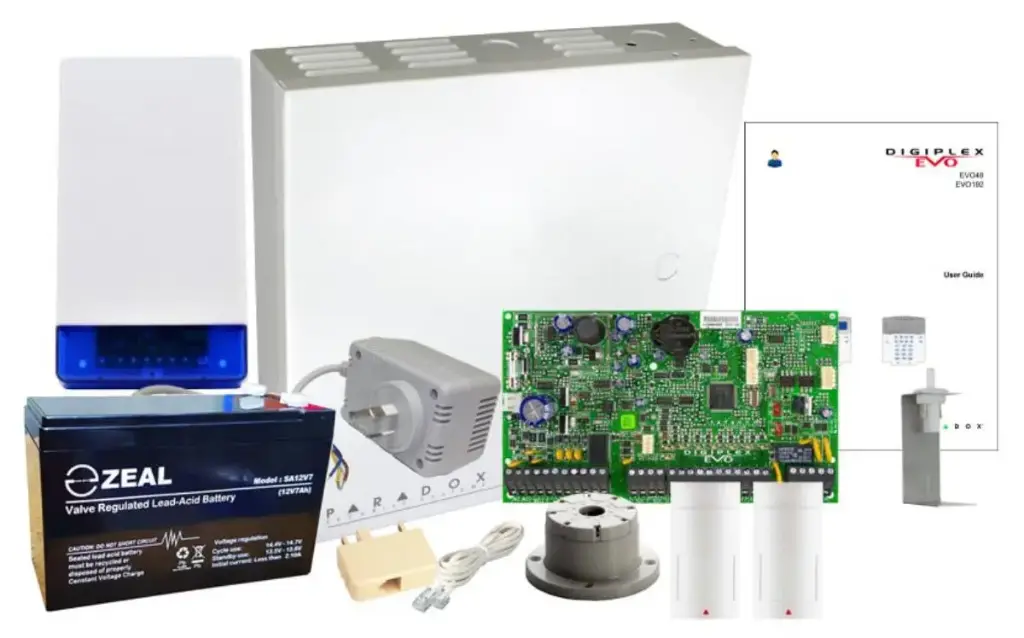

📦 Kit Includes

• 1 × Digiplex EVO192 - Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × WP08 Top Hat Piezo, 90mA, 105dB

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 2 × 525DM  Microwave and Infrared Motion Detector with MW Anti-Mask

• 1 × EVOU User Manual EVO (English)

  Supports up to: 32 Access Control Doors (requires ACM12 per door)



🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your security system. Installation service includes:

• On-site mounting and wiring of all kit components

• System programming tailored to your site layout

• Integration with existing security infrastructure

• Full operational testing and client handover

• Training on daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at the checkout for 10% off kit orders

🎯 Best Used For

• Large commercial or enterprise security environments requiring multi-zone intrusion coverage

• Centralised or remote-managed installations without a local keypad

• Sites requiring robust, tamper-resistant motion detection

• High-security applications with room for future system expansion
