KEV-525-SCO-NK

A high-performance hardwired EVO192 intrusion kit built for commercial-grade security. Supplied with control panel, motion detectors, power components, and a siren cover kit—offering robust, tamper-resistant protection and seamless integration with the EVO192 platform.

🔑 Key Features

• EVO192 control panel supporting up to 192 zones for scalable intrusion coverage

• Dual-technology motion detectors combining microwave and infrared for superior detection

• Siren cover kit with blue strobe, combo siren/speaker, tamper switch, UV-stabilised cover, and indoor top hat piezo

• Anti-masking technology to protect against tampering

• Hardwired for maximum system stability and reliability

• Fully compatible with EVO192 expansion modules and integrations

🛠 Technical Specifications

• Model: KEV-525-SCO-NK (EVO192 hardwired intrusion kit)

• Detectors: 2 × 525DM dual-technology (microwave + infrared) with anti-masking

• Keypad: None supplied (NO-KPD)

• Compatibility: EVO192 platform

• Installation: Hardwired

• Power: 16VAC1500MPS/6 plug pack and SA12V7 AGM battery

• Alerts: SC03/CO/TOP siren/strobe assembly with tamper protection plus indoor top hat piezo

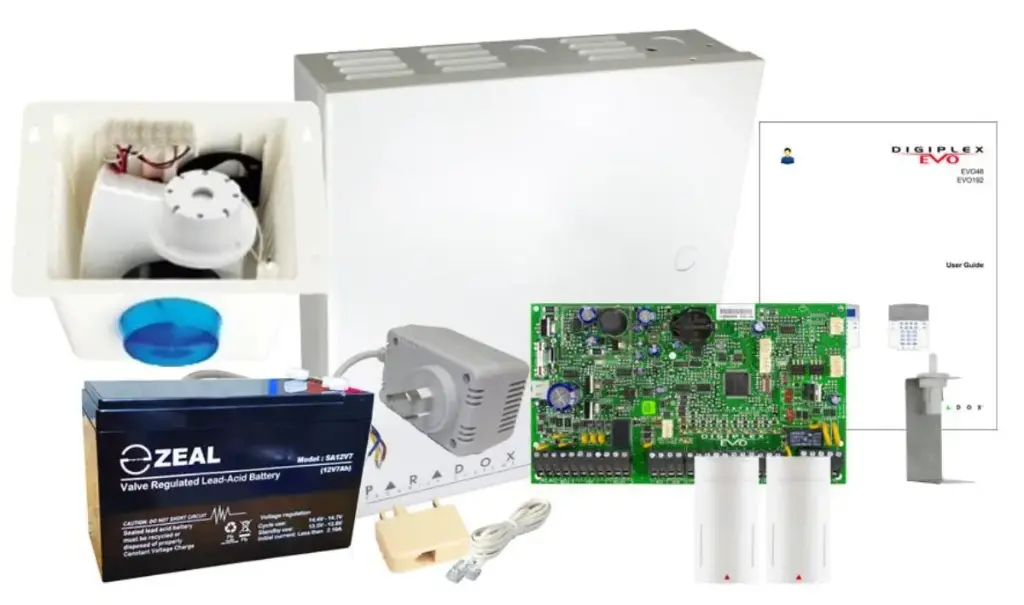

📦 Kit Includes

• 1 × EVO192 Digiplex EVO 192-Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × SC03/CO/TOP Siren Cover Kit with Blue Strobe, Combo Siren/Speaker, Tamper Switch, UV-Stabilised Cover (Pre-Wired) and Indoor Top Hat Piezo

• 2 × 525DM Microwave and Infrared Motion Detector with MW Anti-Mask

• 1 × EVOU User Manual EVO (English)

  Supports up to: 32 Access Control Doors (requires ACM12 per door)

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your EVO192 system. Installation includes:

• On-site mounting and wiring of all components

• System programming tailored to your site layout

• Integration with existing security infrastructure

• Full operational testing and commissioning

• Training for daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Commercial or enterprise premises requiring multi-zone intrusion protection

• Centralised or remote-managed security without local keypads

• Sites demanding strong tamper-resistant siren and detection systems

• High-security environments with expansion capabilities
