KEV-DG65-CSS-NK

A professional hardwired EVO192 intrusion kit featuring DG65+ motion detectors, dual siren units, and all essential power and tamper protection components—engineered for dependable performance and scalable security deployments.

🔑 Key Features

• EVO192 control panel supporting up to 192 intrusion zones

• Two DG65+ digital motion detectors for precise indoor detection

• Combo siren/strobe and indoor top hat piezo for clear audible and visual alerts

• Tamper protection hardware to safeguard against interference

• AGM backup battery for continuous operation during power loss

• Modular EVO192 platform for future upgrades and expansion

🛠 Technical Specifications

• Model: KEV-DG65-CSS-NK (EVO192 hardwired intrusion kit)

• Detectors: 2 × DG65+ digital motion detectors

• Keypad: None supplied (NO-KPD)

• Compatibility: EVO192 platform

• Installation: Hardwired

• Power: 16VAC1500MPS/6 plug pack and SA12V7 AGM battery

• Alerts: WP08 top hat piezo siren and WP16 combo siren/strobe

• Scalability: Supports up to 32 access control doors (ACM12 per door) and 254 BUS modules

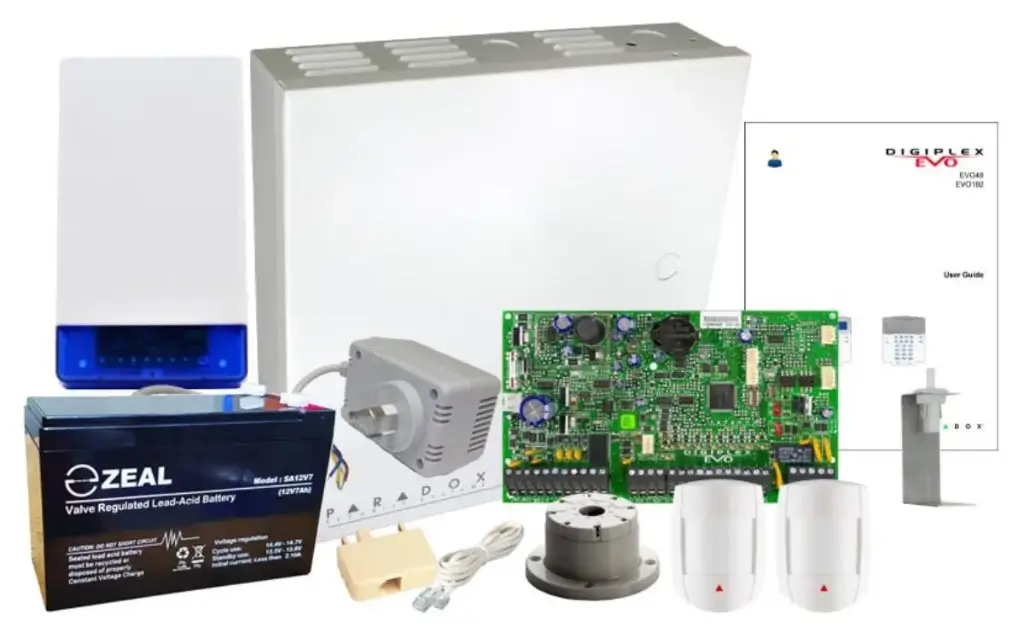

📦 Kit Includes

• 1 × EVO192 Digiplex EVO 192-Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 2 × DG65+ Digital Motion Detector

• 1 × WP08 Top Hat Piezo, 90mA, 105dB

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 1 × EVOU User Manual EVO (English)

  Supports up to: 32 Access Control Doors (requires ACM12 per door)

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all components

• System programming tailored to your site layout

• Integration with existing security infrastructure

• Full operational testing and commissioning

• Training for daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Residential or commercial sites requiring reliable motion detection and scalable intrusion protection

• Locations needing both audible and visual intrusion alerts

• Centralised or remote-managed systems without local keypad input

• Security installations designed for future expansion and upgrades
