KEV-PMD75-CSS-NK

A professional hardwired EVO192 intrusion kit featuring PMD75 pet-immune wireless-ready motion detectors, dual siren units, and essential power and tamper protection—ideal for flexible, high-performance security installations.

🔑 Key Features

• EVO192 control panel supporting up to 192 intrusion zones

• Two PMD75 dual-element motion detectors with pet immunity up to 40kg and wireless-ready capability

• Combo siren/strobe and indoor top hat piezo for strong audible and visual intrusion alerts

• Tamper protection hardware to ensure system integrity

• AGM backup battery for uninterrupted operation during power loss

• Modular EVO192 platform for scalable, upgradeable intrusion systems

🛠 Technical Specifications

• Model: KEV-PMD75-CSS-NK (EVO192 hardwired intrusion kit)

• Detectors: 2 × PMD75 dual-element motion detectors with pet immunity (wireless-ready)

• Keypad: None supplied (NO-KPD)

• Compatibility: EVO192 platform

• Installation: Hardwired with wireless device integration capability

• Power: 16VAC1500MPS/6 plug pack and SA12V7 AGM battery

• Alerts: WP08 top hat piezo siren and WP16 combo siren/strobe

• Scalability: Supports up to 32 access control doors (requires ACM12 per door) and 254 BUS modules

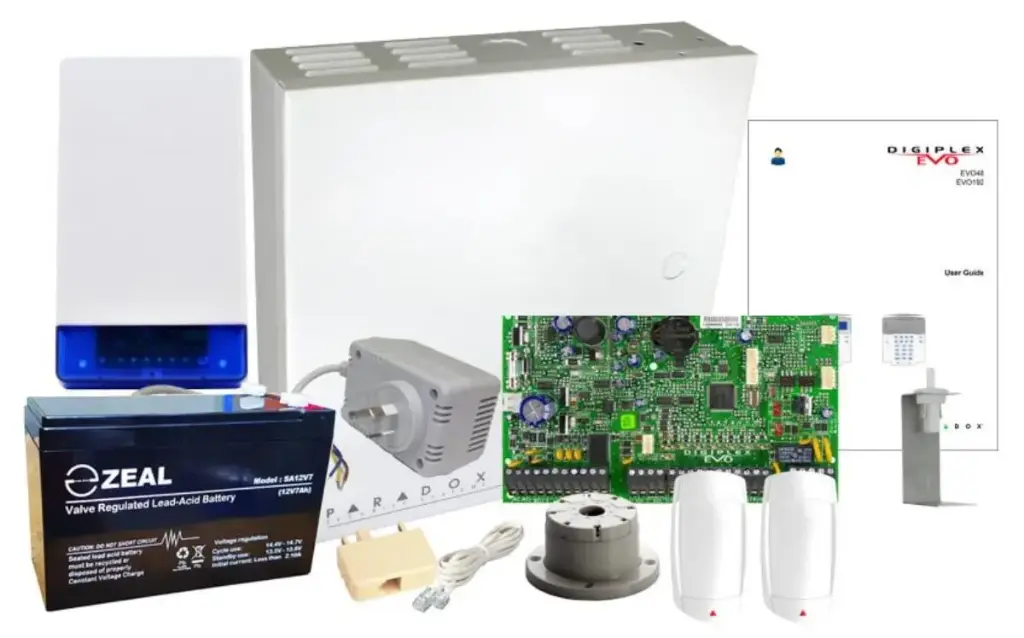

📦 Kit Includes

• 1 × EVO192 Digiplex EVO 192-Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × WP08 Top Hat Piezo, 90mA, 105dB

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 2 × PMD75 Dual-Element Motion Detector with Pet Immunity (Wireless-Ready)

• 1 × EVOU User Manual EVO (English)

  Supports up to: 32 Access Control Doors (requires ACM12 per door) and 254 BUS Modules

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all components

• System programming tailored to your site layout

• Integration with existing security infrastructure

• Full operational testing and commissioning

• Training for daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Residential or commercial sites needing pet-immune motion detection with wireless-ready flexibility

• Locations requiring both audible and visual intrusion alerts

• Centralised or remote-managed systems without a local keypad

• Security installations designed for future scalability and wireless expansion
