KEV-SCO-BASE

A professional hardwired EVO-192 intrusion kit featuring a weather-resistant siren cover kit with strobe, essential power components, and tamper protection—ideal for creating a scalable, upgrade-ready Paradox security system.

🔑 Key Features

• EVO-192 control panel supporting up to 192 intrusion zones

• Siren cover kit with blue strobe, combo siren/speaker, tamper switch, UV-stabilised cover, and indoor top hat piezo

• Tamper switch and bracket for enhanced system protection

• AGM backup battery for reliable performance during power outages

• Modular EVO-192 platform for scalable and upgradeable security configurations

🛠 Technical Specifications

• Model: KEV-SCO-BASE (EVO192 hardwired intrusion kit)

• Detectors: None supplied (Base Kit)

• Keypad: None supplied (NO-KPD)

• Compatibility: EVO192 platform

• Installation: Hardwired with wireless device integration capability

• Power: 16VAC1500MPS/6 plug pack and SA12V7 AGM battery

• Alerts: SC03/CO/TOP siren/strobe kit and indoor top hat piezo

• Scalability: Supports up to 32 access control doors (requires ACM12 per door) and 254 BUS modules

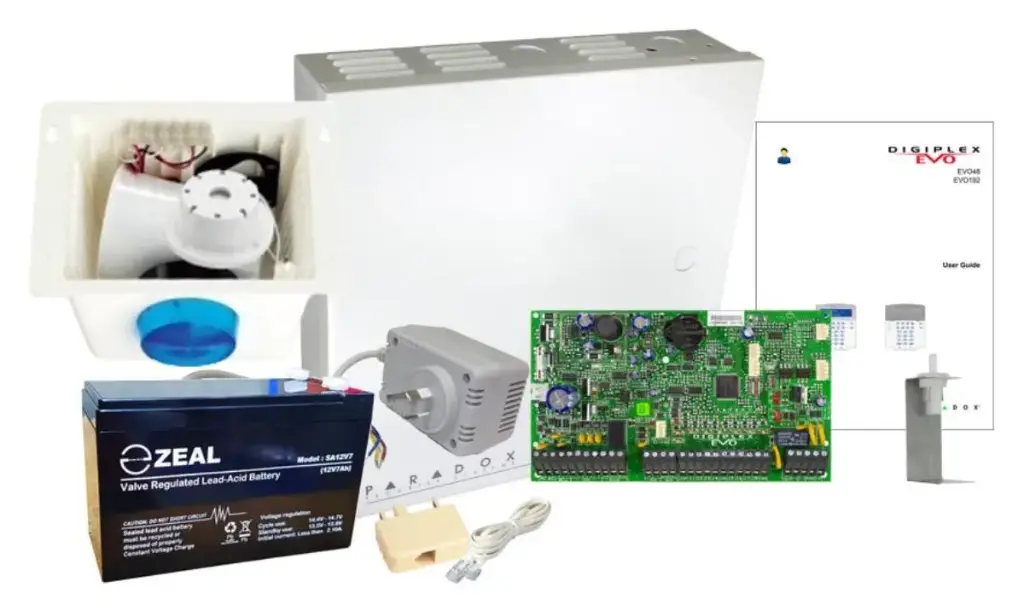

📦 Kit Includes

• 1 × PRXEVO192-R2Q Digiplex EVO 192-Zone Control Panel Unlock Serial-NO Dialer-AUS with Battery Metal Box-NO

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × DFMSC03/CO/TOP Siren Cover Kit with Blue Strobe, Combo Siren/Speaker, Tamper Switch, UV-Stabilised Cover (Pre-Wired) and Indoor Top Hat Piezo

• 1 × EVOU User Manual EVO (English)

  Supports up to: 32 Access Control Doors (requires ACM12 per door) and 254 BUS Modules

🛠️ Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all components

• System programming tailored to your site layout

• Integration with existing security infrastructure

• Full operational testing and commissioning

• Training for daily operation and maintenance

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Building the foundation of a scalable Paradox intrusion system

• Sites requiring robust siren coverage with visual alerts

• Security system upgrades where detectors will be added separately

• Installations requiring tamper-protected, weather-resistant alert systems
