KMG-525-CSS-NK

A hybrid Paradox Magellan MG security kit built for wireless-ready intrusion detection. Equipped with dual-technology motion protection, full intrusion capability, and a foundation for modular expansion—perfect for scalable, reliable deployments.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones, 2 areas, and a flexible alarm architecture

• Dual microwave + infrared 525DM detectors for precise motion detection with anti-masking

• Hardwired design for maximum system stability with future wireless integration

• Robust alarm response via top-hat piezo siren plus combo siren-strobe unit

🛠 Technical Specifications

• Model: KMG-525-CSS-NK (MG5050+ hybrid control kit)

• Transceiver: MG5050+ (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)

• Detectors: 2 × 525DM (Dual-tech with microwave anti-mask)

• Keypad: None included (No-KPD)

• Power: 16 VAC/1.5 A plug pack and 12 VDC/7 Ah AGM battery

• Alerts: WP08 top hat piezo siren and WP16 combo siren/strobe

• Enclosure: 2780000033 metal box with tamper switch (2502302000) and bracket (2781030000)

• Connectivity: LC0280 telephone lead included (optional IP150+ or IP180+ Ethernet options avaiable)

• Documentation: MGUM user manual (MG series)

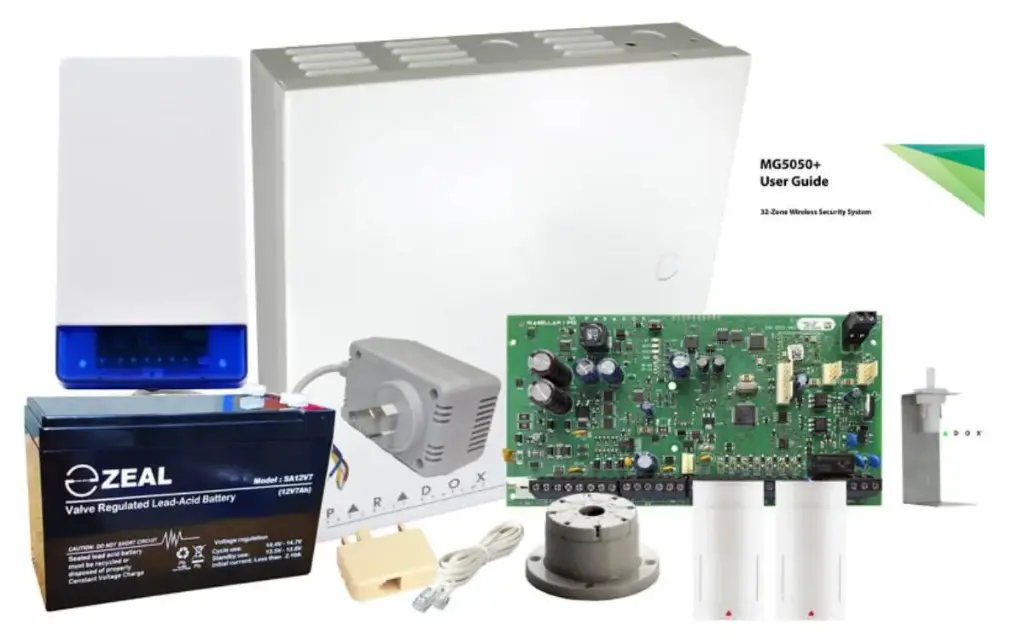

📦 Kit Includes

• 1 × MG5050+ Magellan 32-Zone Wireless Transceiver Control Panel

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2M Telephone Cord

• 1 × SA12V7 12VDC/7Ah AGM Battery (L:151 × W:65 × H:100mm)

• 1 × 16VAC1500MPS/6 16VAC/1.5A Plug Pack Power Supply – 3 Wires

• 1 × WP08 Top Hat Piezo, 90mA, 105dB

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 2 × 525DM Microwave + Infrared Motion Detectors with Anti-Mask

• 1 × MGUM User Manual (EN) Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all kit components

• System programming and wireless configuration for MG devices

• Integration with existing security infrastructure

• Full operational testing, commissioning, and handover training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Hybrid or wireless-ready installations needing flexibility with reliable motion detection

• Mid-sized commercial or residential projects requiring scalable, tamper-resilient intrusion solutions

• Environments where a mix of wired robustness and future wireless expansion is essential
