KMG-DG75-SCO-K10V

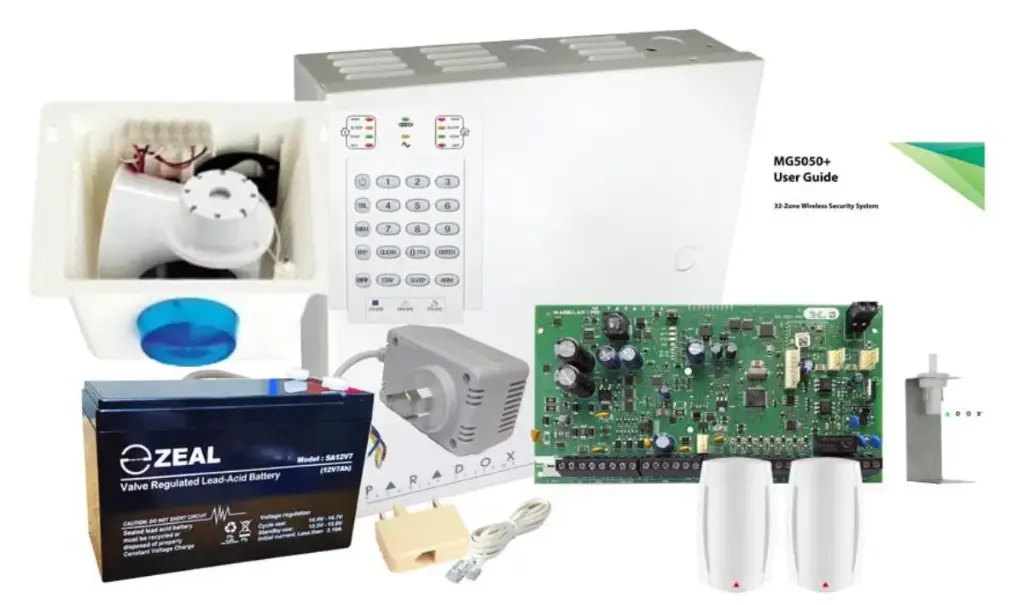

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, K10V LED keypad, DG75 dual-element PIR motion detectors, and a weather-resistant siren/strobe kit. Ideal for pet-friendly installations requiring robust outdoor alerts and simple keypad control.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas

• K10V LED keypad with 10-zone display for quick, straightforward system operation

• DG75 dual-element PIR motion detectors with pet immunity up to 40 kg

• Outdoor siren/strobe kit for high-impact intrusion alerts

• Hybrid design—wired reliability with the flexibility of wireless expansion

🛠 Technical Specifications

• Model: KMG-DG75-SCO-K10V (MG5050+ hybrid control kit with K10V keypad and DG75 detectors)

• Control Panel: MG5050+ (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)

• Keypad: K10V (LED keypad, 10-zone display)

• Detectors: 2 × DG75 (Dual-element PIR motion detectors, pet immune up to 40 kg)

• Power: 16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SA12V7 (12 VDC/7 Ah AGM battery)

• Alerts: SC03/CO/TOP (Siren cover kit with blue strobe, combo siren/speaker, tamper switch, UV stabilised cover, pre-wired) and WP08 (Top Hat Piezo Siren, 105 dB)

• Enclosure: 2780000033 metal box with tamper switch 2502302000 and bracket 2781030000

• Connectivity: LC0280 telephone lead with 606 socket, 2 m cord

• Documentation: MGSPU user manual MG series

📦 Kit Includes

• 1 × MG5050+ Magellan 32-Zone Wireless Transceiver Control Panel

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2 m cord

• 1 × SA12V7 12 VDC/7 Ah AGM Battery (151 × 65 × 100 mm)

• 1 × 16VAC1500MPS/6 16 VAC/1.5 A Plug Pack Power Supply

• 1 × SC03/CO/TOP Siren Cover Kit (combo siren/speaker, blue strobe, tamper switch, UV stabilised cover, pre-wired)

• 1 × WP08 Top Hat Piezo Siren (90 mA, 105 dB)

• 2 × DG75 Dual-Element PIR Motion Detectors, Pet Immune (up to 40 kg)

• 1 × K10V LED Keypad (10-zone display)

• 1 × MGSPU User Manual (EN)

  Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all kit components

• Keypad installation and configuration

• System programming and wireless setup for MG devices

• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution., or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Homes and small businesses with pets requiring false-alarm prevention

• Properties needing strong outdoor audible and visual alerts

• Hybrid installations combining wired dependability with wireless expansion options
