KMG-DG75-SCO-NK

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, DG75 dual-element PIR motion detectors, and a heavy-duty outdoor siren/strobe kit. Built for pet-friendly protection and powerful visual and audible intrusion deterrence.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas
• DG75 dual-element PIR motion detectors with pet immunity up to 40 kg
• Outdoor siren/strobe kit with UV stabilised cover and tamper protection
• Hybrid design—wired stability with wireless expansion capability
• Suitable for residential and small commercial applications

🛠 Technical Specifications

• Model: KMG-DG75-SCO-NK (MG5050+ hybrid control kit with DG75 detectors)
• Control Panel: MG5050+-V74 (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)
• Detectors: 2 × DG75 (Dual-element PIR motion detectors, pet immune up to 40 kg)
• Power: 16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SA12V7 (12 VDC/7 Ah AGM battery)
• Alerts: SC03/CO/TOP (Siren cover kit with blue strobe, combo siren/speaker, tamper switch, UV stabilised cover, pre-wired) and WP08 (Top Hat Piezo Siren, 105 dB)
• Enclosure: 2780000033 metal box with tamper switch 2502302000 and bracket 2781030000
• Connectivity: LC0280 telephone lead with 606 socket, 2 m cord
• Documentation: MGSPU user manual MG/SP series

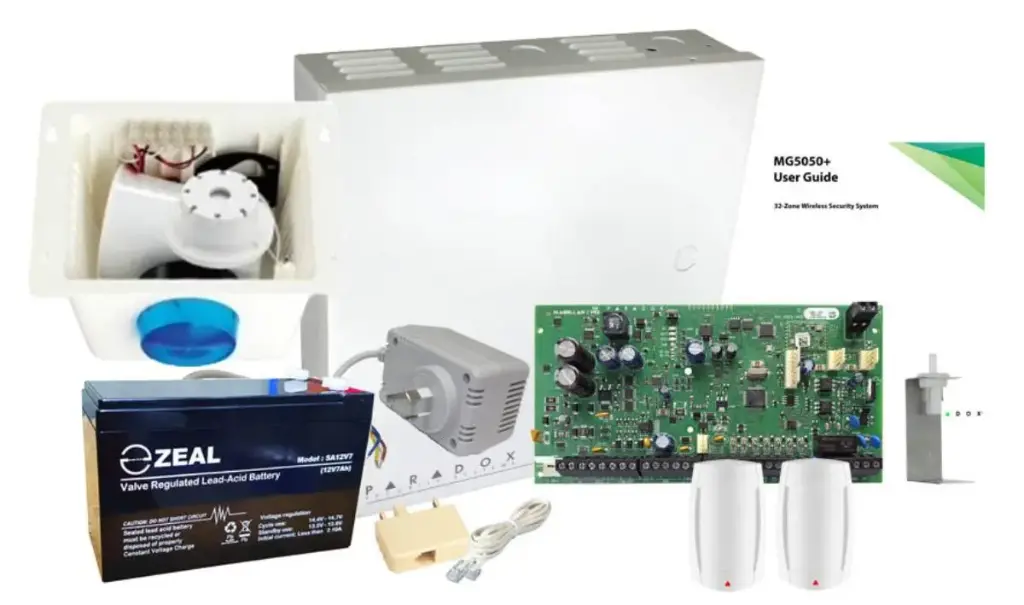

📦 Kit Includes

• 1 × MG5050+-V74 Magellan 32-Zone Wireless Transceiver Control Panel
• 1 × 2780000033-P2C Metal Box 11x11x3
• 1 × 2502302000-P2C Tamper Switch
• 1 × 2781030000-P2C Tamper Bracket 3INCH
• 1 × LC0280 telephone Lead with 606 Socket and 2 m cord
• 1 × SPBSA12V7 12 VDC/7 Ah AGM Battery (151 × 65 × 100 mm)
• 1 × 16VAC1500MPS/6 16 VAC/1.5 A Plug Pack Power Supply
• 1 × SC03/CO/TOP Siren Cover Kit (combo siren/speaker, blue strobe, tamper switch, UV stabilised cover, pre-wired)
• 1 × WP08 Top Hat Piezo Siren (90 mA, 105 dB)
• 2 × DG75-P2C Dual-Element PIR Motion Detectors, Pet Immune (up to 40 kg)
• 1 × MGSPU-G2K User Manual (EN)
  Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all kit components
• Detector installation and configuration
• System programming and wireless setup for MG devices
• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Homes and small businesses with pets needing false-alarm reduction
• Properties requiring robust outdoor audible and visual deterrents
• Hybrid installations with potential for future wireless expansion
