KMG-NV5-CSS-K32L

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, K32LCD+ LED keypad, NV5 compact PIR motion detectors, and robust indoor/outdoor sirens. Perfect for users who want a clear LED display and reliable detection performance in both residential and small commercial settings.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas
• K32LCD+ LED keypad with 10-zone display for intuitive arming/disarming
• NV5 compact high-performance PIR motion detectors for precise detection
• Indoor and outdoor sirens for strong audible alerts
• Hybrid system—wired reliability with wireless expansion flexibility

🛠 Technical Specifications

• Model: KMG-NV5-CSS-K32L (MG5050+ hybrid control kit with K32LCD+ keypad and NV5 detectors)
• Control Panel: MG5050+ (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)
• Keypad: K32LCD+ (LED keypad, 10-zone display)
• Detectors: 2 × NV5 (Compact high-performance PIR motion detectors)
• Power: TEL16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SA12V7 (12 VDC/7 Ah AGM battery)
• Alerts: WP08 (Top Hat Piezo Siren, 105 dB) and WP16 (Combo Siren Strobe Flat Cover EOLR)
• Enclosure: 2780000033 metal box with tamper switch (2502302000) and bracket (2781030000)
• Connectivity: C0280 telephone lead with 606 socket, 2 m cord
• Documentation: MGSPU user manual (MG/SP series)

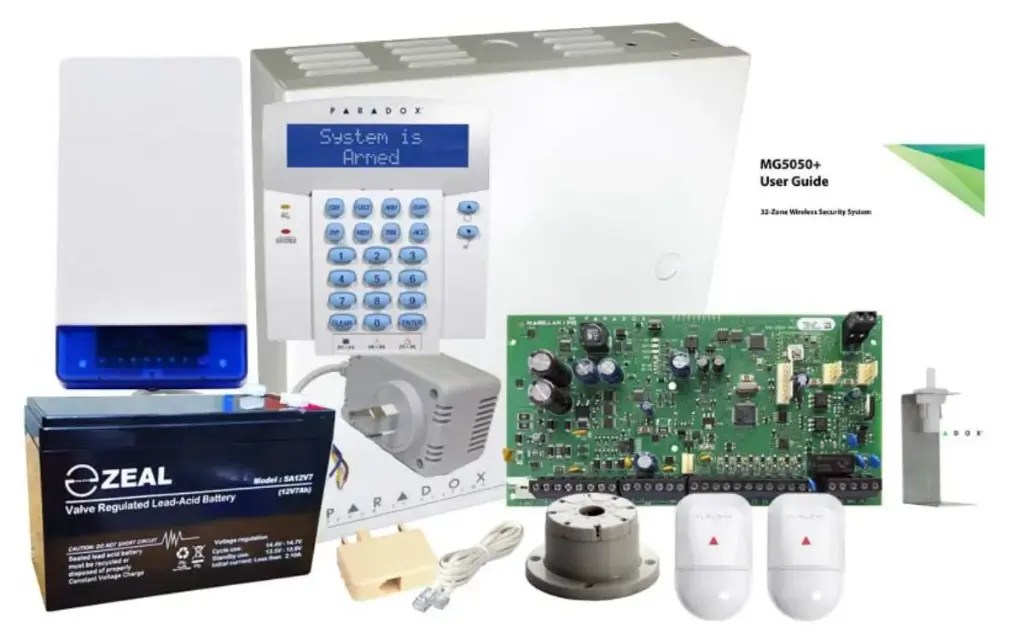

📦 Kit Includes

• 1 × MG5050+ Magellan 32-Zone Wireless Transceiver Control Panel
• 1 × 2780000033 Metal Box 11x11x3
• 1 × 2502302000 Tamper Switch
• 1 × 2781030000 Tamper Bracket 3INCH
• 1 × LC0280 Telephone Lead with 606 Socket and 2 m cord
• 1 × SA12V7 12 VDC/7 Ah AGM Battery (151 × 65 × 100 mm)
• 1 × 16VAC1500MPS/6 16 VAC/1.5 A Plug Pack Power Supply
• 1 × WP08 Top Hat Piezo Siren (90 mA, 105 dB)
• 1 × WP16 Combo Siren Strobe Flat Cover EOLR
• 2 × NV5 Compact PIR Motion Detectors
• 1 × K32L LED Keypad (10-zone display)
• 1 × MGSPU User Manual (EN) Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all kit components
• Keypad installation and configuration
• System programming and wireless setup for MG devices
• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Residential and light commercial premises requiring precise detection
• Users preferring a simple LED display for status and control
• Systems needing both indoor and outdoor siren alerts
