KMG-NV5-CSS-NK

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, NV5 compact PIR motion detectors, and dual indoor/outdoor sirens. Designed for dependable wired protection with compact detectors that deliver precise detection in residential and small commercial environments.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas

• NV5 compact high-performance PIR motion detectors for accurate detection

• Indoor piezo siren and outdoor siren/strobe for clear intrusion alerts

• Hybrid wired reliability with optional wireless expansion capability

• Flexible design for homes and small business installations

🛠 Technical Specifications

• Model: KMG-NV5-CSS-NK (MG5050+ hybrid control kit with NV5 detectors)

• Control Panel: MG5050+-V74 (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)

• Detectors: 2 × NV5-P2C (Compact high-performance PIR motion detectors)

• Power: 16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SA12V7 (12 VDC/7 Ah AGM battery)

• Alerts: WP08 (Top Hat Piezo Siren, 105 dB) and DFMWP16 (Combo Siren Strobe Flat Cover EOLR)

• Enclosure: 2780000033 metal box with tamper switch 2502302000 and bracket 2781030000

• Connectivity: LC0280 telephone lead with 606 socket, 2 m cord

• Documentation: MGSPU user manual MG/SP series

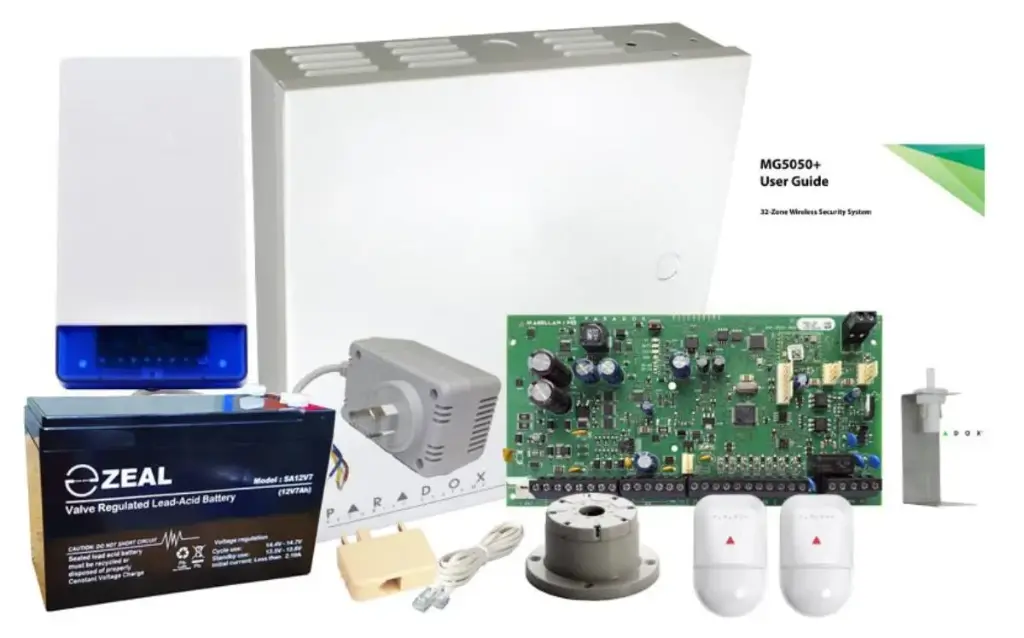

📦 Kit Includes

• 1 × MG5050+ Magellan 32-Zone Wireless Transceiver Control Panel

• 1 × 2780000033 Metal Box 11x11x3

• 1 × 2502302000 Tamper Switch

• 1 × 2781030000 Tamper Bracket 3INCH

• 1 × LC0280 Telephone Lead with 606 Socket and 2 m cord

• 1 × SA12V7 12 VDC/7 Ah AGM Battery (151 × 65 × 100 mm)

• 1 × 16VAC1500MPS/6 16 VAC/1.5 A Plug Pack Power Supply

• 1 × WP08 Top Hat Piezo Siren (90 mA, 105 dB)

• 1 × WP16 Combo Siren Strobe Flat Cover EOLR

• 2 × NV5 Compact PIR Motion Detectors

• 1 × MGSPU User Manual (EN)

  Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all kit components

• Detector installation and configuration

• System programming and wireless setup for MG devices

• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution, or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Homes and offices needing compact, precise PIR motion detection

• Installations requiring both indoor and outdoor audible alerts

• Hybrid wired setups with the option for future wireless expansion
