KMG-NV5-SCO-TM50

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, TM50W white touchscreen keypad, NV5 compact PIR motion detectors, and a combined outdoor siren/speaker unit with indoor piezo siren. Designed for users who want intuitive touchscreen control paired with reliable detection and powerful alerts.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas

• TM50W 5-inch full-colour touchscreen keypad for easy, user-friendly control

• NV5 compact high-performance PIR motion detectors for accurate detection

• Combined siren/speaker with strobe for outdoor alerts and top hat piezo siren for indoor coverage

• Hybrid wired reliability with wireless expansion capabilities

🛠 Technical Specifications

• Model: KMG-NV5-SCO-TM50W (MG5050+ hybrid control kit with TM50W touchscreen, NV5 detectors, and outdoor siren/speaker combo)

• Control Panel: PRXMG5050+-V74 (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)

• Keypad: PRXTM50W-P2C (5-inch white full-colour touchscreen keypad)

• Detectors: 2 × PRXNV5-P2C (Compact high-performance PIR motion detectors)

• Power: TEL16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SPBSA12V7 (12 VDC/7 Ah AGM battery)

• Alerts: DFMSC03/CO/TOP (Siren cover kit with blue strobe, combo siren/speaker, tamper switch, UV stabilised cover, and pre-wired indoor top hat piezo)

• Enclosure: PRX2780000033-P2C metal box with tamper switch (PRX2502302000-P2C) and bracket (PRX2781030000-P2C)

• Connectivity: TELLC0280 telephone lead with 606 socket, 2 m cord

• Documentation: PRXMGSPU-G2K user manual (MG/SP series)

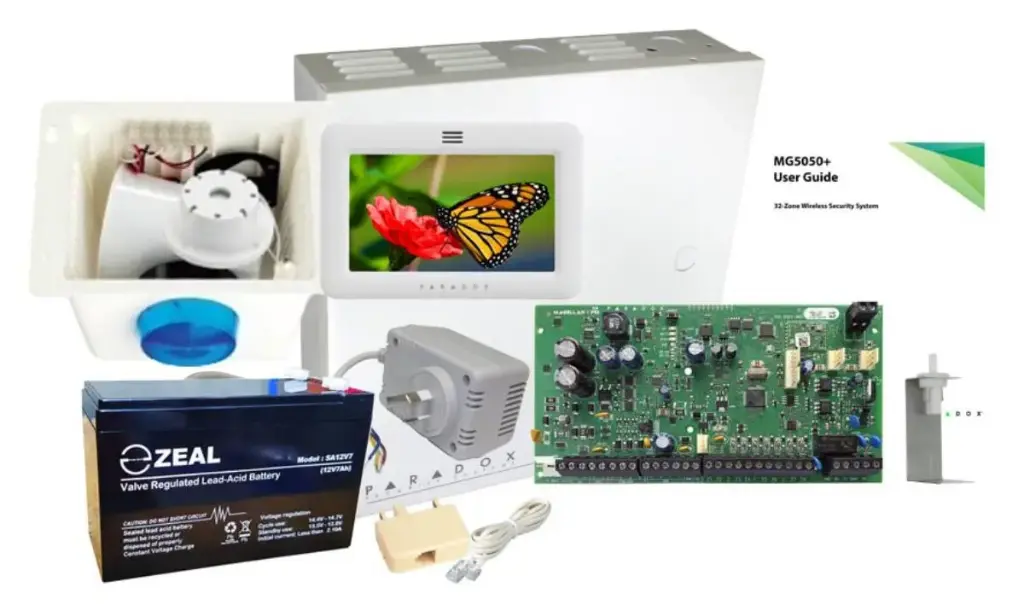

📦 Kit Includes

• 1 × PRXMG5050+-V74 Magellan 32-Zone Wireless Transceiver Control Panel

• 1 × PRX2780000033-P2C Metal Box 11x11x3

• 1 × PRX2502302000-P2C Tamper Switch

• 1 × PRX2781030000-P2C Tamper Bracket 3INCH

• 1 × TELLC0280 Telephone Lead with 606 Socket and 2 m cord

• 1 × SPBSA12V7 12 VDC/7 Ah AGM Battery (151 × 65 × 100 mm)

• 1 × TEL16VAC1500MPS/6 16 VAC/1.5 A Plug Pack Power Supply

• 1 × DFMSC03/CO/TOP Siren Kit with Blue Strobe, Combo Siren/Speaker, Tamper Switch, UV Stabilised Cover, and Indoor Top Hat Piezo (Pre-Wired)

• 2 × PRXNV5-P2C Compact PIR Motion Detectors

• 1 × PRXTM50W-P2C 5-inch White Touchscreen Keypad

• 1 × PRXMGSPU-G2K User Manual (EN)

  Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• On-site mounting and wiring of all kit components

• Keypad installation and configuration

• Siren/strobe mounting and testing

• System programming and wireless setup for MG devices

• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution.

Or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Homes or businesses that want easy touchscreen control with high clarity

• Installations requiring both indoor and outdoor audible alerts

• Hybrid systems with future wireless expansion options
