KMG-PMD2P-SR230NK

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, PMD2P wireless PIR motion detectors, and the SR230 outdoor wireless siren with blue strobe. Designed for robust perimeter alerting and advanced wireless detection, this kit is perfect for properties that require a strong visual and audible deterrent without a wired keypad.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas

• PMD2P wireless PIR motion detectors with pet immunity to minimise false alarms

• SR230 outdoor wireless siren with blue strobe for perimeter deterrence and alerting

• Hybrid wired reliability with wireless detection and siren integration

• Ideal for installations where running cables is impractical or undesirable

🛠 Technical Specifications

• Model: KMG-PMD2P-SR230NK (MG5050+ hybrid control kit with PMD2P detectors, SR230 wireless siren, and no keypad)

• Control Panel: PRXMG5050+-V74 (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)

• Detectors: 2 × PRXPMD2P-P2C (Wireless pet-immune PIR motion detectors)

• Alerts: PRXSR230-P2C (Wireless outdoor siren with blue strobe light)

• Power: TEL16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SPBSA12V7 (12 VDC/7 Ah AGM battery)

• Enclosure: PRX2780000033-P2C metal box with tamper switch (PRX2502302000-P2C) and bracket (PRX2781030000-P2C)

• Connectivity: TELLC0280 telephone lead with 606 socket, 2 m cord

• Documentation: PRXMGSPU-G2K user manual (MG/SP series)

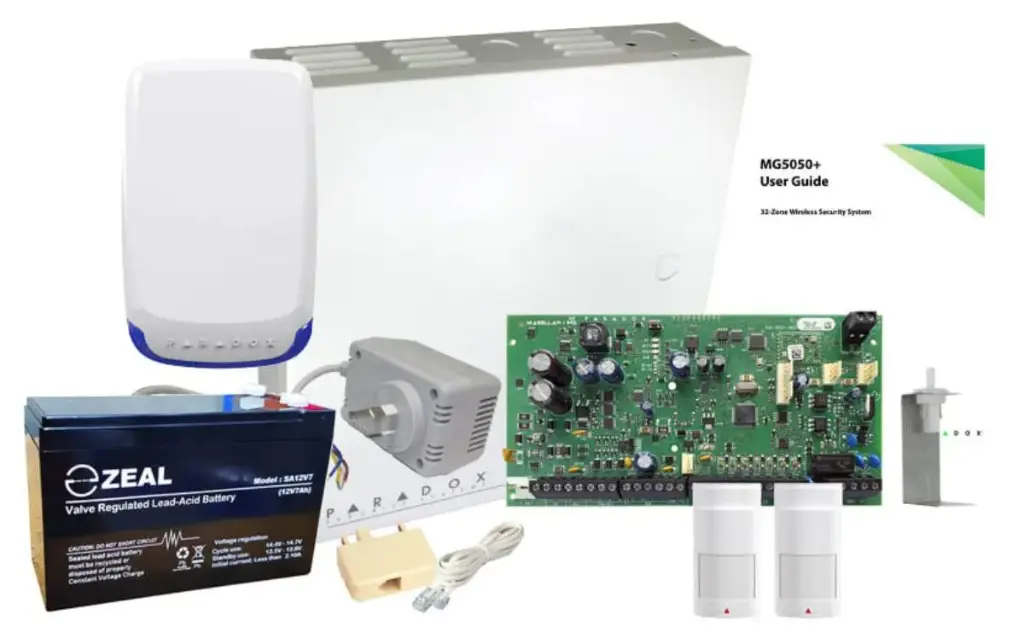

📦 Kit Includes

• 1 × PRXMG5050+-V74 Magellan 32-Zone Wireless Transceiver Control Panel

• 1 × PRX2780000033-P2C Metal Box 11x11x3

• 1 × PRX2502302000-P2C Tamper Switch

• 1 × PRX2781030000-P2C Tamper Bracket 3INCH

• 1 × TELLC0280 Telephone Lead with 606 Socket and 2 m cord

• 1 × SPBSA12V7 12 VDC/7 Ah AGM Battery (151 × 65 × 100 mm)

• 1 × TEL16VAC1500MPS/6 16 VAC/1.5 A Plug Pack Power Supply

• 1 × PRXSR230-P2C Wireless Outdoor Siren with Blue Strobe

• 2 × PRXPMD2P-P2C Wireless Pet-Immune PIR Motion Detectors

• 1 × PRXMGSPU-G2K User Manual (EN)

  Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• Mounting and wiring of enclosure and power components

• Wireless pairing and configuration of detectors and siren

• System programming for optimal coverage and alert response

• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution.

Or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Homes and businesses needing outdoor siren deterrence with strong visual alerting

• Installations requiring wireless detection and pet immunity

• Locations where cable runs for sirens and detectors are impractical
