KMG-SCO-K32L

A Paradox Magellan MG hybrid security kit featuring the MG5050+ wireless transceiver control panel, full siren package, and a K32L LED keypad. This kit provides clear zone status indicators, simple operation, and strong audible/visual deterrents—perfect for users who want reliable control with a larger LED display.

🔑 Key Features

• MG5050+ wireless transceiver control panel—supports up to 32 zones and 2 areas

• K32L LED keypad with full zone status display for enhanced user awareness

• Complete siren package with outdoor combo siren/strobe and indoor piezo siren

• Hybrid wired stability with wireless expansion capability

• Designed for easy arming, disarming, and zone monitoring

🛠 Technical Specifications

• Model: KMG-SCO-K32L (MG5050+ hybrid control kit with sirens and K32L keypad)

• Control Panel: PRXMG5050+-V74 (Magellan 32-Zone Wireless Transceiver; 433 MHz, regular antenna)

• Keypad: PRXK32L (LED keypad with full zone display and StayD support)

• Alerts: DFMSC03/CO/TOP (Siren cover kit with blue strobe, combo siren/speaker, tamper switch, UV stabilised cover, and pre-wired indoor top hat piezo)

• Power: TEL16VAC1500MPS/6 (16 VAC, 1.5 A plug pack) and SPBSA12V7 (12 VDC/7 Ah AGM battery)

• Enclosure: PRX2780000033-P2C metal box with tamper switch (PRX2502302000-P2C) and bracket (PRX2781030000-P2C)

• Connectivity: TELLC0280 telephone lead with 606 socket, 2 m cord

• Documentation: PRXMGSPU-G2K user manual (MG/SP series)

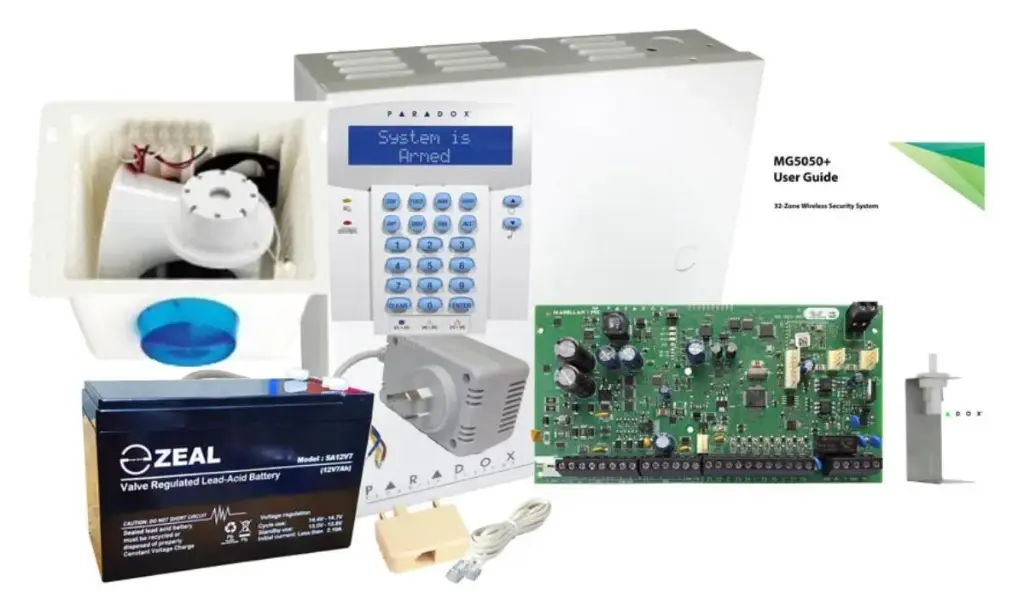

📦 Kit Includes

• 1 × PRXMG5050+-V74 Magellan 32-Zone Wireless Transceiver Control Panel

• 1 × PRXK32L LED Keypad with Full Zone Display

• 1 × PRX2780000033-P2C Metal Box 11x11x3

• 1 × PRX2502302000-P2C Tamper Switch

• 1 × PRX2781030000-P2C Tamper Bracket 3INCH

• 1 × TELLC0280 Telephone Lead with 606 Socket and 2 m cord

• 1 × SPBSA12V7 12 VDC/7 Ah AGM Battery (151 × 65 × 100 mm)

• 1 × TEL16VAC1500MPS/6 16 VAC/1.5 A Plug Pack Power Supply

• 1 × DFMSC03/CO/TOP Siren Kit with Blue Strobe, Combo Siren/Speaker, Tamper Switch, UV Stabilised Cover, and Indoor Top Hat Piezo (Pre-Wired)

• 1 × PRXMGSPU-G2K User Manual (EN)

  Supports up to 32 Access Control Doors (ACM12 per door) and 254 BUS Modules

🛠 Professional Installation Service Available

Our certified technicians can supply, install, and fully configure your Paradox system. Installation includes:

• Mounting and wiring of enclosure, power supply, keypad, and sirens

• Programming for zone naming, user codes, and system functions

• Full operational testing, commissioning, and user training

Contact us to arrange installation at the time of purchase for a complete, ready-to-use security solution.

Or add the Alarm Installation Service at checkout for 10% off kit orders.

🎯 Best Used For

• Users who prefer visual LED zone indication and simple operation

• Homes and small businesses that require strong audible/visual deterrents

• Security setups where zone-specific awareness is important
