KSP6-525-SCO-NK

A complete security package built around the Spectra SP6000 control panel, expandable up to 32 zones. This kit includes motion detectors, sirens, tamper protection, power supply, battery backup, and user documentation — providing everything required for a reliable security installation.

🔑 Key Features

• Spectra SP6000 panel with StayD functionality, expandable from 8 to 32 zones

• Integrated bell relay and 4 programmable outputs (PGM)

• Includes advanced microwave and infrared detectors with anti-mask technology

• Backup battery and power supply included for uninterrupted operation

• Pre-bundled with sirens, strobe, tamper switch, and enclosure for complete installation

🛠 Technical Specifications

• Control Panel: Spectra SP6000, 8 zones expandable to 32

• Housing: 11x11x3 metal enclosure with tamper switch and bracket

• Detectors: 2 × 525DM dual technology motion detectors (MW + IR with anti-mask)

• Power Supply: 16VAC, 1.5A plug pack (3-wire)

• Battery: 12VDC, 7Ah AGM (151 × 65 × 100MM)

• Audible Alerts: WP08 piezo siren (105dB), SC03/CO siren/strobe with cover

• Connectivity: Telephone lead with 606 socket and 2M cord

• Documentation: User manual for MG/SP series (English)

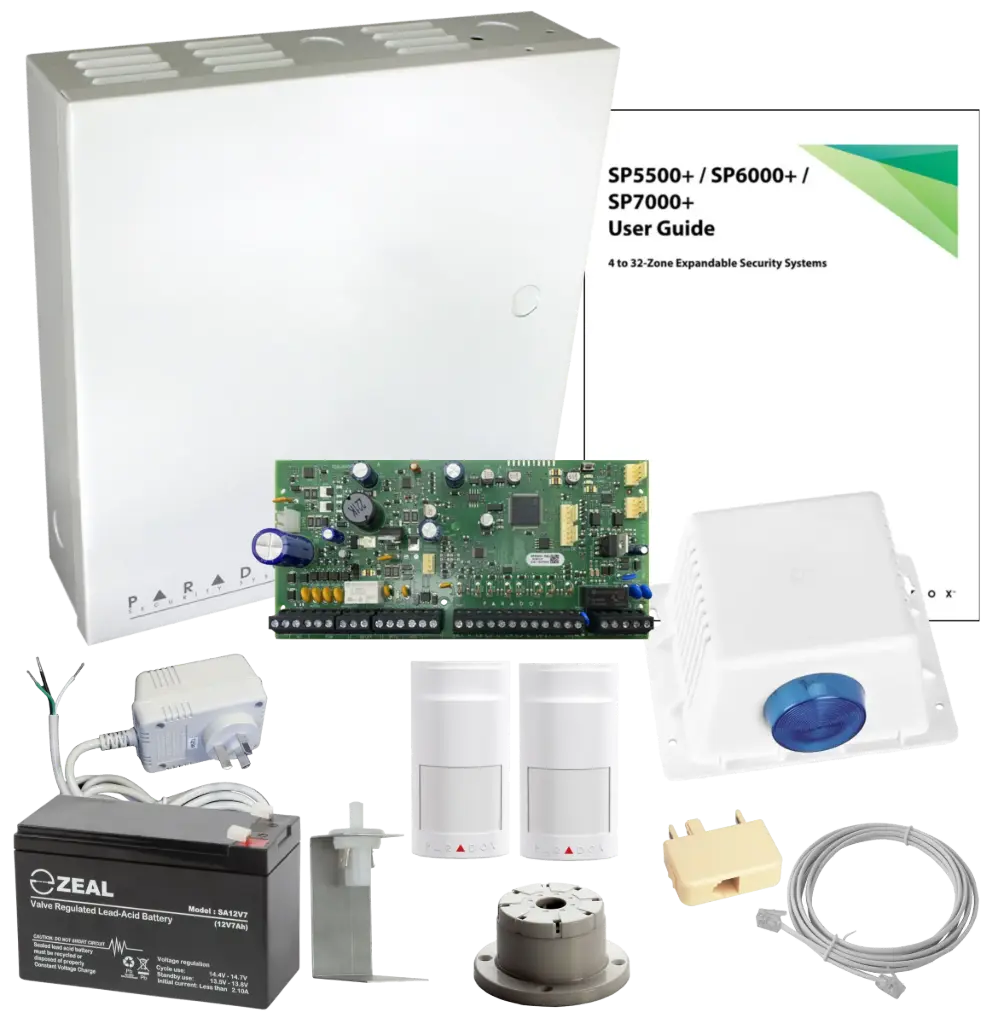

📦 Package Includes

• 1 × Spectra SP6000 control panel (with StayD and 4PGM, no built-in box)

• 1 × Metal box 11x11x3 (2780000033)

• 1 × Tamper switch (2502302000)

• 1 × Tamper bracket 3INCH (2781030000)

• 1 × Telephone lead with 606 socket and 2M cord (LC0280)

• 1 × 12VDC/7Ah AGM battery (SA12V7)

• 1 × 16VAC/1.5A plug pack power supply (16VAC1500MPS/6)

• 1 × Top hat piezo siren, 90mA, 105dB (WP08)

• 1 × Siren Cover Kit with Blue Strobe, Combo Siren/Speaker, Tamper Switch, UV Stabilized Cover (Pre-Wired) and Indoor Top Hat Piezo (SC03/CO/TOP)

• 2 × Dual microwave & infrared motion detectors with anti-mask (525DM)

• 1 × User manual SP Series (MSPU)

🎯 Best Used For

• Medium to large residential installations

• Small to mid-sized commercial offices

• Security setups requiring both indoor motion detection and external sirens

• Installers seeking a bundled, ready-to-deploy alarm kit
