KSP6-DG65-CSS-NK

🔑 Key Features

• Spectra SP6000 panel with 8 zones expandable up to 32

• Includes DG65 dual-element PIR motion detectors for accurate detection

• Integrated bell relay and 4 programmable outputs (PGM)

• Supplied with backup battery and regulated power supply

• Equipped with siren and strobe for strong audible/visual alerts

• Professional-grade tamper-protected metal enclosure

🛠 Technical Specifications

• Control Panel: Spectra SP6000 (8 zones, expandable to 32)

• Detectors: DG65 dual-element PIR sensors for stable detection

• Housing: 11x11x3 metal box with tamper switch and bracket

• Battery: 12VDC, 7Ah AGM rechargeable sealed type

• Power Supply: 16VAC, 1.5A plug pack (3-wire)

• Audible Alerts: WP08 piezo siren (105dB), WP16 combo siren strobe (flat cover, EOLR)

• Connectivity: Telephone lead with 606 socket and 2M cord

• Documentation: MG/SP Series user manual (English)

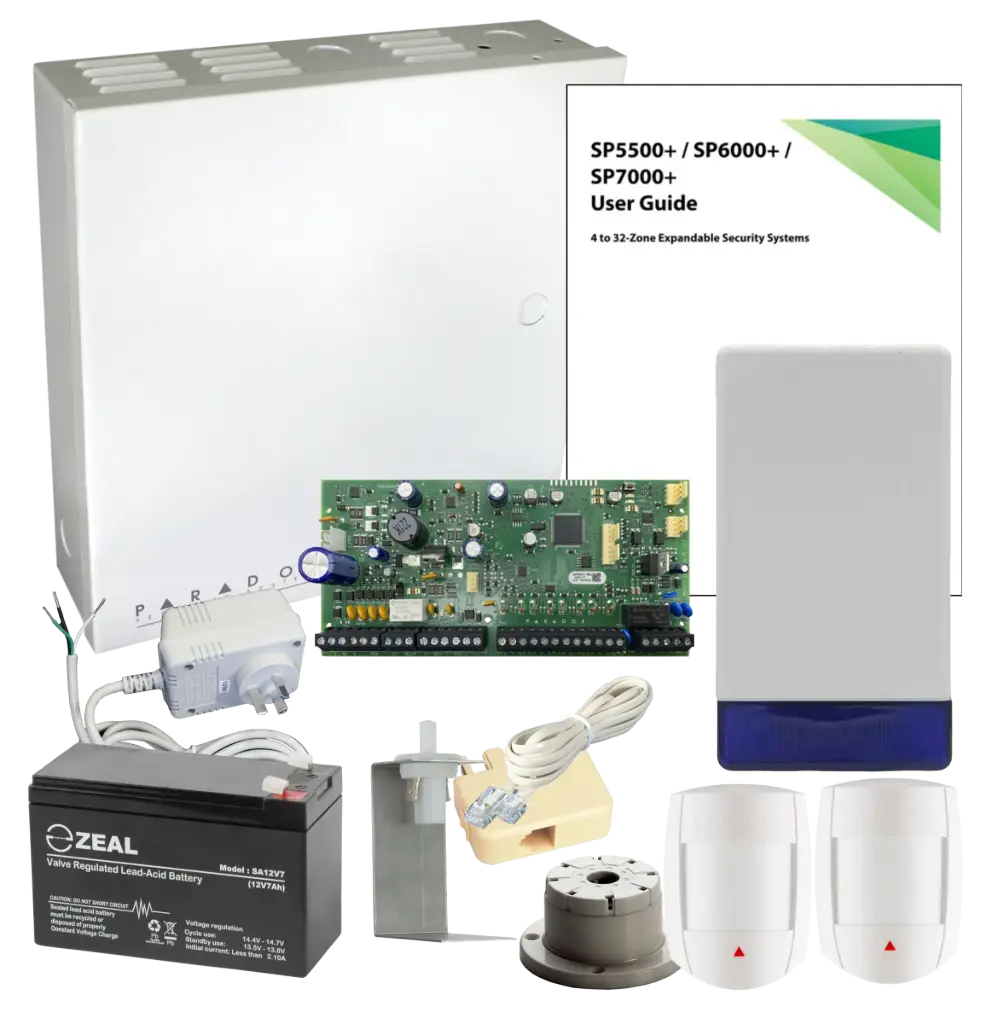

📦 Package Includes

• 1 × Spectra SP6000 control panel (StayD, 4 PGM, no built-in box)

• 1 × Metal box 11x11x3 (2780000033)

• 1 × Tamper switch (2502302000)

• 1 × Tamper bracket 3INCH (2781030000)

• 1 × 12VDC/7Ah AGM battery (SA12V7)

• 1 × 16VAC/1.5A plug pack power supply (16VAC1500MPS/6)

• 1 × WP08 top hat piezo siren, 90mA, 105dB

• 1 × WP16 combo siren strobe with flat cover (EOLR)

• 2 × DG65 dual-element PIR motion detectors

• 1 × Telephone lead with 606 socket and 2M cord (LC0280)

• 1 × MG/SP Series user manual (MSPU)

🎯 Best Used For

• Residential security installations requiring motion detection

• Small to medium commercial premises with reliable PIR coverage

• Installers needing a pre-bundled kit with core components included

• Projects that require expandable systems up to 32 zones
