KSP6-DG75-SCOK32L

A comprehensive alarm system package based on the Spectra SP6000 control panel. This kit includes the K32L LED keypad, DG75 microwave and infrared dual-technology detectors, tamper-protected enclosure, backup battery, power supply, and sirens — delivering a reliable and expandable security solution.

🔑 Key Features

• Spectra SP6000 panel with 8 zones expandable up to 32

• Includes K32L LED keypad with illuminated zone display

• Equipped with DG75 dual-technology microwave & infrared detectors for stable motion detection and reduced false alarms

• Integrated bell relay and 4 programmable outputs (PGM)

• Supplied with rechargeable battery and regulated power supply

• Includes internal piezo and external combo siren/strobe for complete alerts

• Professional metal enclosure with tamper protection

🛠 Technical Specifications

• Control Panel: Spectra SP6000 (8 zones expandable to 32)

• Keypad: K32L LED keypad with zone display

• Detectors: 2 × DG75 dual-technology microwave/infrared PIR sensors

• Housing: 11x11x3 metal box with tamper switch and bracket

• Battery: 12VDC, 7Ah AGM sealed rechargeable

• Power Supply: 16VAC, 1.5A plug pack (3-wire)

• Audible Alerts: WP08 piezo siren (105dB), SCO3/CO combo siren strobe (flat cover, EOLR)

• Connectivity: Telephone lead with 606 socket and 2M cord

• Documentation: MG/SP Series user manual (English)

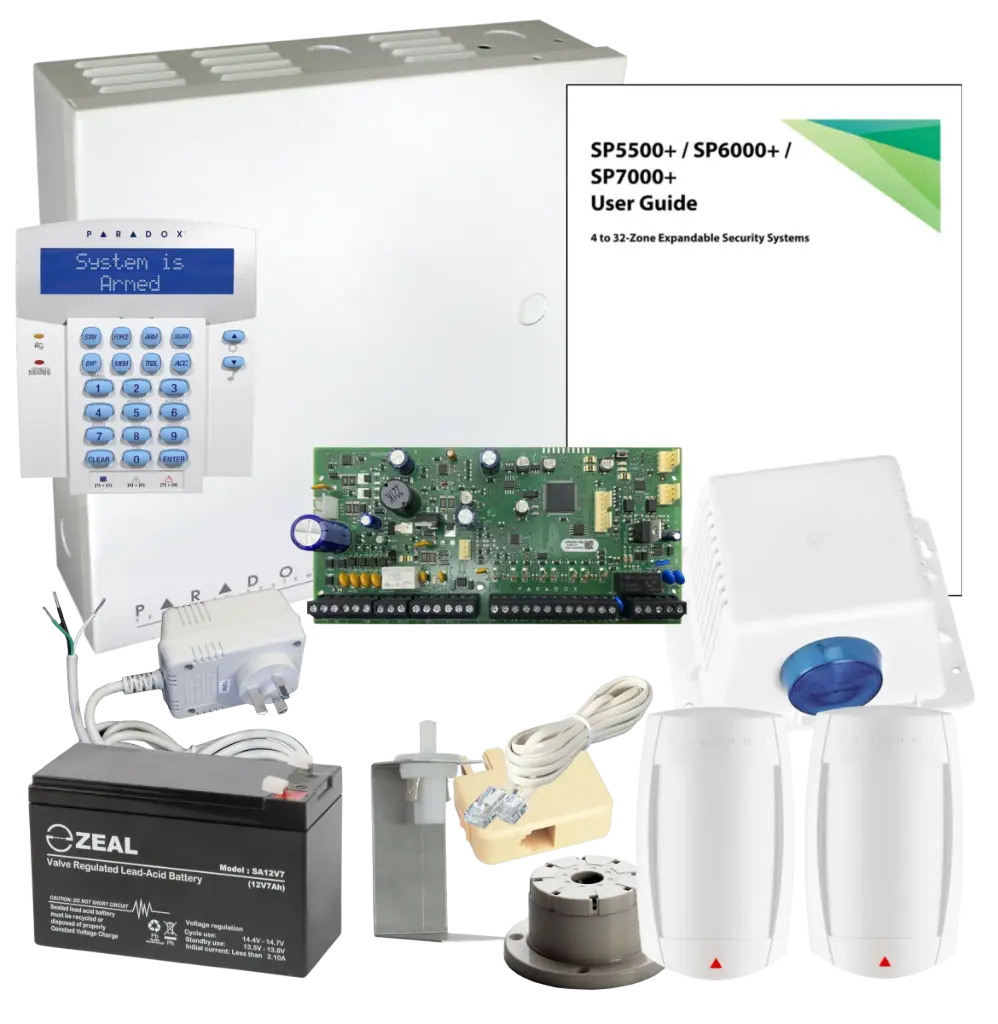

📦 Package Includes

• 1 × Spectra SP6000 control panel (StayD, 4 PGM, no built-in box)

• 1 × K32L LED keypad

• 1 × Metal box 11x11x3 (2780000033)

• 1 × Tamper switch (2502302000)

• 1 × Tamper bracket 3INCH (2781030000)

• 1 × 12VDC/7Ah AGM battery (SA12V7)

• 1 × 16VAC/1.5A plug pack power supply (16VAC1500MPS/6)

• 1 × WP08 top hat piezo siren, 90mA, 105dB

• 1 × SCO3/CO combo siren strobe with flat cover (EOLR)

• 2 × DG75 dual-technology microwave/infrared detectors

• 1 × Telephone lead with 606 socket and 2M cord (LC0280)

• 1 × MG/SP Series user manual (MSPU)

🎯 Best Used For

• Residential systems needing a clear zone display keypad with dual-technology sensors

• Small to medium commercial projects requiring false-alarm resistant detection

• Installers seeking a pre-bundled kit ready for scalable security

• Sites expandable up to 32 zones for future growth
