KSP65-CSS-BASE

A foundation alarm system package centred on the Spectra SP65 control panel. This base kit includes a tamper-protected enclosure, rechargeable backup battery, regulated power supply, and both internal and external sirens — providing the essential hardware for a reliable security installation.

🔑 Key Features

• Spectra SP65 control panel with 8 zones expandable up to 32

• Integrated bell relay and 4 programmable outputs (PGM)

• Includes internal piezo siren and external combo siren/strobe for audible and visual alerts

• Backup sealed AGM battery and regulated power supply included

• Secure, tamper-protected metal enclosure for long-term reliability

• Provides a solid base kit ready for expansion with keypads and detectors

🛠 Technical Specifications

• Control Panel: Spectra SP65 (8 zones expandable to 32)

• Enclosure: 11x11x3 metal box with tamper switch and bracket

• Battery: 12VDC, 7Ah AGM sealed rechargeable

• Power Supply: 16VAC, 1.5A plug pack (3-wire)

• Audible Alerts: WP08 top hat piezo siren (105dB), WP16 combo siren strobe (flat cover, EOLR)

• Documentation: MG/SP Series user manual (English)

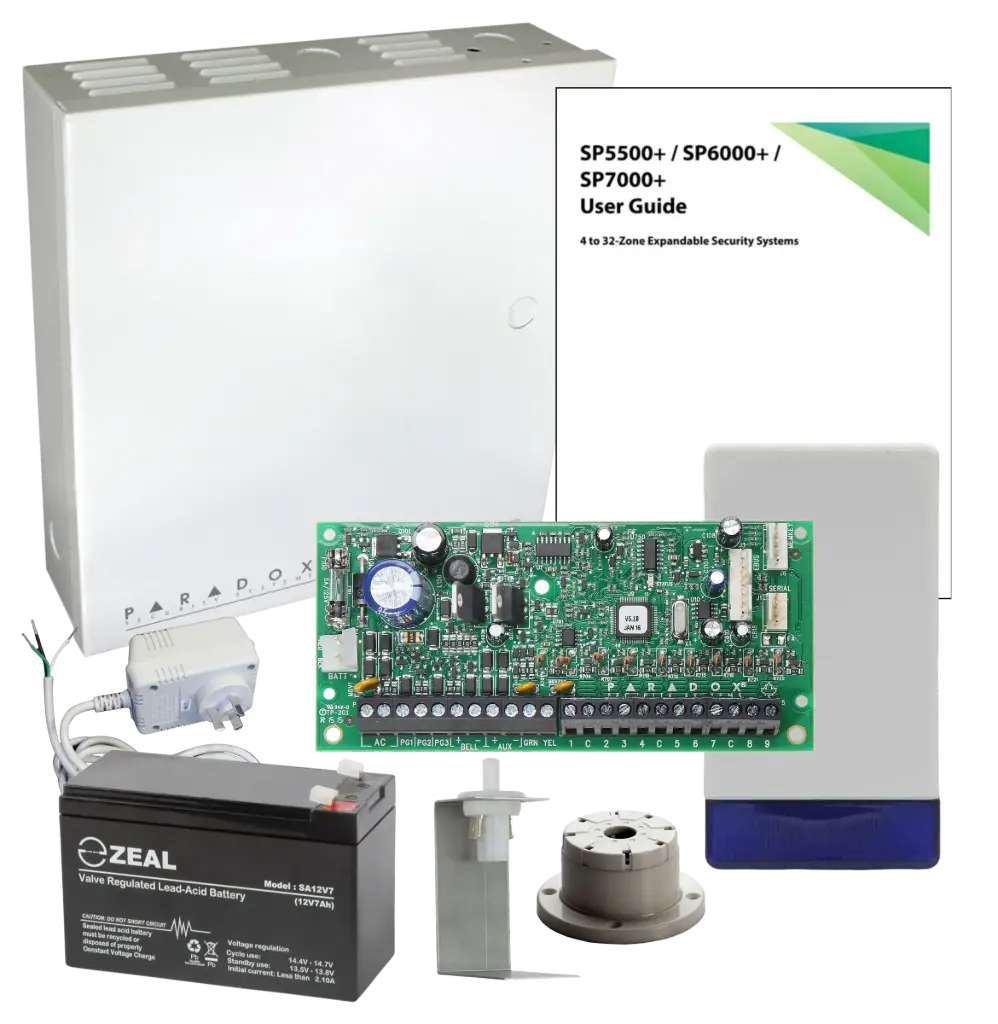

📦 Package Includes

• 1 × Spectra SP65 control panel (StayD, 4 PGM, no built-in box)

• 1 × Metal box 11x11x3 (2780000033)

• 1 × Tamper switch (2502302000)

• 1 × Tamper bracket 3INCH (2781030000)

• 1 × 12VDC/7Ah AGM battery (SA12V7)

• 1 × 16VAC/1.5A plug pack power supply (16VAC1500MPS/6)

• 1 × WP08 top hat piezo siren, 90mA, 105dB

• 1 × WP16 combo siren strobe with flat cover (EOLR)

• 1 × MG/SP Series user manual (MSPU)

🎯 Best Used For

• Residential security systems requiring a scalable base kit

• Small business installations needing siren and strobe alerts

• Installers seeking a foundation package to expand with keypad and detectors

• Security setups expandable to 32 zones
