KSP65-NV5-CSS-K32L
A professional alarm system package based on the Spectra SP65 control panel. This kit includes the K32L LED keypad, NV5 PIR motion detectors, tamper-protected metal enclosure, rechargeable backup battery, regulated power supply, and internal/external sirens — delivering a reliable and expandable security solution.
🔑 Key Features
Spectra SP65 control panel with 8 zones expandable up to 32
Includes K32L LED keypad with illuminated zone display
Supplied with NV5 PIR detectors for accurate motion detection
Internal piezo siren and external combo siren/strobe included
Integrated bell relay and 4 programmable outputs (PGM)
Rechargeable backup battery and regulated power supply included
Professional-grade tamper-protected enclosure
🛠 Technical Specifications
Control Panel: Spectra SP65 (8 zones expandable to 32)
Keypad: K32L LED keypad with zone display indicators
Detectors: 2 × NV5 passive infrared motion detectors
Enclosure: 11x11x3 metal box with tamper switch and bracket
Battery: 12VDC, 7Ah AGM sealed rechargeable
Power Supply: 16VAC, 1.5A plug pack (3-wire)
Audible Alerts: WP08 top hat piezo siren (105dB), WP16 combo siren strobe (flat cover, EOLR)
Documentation: MG/SP Series user manual (English)

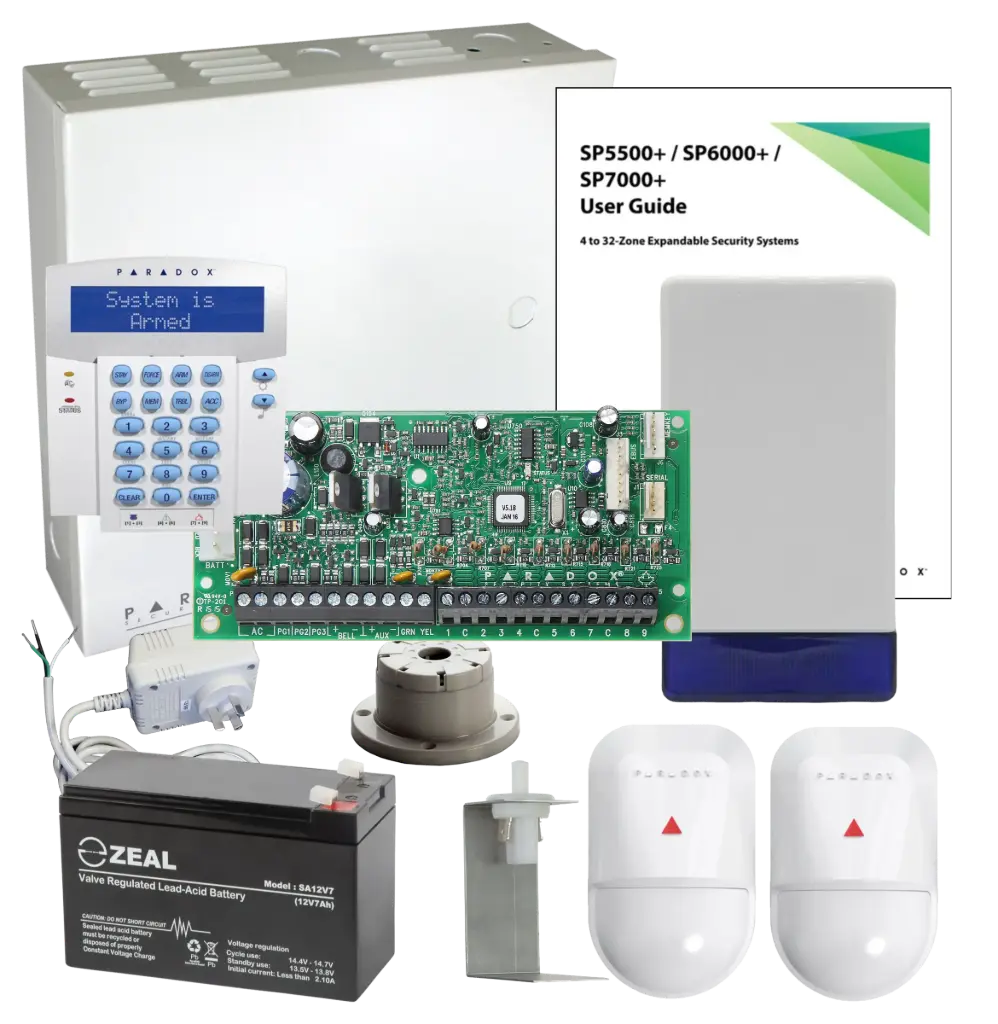

📦 Package Includes
1 × Spectra SP65 control panel (StayD, 4 PGM, no built-in box)
1 × K32L LED keypad
1 × Metal box 11x11x3 (2780000033)
1 × Tamper switch (2502302000)
1 × Tamper bracket 3INCH (2781030000)
1 × 12VDC/7Ah AGM battery (SA12V7)
1 × 16VAC/1.5A plug pack power supply (16VAC1500MPS/6)
1 × WP08 top hat piezo siren, 90mA, 105dB
1 × WP16 combo siren strobe with flat cover (EOLR)
2 × NV5 PIR motion detectors
1 × MG/SP Series user manual (MSPU)
🎯 Best Used For
Residential projects needing LED keypad control with PIR motion detection
Small commercial sites requiring reliable detection and siren alerts
Installers seeking a pre-bundled kit with keypad, detectors, and sirens included
Systems expandable up to 32 zones
Specifications
| Brand | Paradox |
