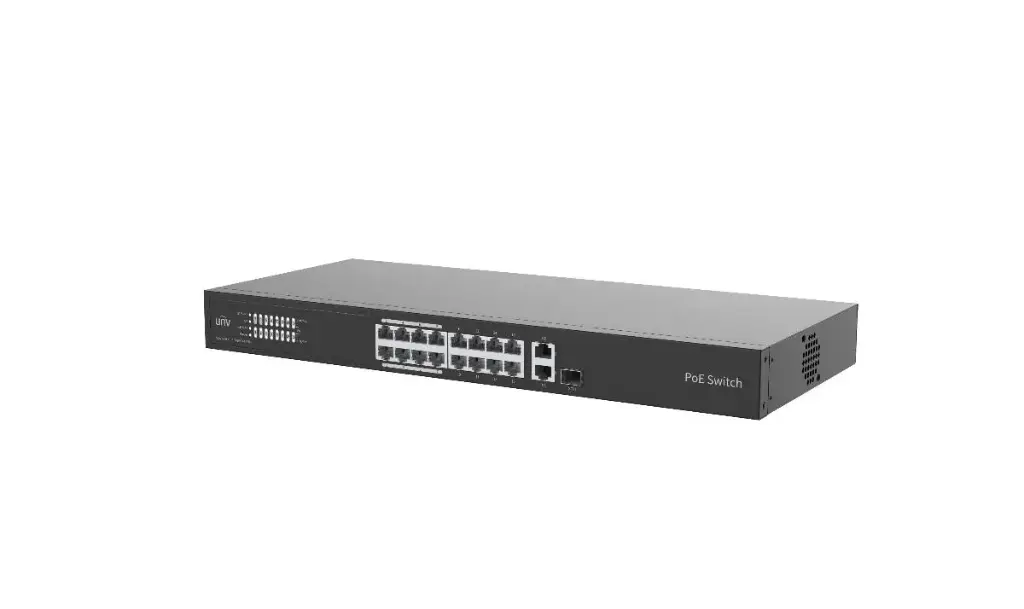

NSW3000-16T1GT1GC-POE-IN
A high-performance managed switch designed for professional surveillance and enterprise networks. With advanced PoE capabilities, gigabit uplinks, and intelligent management features, it delivers reliable connectivity for IP cameras, access points, and critical devices.
🔑 Key Features
16 × 10/100 Mbps PoE ports with IEEE 802.3af/at support.
1 × Gigabit RJ45 uplink and 1 × Gigabit SFP uplink for flexible backbone connections.
Intelligent PoE management, including port scheduling and power prioritisation.
High PoE power budget for cameras and wireless access points.
Enhanced security with VLAN, QoS, and storm control features.
Surge and overload protection for reliable field deployment.
Fanless design for silent and energy-efficient operation.
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | NSW3000-16T1GT1GC-POE-IN |
| Downlink Ports | 16 × 10/100 Mbps PoE (RJ45) |
| Uplink Ports | 1 × Gigabit RJ45, 1 × Gigabit SFP |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding | 5.36 Mpps |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | Up to 200 W total |
| MAC Address Table | 8K entries |
| VLAN Support | 802.1Q VLAN, Port-based VLAN |
| QoS | Priority queues for critical traffic |
| Surge Protection | 4 kV per port |
| Dimensions | Approx. 440 × 200 × 44 mm |
| Weight | ~3.5 kg |
| Installation | Rack-mountable (1U design) |
| Environment | Operating: 0°C to 50°C, 10–90% RH |
📦 Package Includes
1 × Uniview NSW3000-16T1GT1GC-POE-IN Switch
1 × Power cable
1 × Rack-mount kit
1 × Quick installation guide
🎯 Best Used For
Medium to large surveillance systems, powering multiple IP cameras via PoE.
Enterprise networks requiring managed switching with VLAN and QoS.
Wireless deployments, powering APs and bridges.
Silent installations, such as offices and control rooms, with fanless design.
Specifications
| Brand | UniView |
