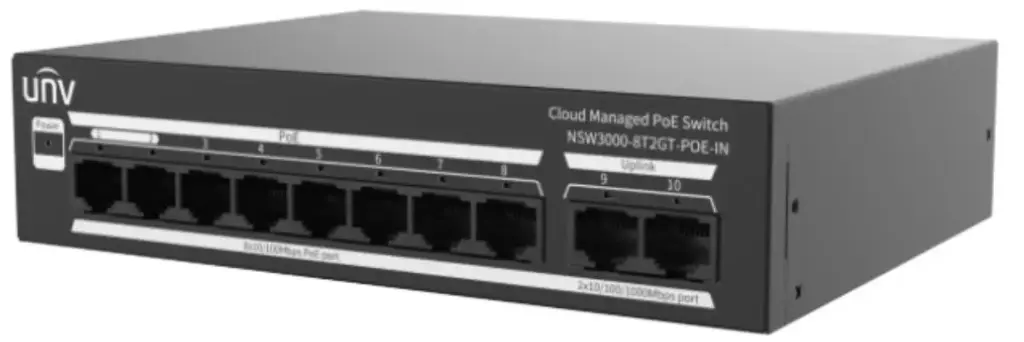

NSW3000-8T2GT-POE-IN
A compact, reliable, and feature-rich managed PoE switch designed for small to medium surveillance setups and business networks. With intelligent PoE management, gigabit uplinks, and a fanless design, it delivers stable connectivity for IP cameras, wireless access points, and critical devices.
🔑 Key Features
8 × 10/100 Mbps PoE ports with IEEE 802.3af/at support.
2 × Gigabit uplink ports (RJ45/SFP) for flexible backbone connections.
Smart PoE management including scheduling, power prioritisation, and port control.
High PoE power budget for cameras, APs, and other powered devices.
Enhanced security features with VLAN, QoS, and storm control.
Silent, fanless design for office and control room environments.
Rack-mountable or desktop-ready, suited for versatile deployment.
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | NSW3000-8T2GT-POE-IN |
| Downlink Ports | 8 × 10/100 Mbps PoE (RJ45) |
| Uplink Ports | 2 × Gigabit (RJ45/SFP combo) |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding | 4.16 Mpps |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | Up to 130 W total |
| MAC Address Table | 8K entries |
| VLAN Support | 802.1Q VLAN, Port-based VLAN |
| QoS | Priority queues for traffic optimisation |
| Surge Protection | 4 kV per port |
| Dimensions | Approx. 220 × 150 × 44 mm |
| Weight | ~1.5 kg |
| Installation | Desktop or rack-mountable (1U) |
| Environment | Operating: 0°C to 50°C, 10–90% RH |
📦 Package Includes
1 × Uniview NSW3000-8T2GT-POE-IN Switch
1 × Power cable
1 × Rack-mount kit
1 × Quick installation guide
🎯 Best Used For
Small surveillance systems powering up to 8 IP cameras.
Branch offices or retail sites needing compact managed switching.
Wireless deployments with PoE-powered access points.
Quiet environments where fanless, silent operation is essential.
Documents
Specifications
| Brand | UniView |
