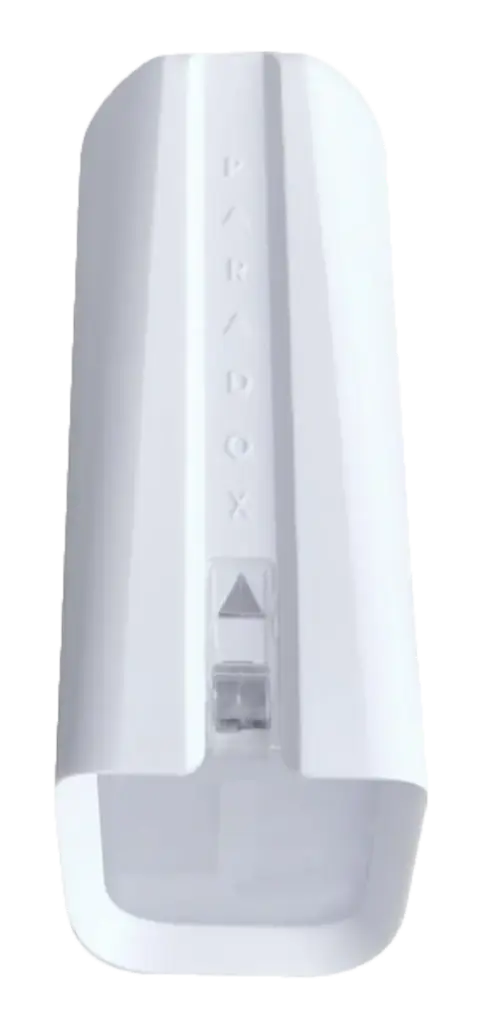

NV37MR
The Paradox NV37MR is a wireless outdoor dual-technology detector, combining passive infrared (PIR) and microwave detection in a weather-resistant housing. It provides highly reliable outdoor intrusion detection with selectable coverage patterns and reduced false alarms, making it ideal for protecting doors, windows, and external approaches.
🔑 Key Features
Wireless dual-technology design (PIR + Microwave) for reliable detection.
Selectable coverage patterns: narrow curtain mode or wide-angle protection.
Pet immunity to prevent false alarms from animals up to 40 kg.
Active anti-mask technology for tamper resistance.
Creep zone detection to cover blind spots directly beneath the sensor.
Long-life battery powered, ideal for installations without cabling.
Weather-resistant enclosure designed for outdoor conditions.
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | NV37MR |
| Detection Method | Dual PIR + Microwave |
| Detection Range | Narrow mode: 0.5–15m Wide mode: 0.5–12m |
| Detection Zones | 7 (narrow), 90° coverage (wide) |
| Pet Immunity | Up to 40 kg |
| Anti-Masking | Yes, active IR anti-mask |
| Creep Zone | Yes, built-in |
| Mounting Height | 1.8–2.4m |
| Wireless Frequency | 433 MHz / 868 MHz (depending on region) |
| Battery | 3 × AA lithium batteries |
| Battery Life | Up to 3 years (typical use) |
| Operating Temp. | –35°C to +50°C |
| Ingress Protection | IP54 |
| Dimensions | Approx. 17 × 6 × 6 cm |
Bracket Wall |
📦 Package Includes
1 × Paradox NV37MR Wireless Outdoor Detector
3 × AA lithium batteries (pre-installed or included)
1 × Mounting kit (brackets and screws)
1 × Installation manual
🎯 Best Used For
Residential homes requiring outdoor wireless perimeter protection.
Commercial properties where cabling is impractical.
Garage doors, sliding doors, and windows needing narrow or wide coverage.
Pet-friendly sites, maintaining security without false triggers.
Specifications
| Brand | Paradox |
