NV37MX

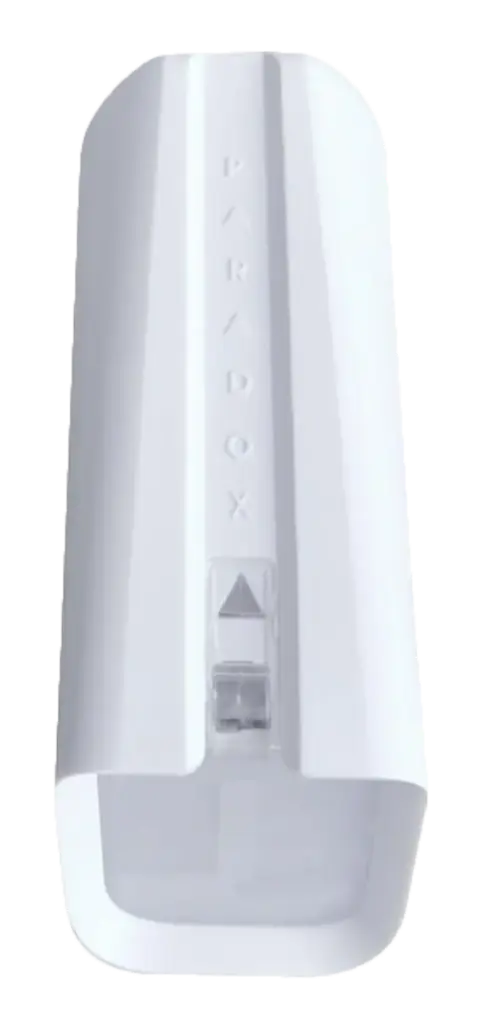

The Paradox NV37MX is a professional hardwired outdoor dual-technology detector combining dual passive infrared (PIR) and microwave sensing. With active anti-mask protection, creep zone coverage, and selectable detection patterns, it delivers high-reliability perimeter protection for residential and commercial applications.
🔑 Key Features
Dual PIR + Microwave detection for enhanced accuracy and reduced false alarms.
Active anti-mask technology detects attempts to block or tamper with the sensor.
Selectable coverage patterns: narrow curtain mode or wide-angle protection.
Pet immunity for animals up to 40 kg, reducing nuisance triggers.
Creep zone detection ensures no blind spots below the sensor.
Weather-resistant IP54 enclosure for dependable outdoor use.
Digital signal processing (DSP) enhances reliability in noisy environments.
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | NV37MX |
| Detection Method | Dual PIR + Microwave |
| Detection Range | Narrow mode: 0.5–15m Wide mode: 0.5–12m |
| Detection Zones | 7 (narrow), 90° (wide) |
| Pet Immunity | Up to 40 kg |
| Anti-Masking | Yes, active IR anti-mask |
| Creep Zone | Yes, integrated |
| Mounting Height | 1.8–2.4m |
| Operating Temp. | –35°C to +50°C |
| Ingress Protection | IP54 |
| Power Supply | 9–16 VDC |
| Current Draw | ~40mA |
| Dimensions | Approx. 17 × 6 × 6 cm |
Bracket Wall |
📦 Package Includes
1 × Paradox NV37MX Outdoor Dual Detector
1 × Mounting kit (brackets and screws)
1 × Installation manual
🎯 Best Used For
Residential and commercial perimeters requiring high-security outdoor detection.
Windows, doors, and sliding entries with narrow curtain coverage.
Open outdoor approaches with wide-angle coverage.
High-security environments where anti-mask protection is essential.
Specifications
| Brand | Paradox |
