NV5

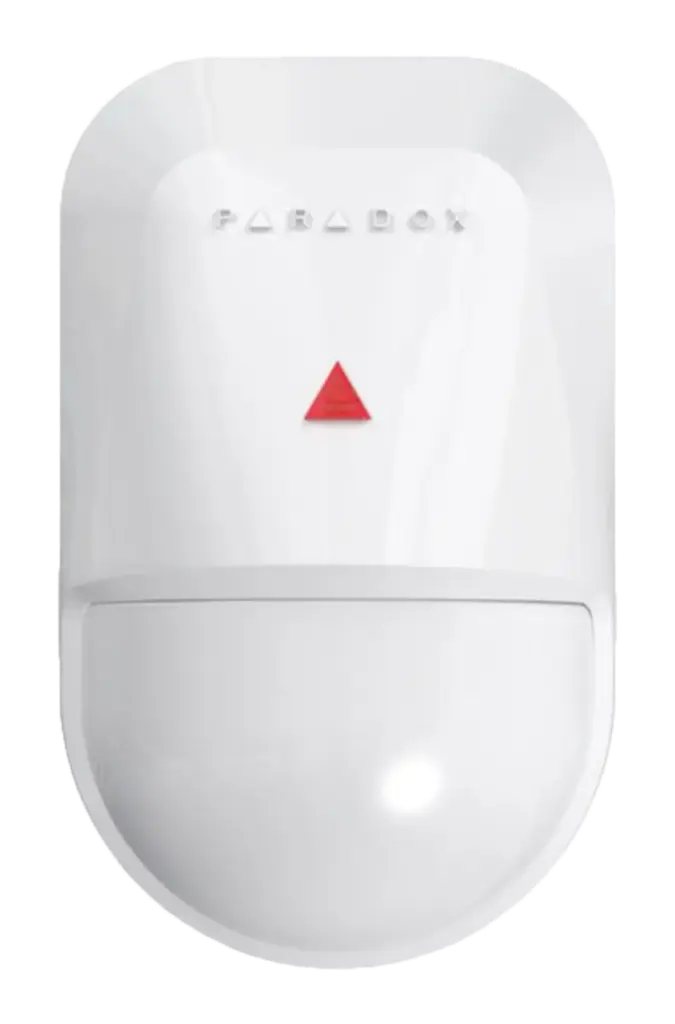

The Paradox NV5 is a compact, reliable passive infrared (PIR) motion detector designed for indoor residential and commercial security systems. With wide-angle coverage, digital signal processing, and adjustable sensitivity, it provides accurate detection while reducing false alarms.
🔑 Key Features
Compact and discreet design, ideal for modern interiors.
Wide-angle detection up to 12 metres with a 90° field of view.
Digital signal processing (DSP) ensures reliable detection and reduces false alarms.
Selectable pulse count sensitivity to adapt to room conditions.
Tamper protection to prevent tampering or removal.
Flexible mounting options for wall or corner installations.
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | NV5 |
| Detection Method | Passive Infrared (PIR) |
| Detection Range | Up to 12m |
| Field of View | 90° |
| Pet Immunity | No (standard PIR) |
| Sensitivity | Adjustable, pulse count selectable |
| Tamper Protection | Yes |
| Mounting Height | 2.1–2.7m |
| Power Supply | 9–16 VDC |
| Current Draw | ~10mA |
| Dimensions | 9 × 6 × 4 cm |
📦 Package Includes
1 × Paradox NV5 PIR Motion Detector
1 × Mounting kit (bracket and screws)
1 × Installation guide
🎯 Best Used For
Residential homes needing reliable indoor intrusion detection.
Commercial offices, retail, and small businesses requiring discreet motion sensors.
Multi-room security installations where compact detectors are preferred.
Contractors and installers looking for a versatile, cost-effective PIR sensor.
Specifications
| Brand | Paradox |
