NV5-BULK50

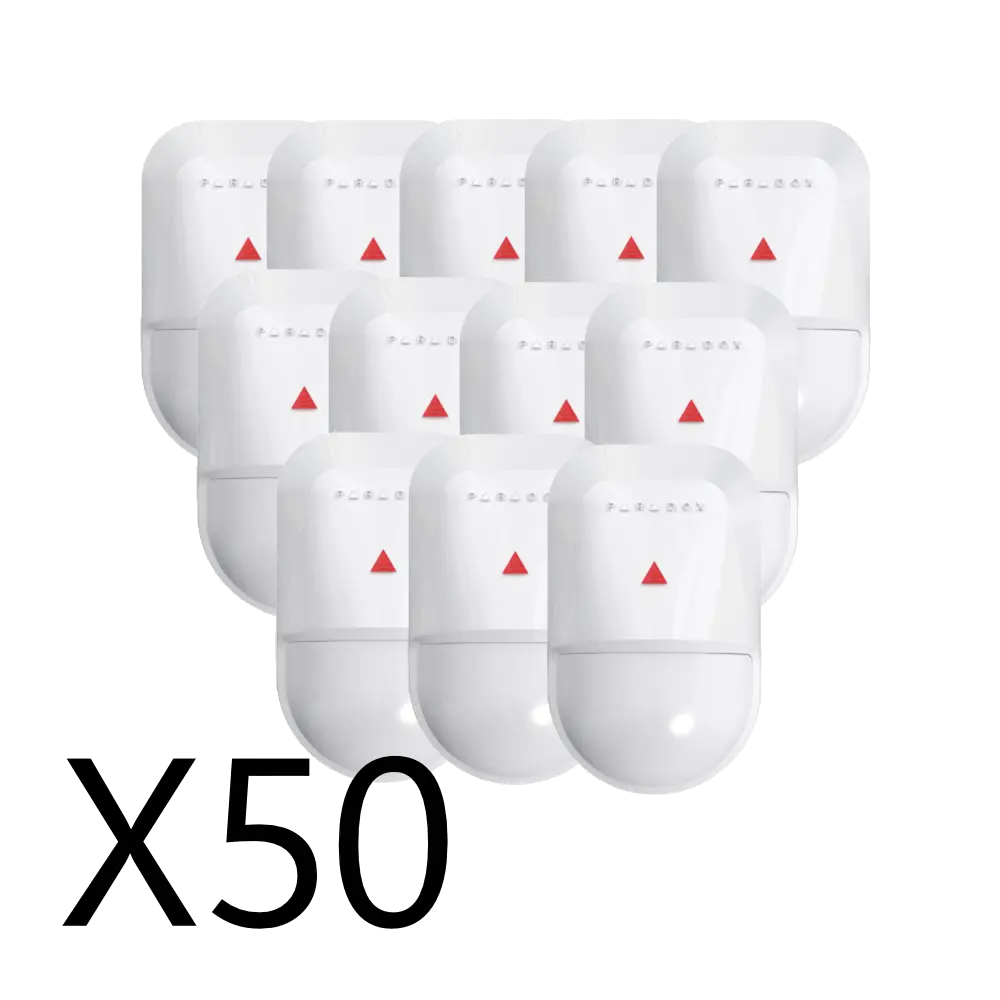

The Paradox NV5 is a compact indoor PIR motion detector designed for accurate detection and simple installation. The NV5 BULK50 package provides 50 detectors in one bulk carton, offering exceptional value for large projects, installers, and security contractors.
🔑 Key Features
50 × NV5 motion detectors in one bulk package for cost efficiency.
Compact, discreet design suitable for residential and commercial interiors.
Wide-angle PIR coverage up to 12 metres with 90° field of view.
Digital signal processing (DSP) for reduced false alarms.
Selectable pulse count sensitivity to match the environment.
Tamper switch for added security.
Wall or corner mounting options with adjustable bracket.
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | NV5 (Bulk Pack of 50) |
| Detection Method | Passive Infrared (PIR) |
| Detection Range | Up to 12m |
| Field of View | 90° |
| Pet Immunity | No (standard PIR) |
| Sensitivity | Adjustable, pulse count selectable |
| Tamper Protection | Yes |
| Mounting Height | 2.1–2.7m |
| Power Supply | 9–16 VDC |
| Current Draw | ~10mA |
| Dimensions | 9 × 6 × 4 cm (per detector) |
Bracket |
📦 Package Includes
50 × Paradox NV5 PIR Motion Detectors
50 × Mounting kits (brackets and screws)
50 × Installation guides
🎯 Best Used For
Large residential developments requiring multiple indoor sensors.
Commercial fit-outs needing bulk PIR motion detectors.
Security contractors and installers working on high-volume projects.
Warehouses, offices, and retail spaces requiring scalable motion detection.
Specifications
| Brand | Paradox |
