NVR301-04B-P4-IQ-2TB

NVR301-04B-P4-IQ2TB – 4-Channel Smart PoE NVR with 2TB HDD Included

A complete 4-channel smart network video recorder solution with built-in PoE and a pre-installed 2TB hard drive. Ideal for homes or small business security systems, it supports high-resolution IP cameras and AI-enhanced video analytics for smarter surveillance.

📌 Key Features

• 4-channel IP video input with real-time playback

• Built-in 4-port PoE switch for direct camera connection

• Includes 2TB pre-installed surveillance-grade HDD

• Supports up to 8MP resolution cameras

• Compatible with AI functions such as human/vehicle detection

• HDMI and VGA output for flexible display options

• Smart search, playback, and video tagging

• Fanless design for silent operation

⚙️ Technical Specifications

• Video Input: 4 IP channels

• PoE Ports: 4 × 100Mbps ports (IEEE 802.3af/at)

• Maximum Camera Resolution: 8MP per channel

• Recording Bandwidth: 40Mbps

• Decoding Capacity: 1 × 8MP, 2 × 4MP, or 4 × 1080p

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression Format: Ultra 265, H.265, H.264

• Internal Storage: 1 × 2TB SATA HDD (pre-installed, upgradable to 10TB)

• USB Ports: 2 × USB 2.0

• Smart Features: Motion detection, AI camera support for human/vehicle filtering

• Remote Access: Web browser, CMS software, mobile app

• Power Supply: DC 48V, PoE power budget approx. 50W

• Power Consumption: ≤10W (excluding HDD and PoE output)

• Operating Temperature: -10°C to 55°C

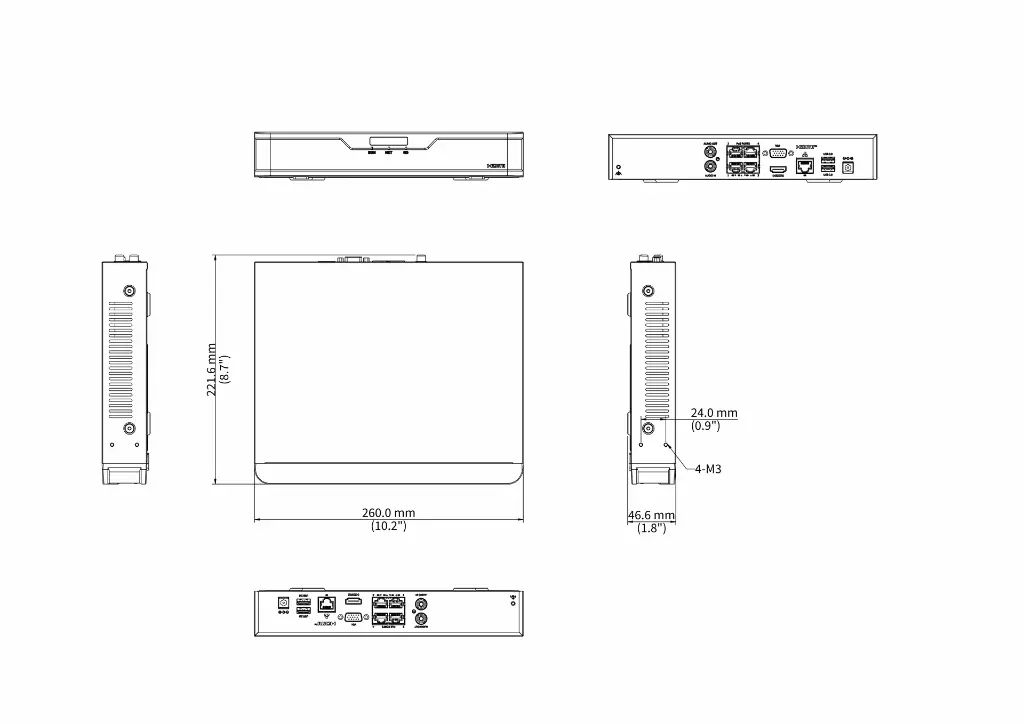

• Dimensions: 260 × 248 × 47MM

• Weight: Approx. 2.2KG (with HDD)

🎯 Best Used For

• Small business and retail environments

• Home security systems with up to 4 IP cameras

• Plug-and-play camera setups using PoE

• Installations requiring built-in storage from day one

• Projects looking for AI integration with minimal configuration
