NVR301-04B-P4-IQ

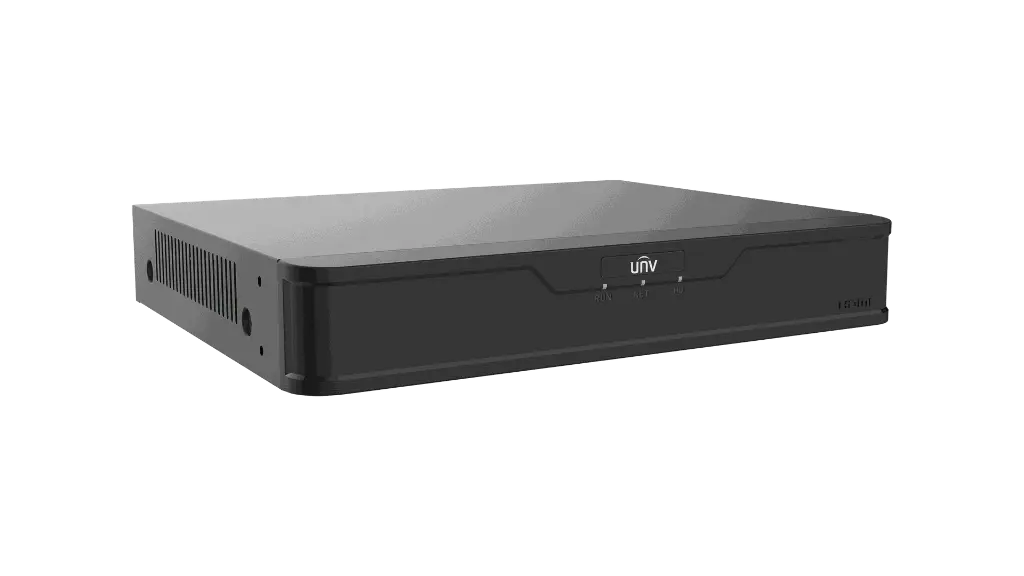

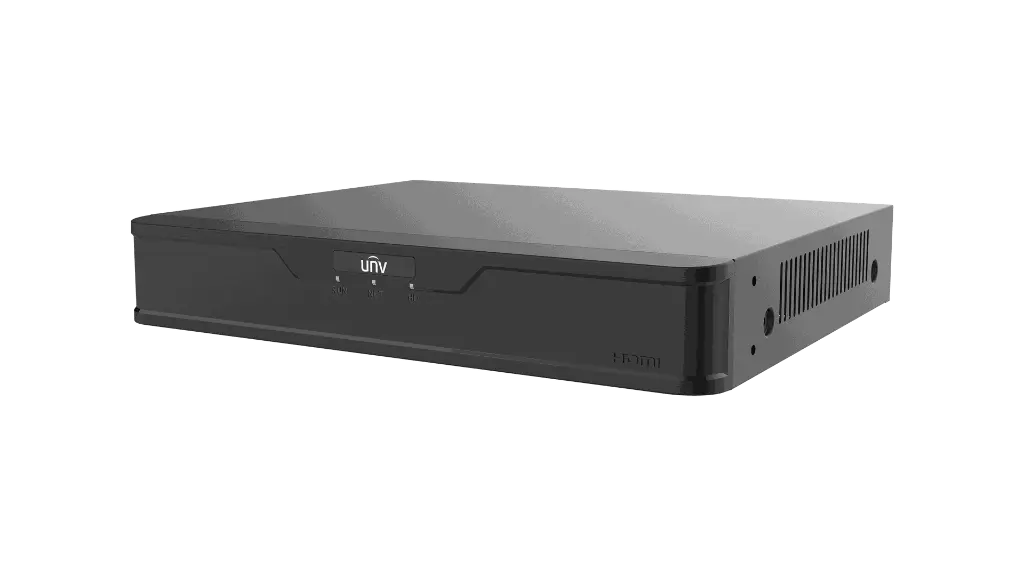

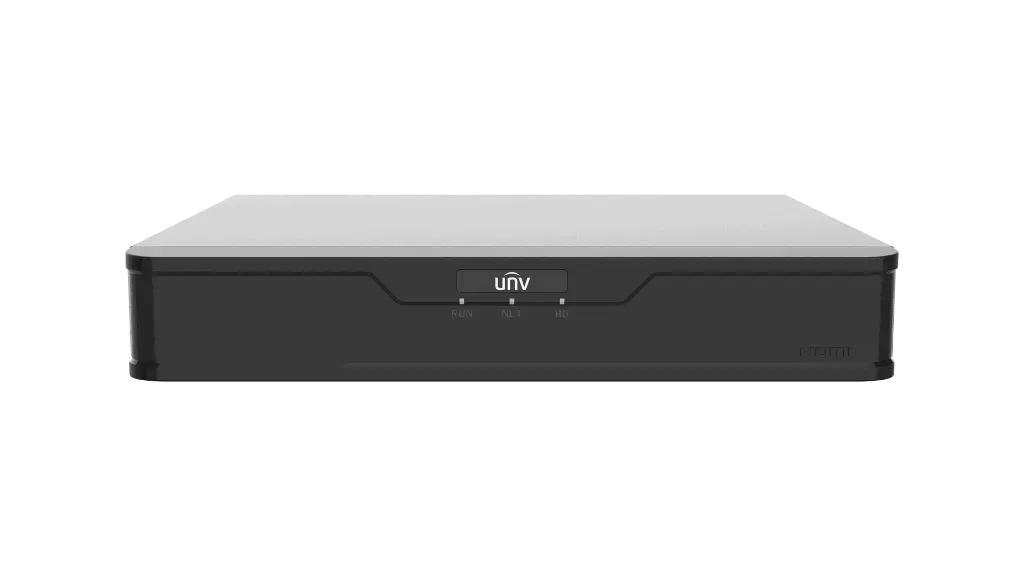

NVR301-04B-P4-IQ – 4-Channel Smart Network Video Recorder with PoE

A compact yet intelligent 4-channel NVR featuring built-in 4-port PoE and support for AI-powered cameras. Designed for small to medium surveillance systems, it delivers reliable recording, smart search capabilities, and easy remote access.

📌 Key Features

• 4-channel video input with real-time playback

• Built-in 4-port PoE switch for easy IP camera setup

• Supports up to 8MP resolution per channel

• Compatible with AI smart cameras (human/vehicle classification)

• HDMI and VGA simultaneous video output

• Smart search and playback functions

• Remote access via mobile app or web interface

• Compact, fanless design for silent operation

⚙️ Technical Specifications

• Video Input: 4 IP channels

• PoE Ports: 4 × 100Mbps ports, 802.3af/at compliant

• Max Resolution: Up to 8MP per channel

• Recording Bandwidth: 40Mbps incoming

• Decoding Capacity: 1 channel @ 8MP, 2 channels @ 4MP, 4 channels @ 1080p

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 1 × SATA HDD (up to 10TB)

• USB Ports: 2 × USB 2.0

• Smart Features: Motion detection, human/vehicle filtering (with supported cameras)

• Network Access: Web, CMS, Mobile App (iOS/Android)

• Power Supply: DC 48V, PoE total budget ~50W

• Power Consumption: ≤10W (excluding HDD and PoE)

• Operating Temp: -10°C to 55°C

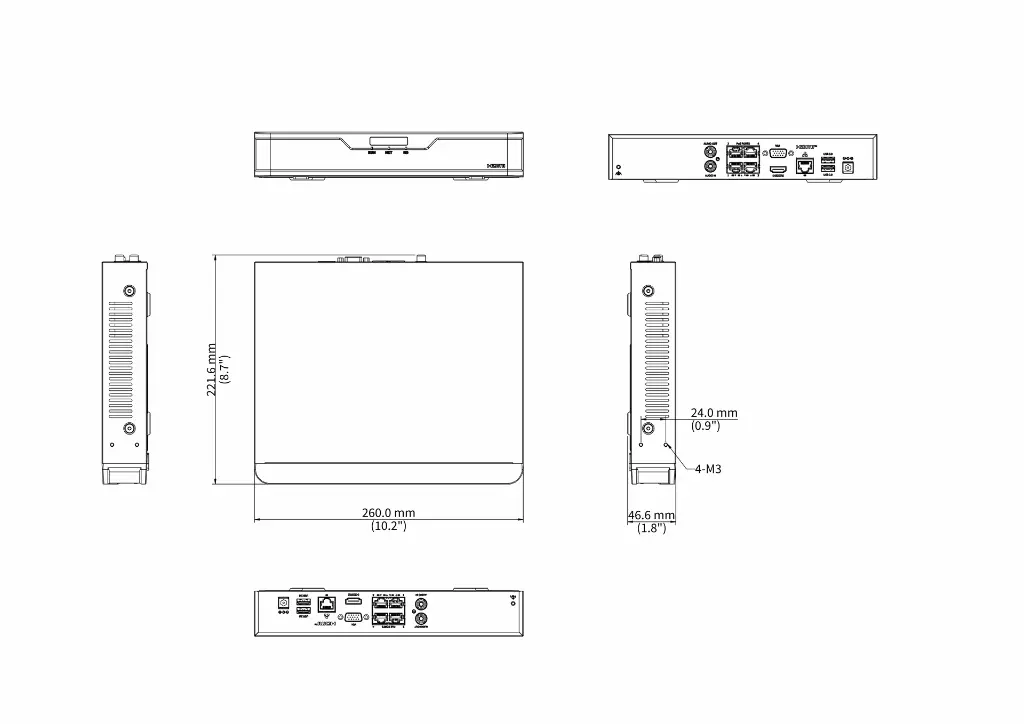

• Dimensions: 260 × 248 × 47MM

• Weight: Approx. 1.5KG (without HDD)

🎯 Best Used For

• Small office and retail security setups

• Residential installations with up to 4 cameras

• Quick plug-and-play deployments using PoE

• Systems requiring smart event filtering with AI cameras

• Locations needing quiet, low-maintenance NVR solutions
