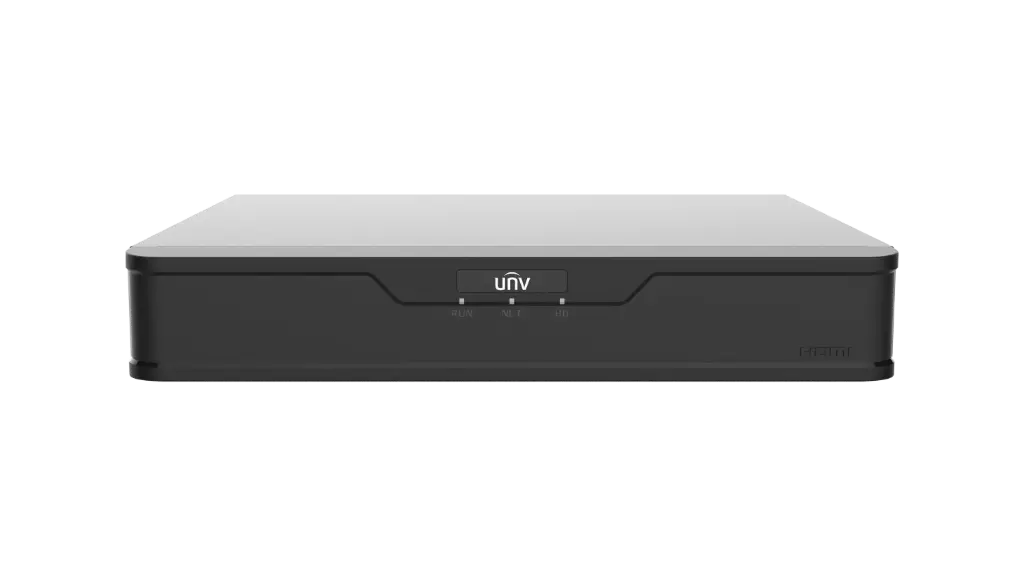

NVR301-08B-P8-IQ-4TB

NVR301-08B-P8-IQ-4TB – 8-Channel Smart NVR with 8-Port PoE and 4TB HDD

An 8-channel network video recorder with an integrated 8-port PoE switch and a pre-installed 4TB hard drive. Perfect for medium-sized surveillance systems requiring high-capacity storage, smart features, and simplified camera setup.

📌 Key Features

• 8-channel IP video input with real-time recording

• Built-in 8-port PoE switch for easy IP camera connection

• Pre-installed 4TB surveillance-grade HDD

• Supports up to 8MP resolution per channel

• AI smart features supported with compatible cameras

• HDMI and VGA outputs for dual monitor support

• Smart playback with motion and event-based search

• Fanless, compact design for quiet operation

⚙️ Technical Specifications

• Video Input: 8 IP channels

• PoE Ports: 8 × 100Mbps (IEEE 802.3af/at compliant)

• Max Resolution: 8MP per channel

• Recording Bandwidth: 80Mbps

• Decoding Capability: 2 × 8MP, 4 × 4MP, or 8 × 1080p

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Internal Storage: 1 × 4TB SATA HDD (installed, upgradable to 10TB)

• USB Ports: 2 × USB 2.0

• Smart Functions: Motion detection, smart search, human/vehicle filtering (with AI cameras)

• Remote Access: CMS software, web browser, mobile app

• Power Supply: DC 48V, PoE power budget approx. 96W

• Power Consumption: ≤10W (excluding PoE and HDD load)

• Operating Temp: -10°C to 55°C

• Dimensions: 300 × 248 × 47MM

• Weight: Approx. 2.5KG (with HDD)

🎯 Best Used For

• Multi-camera commercial and retail environments

• Office or warehouse installations with AI camera support

• Projects needing onboard 4TB storage from the outset

• Medium-sized systems with plug-and-play PoE setup

• Environments requiring quiet, fanless video recording hardware
