NVR302-08B-P8-IQ
NVR302-08B-P8-IQ – 8-Channel AI NVR with 8-Port PoE and Dual HDD Bays
A high-performance 8-channel network video recorder designed for advanced surveillance applications. Equipped with 8 PoE ports and dual HDD bays, it supports up to 12MP resolution recording and offers intelligent analytics for enhanced security monitoring.
📌 Key Features
8-channel IP video input with real-time recording
Integrated 8-port PoE switch for simplified camera connectivity
Supports up to 12MP resolution per channel
Dual SATA interfaces supporting up to 10TB per HDD
Advanced AI features: face detection, intrusion prevention, people counting
HDMI and VGA outputs for dual-display setups
Smart playback with event and motion-based search
Fanless design for silent operation in noise-sensitive environments
⚙️ Technical Specifications
Video Input: 8 IP channels
PoE Ports: 8 × 10/100 Mbps (IEEE 802.3af/at compliant)
Maximum Resolution: 12MP per channel
Recording Bandwidth: 160 Mbps
Decoding Capability:
Smart Off: 2 × 12MP@30fps, 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps
Smart On: 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps
Video Output: 1 HDMI (up to 4K), 1 VGA
Compression: Ultra 265, H.265, H.264
Storage: 2 × SATA interfaces (up to 10TB per HDD)
USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)
Smart Features: AI camera support, motion detection, smart search, human/vehicle classification
Remote Access: CMS software, web browser, mobile app
Power Supply: AC 100–240V, PoE budget approx. 130W (max 30W per port)
Power Consumption: ≤12W (excluding HDD and PoE output)
Operating Temperature: -10°C to 55°C

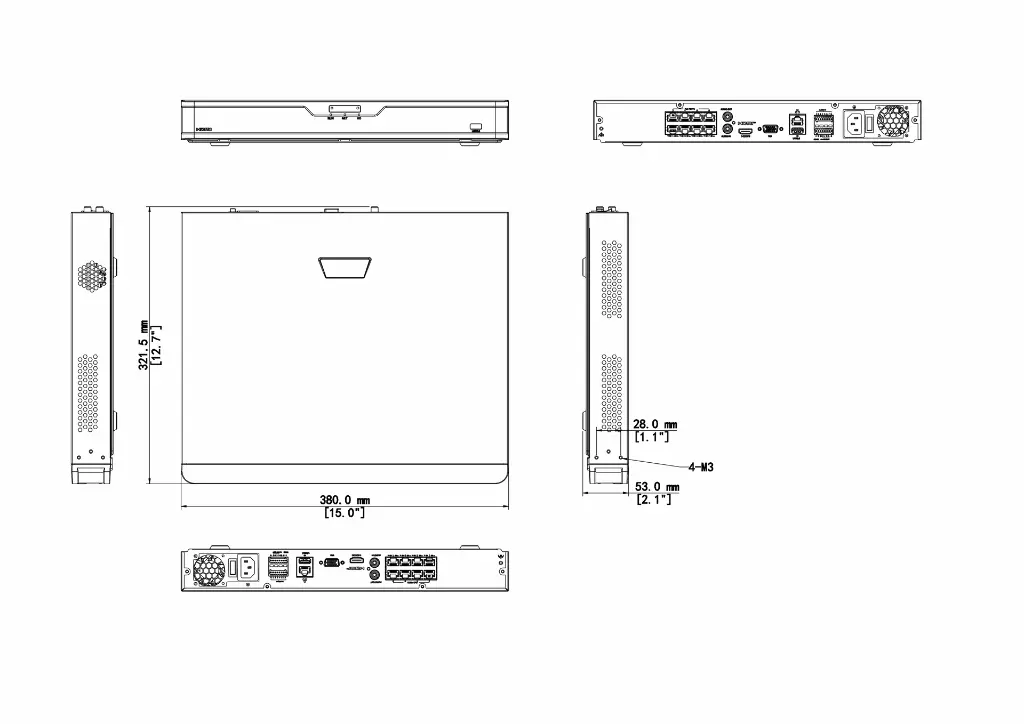

Dimensions: 380 × 322 × 53 mm
Weight: ≤2.7 kg (without HDD)
🎯 Best Used For
Medium to large-scale commercial and industrial surveillance systems
Installations requiring high-resolution recording and AI analytics
Environments needing scalable storage solutions with dual HDD bays
Projects where silent operation is essential
Systems necessitating reliable PoE power for multiple IP cameras
Specifications
Brand | UniView |
