NVR302-08B-P8-IQ-4TB

NVR302-08B-P8-IQ-4TB – 8-Channel AI NVR with 8-Port PoE & Dual HDD Bays (4TB Included)

A robust and intelligent 8-channel network video recorder featuring an integrated 8-port PoE switch and dual HDD bays, pre-installed with a 4TB surveillance-grade hard drive. Designed for medium to large-scale surveillance systems, it supports up to 12MP recording, advanced AI analytics, and offers scalable storage options.

📌 Key Features

• 8-channel IP video input with real-time recording

• Built-in 8-port PoE switch for simplified camera connectivity

• Pre-installed 4TB HDD with dual SATA bays supporting up to 10TB each

• Supports up to 12MP resolution per channel

• Advanced AI functions: face detection, intrusion prevention, people counting

• HDMI and VGA outputs for dual-display setups

• Smart playback with motion and event-based search

• Fanless design for silent operation in noise-sensitive environments

⚙️ Technical Specifications

• Video Input: 8 IP channels

• PoE Ports: 8 × 10/100 Mbps (IEEE 802.3af/at compliant)

• Maximum Resolution: 12MP per channel

• Recording Bandwidth: 160 Mbps

• Decoding Capability:

  • Smart Off: 2 × 12MP@30fps, 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps

  • Smart On: 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 2 × SATA interfaces (1 × 4TB HDD pre-installed, up to 10TB per HDD)

• USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

• Smart Features: AI camera support, motion detection, smart search, human/vehicle classification

• Remote Access: CMS software, web browser, mobile app

• Power Supply: AC 100–240V, PoE budget approx. 130W (max 30W per port)

• Power Consumption: ≤12W (excluding HDD and PoE output)

• Operating Temperature: -10°C to 55°C

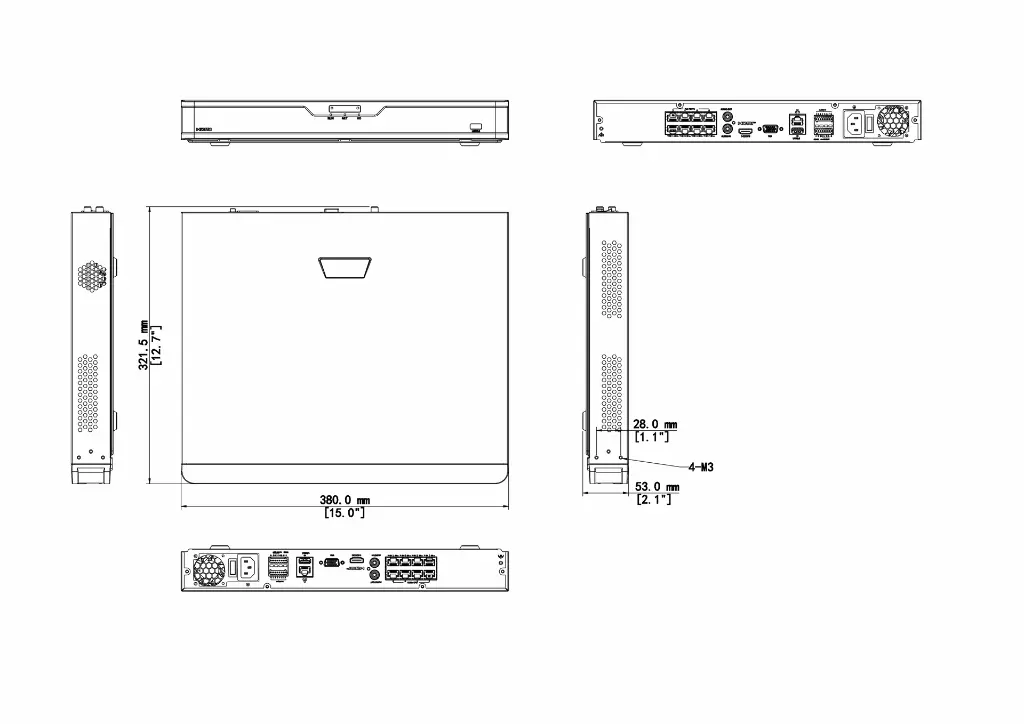

• Dimensions: 380 × 322 × 53 mm

• Weight: ≤2.7 kg (without HDD)

🎯 Best Used For

• Medium to large-scale commercial and industrial surveillance systems

• Installations requiring high-resolution recording and AI analytics

• Environments needing scalable storage solutions with dual HDD bays

• Projects where silent operation is essential

• Systems necessitating reliable PoE power for multiple IP cameras
