NVR302-16B-P16-IQ-4TB

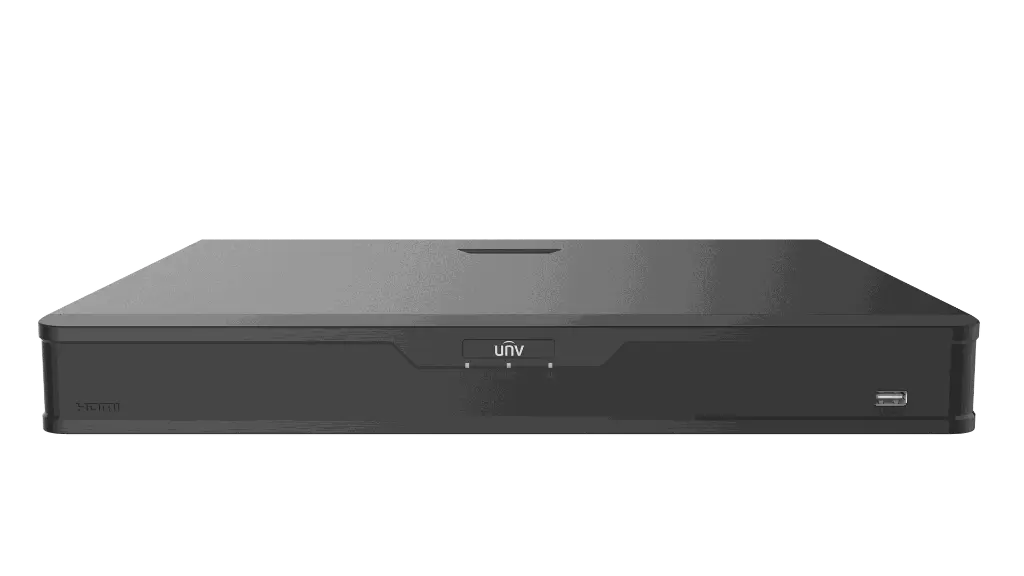

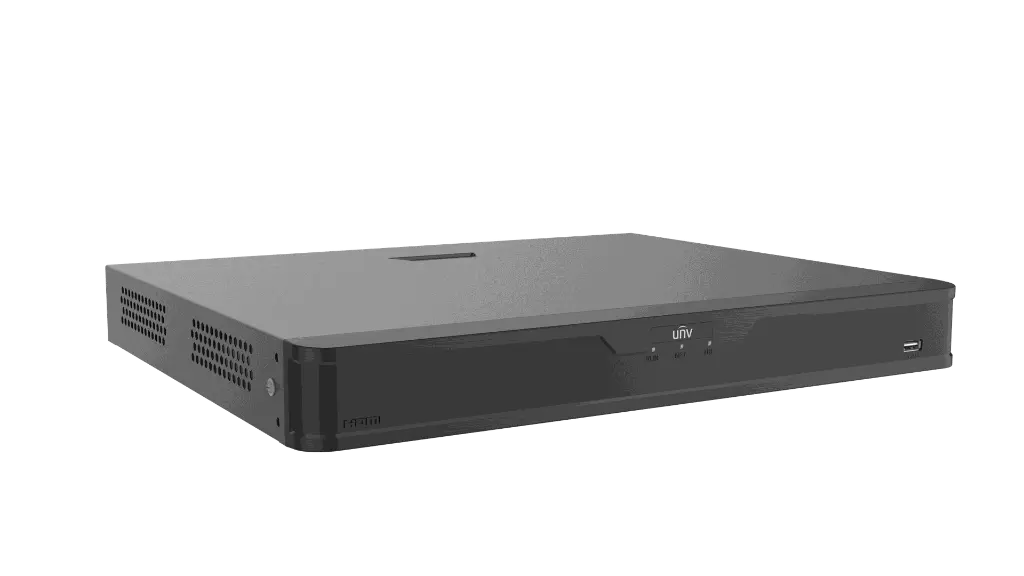

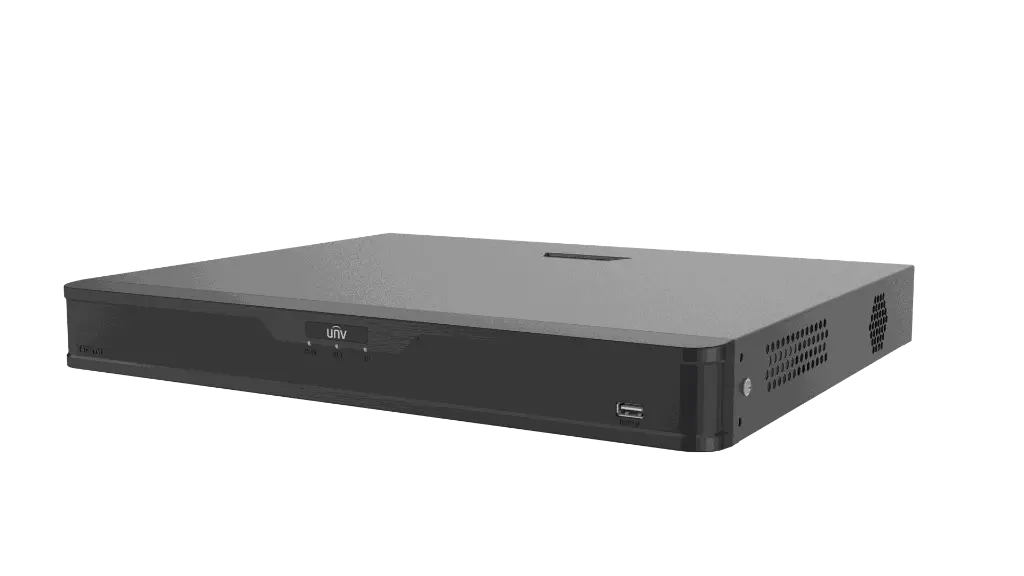

NVR302-16B-P16-IQ-4TB – 16-Channel AI NVR with 16-Port PoE and 4TB HDD

A high-performance 16-channel network video recorder designed for advanced surveillance applications. Featuring 16 PoE ports and dual HDD bays, it supports up to 12MP resolution recording and offers intelligent analytics for enhanced security monitoring. This model comes pre-installed with a 4TB surveillance-grade hard drive.

📌 Key Features

• 16-channel IP video input with real-time recording

• Integrated 16-port PoE switch for simplified camera connectivity

• Supports up to 12MP resolution per channel

• Dual SATA interfaces supporting up to 10TB per HDD

• Advanced AI features: face detection, intrusion prevention, people counting

• HDMI and VGA outputs for dual-display setups

• Smart playback with event and motion-based search

• Fanless design for silent operation in noise-sensitive environments

• Pre-installed 4TB surveillance-grade HDD

⚙️ Technical Specifications

• Video Input: 16 IP channels

• PoE Ports: 16 × 10/100 Mbps (IEEE 802.3af/at compliant)

• Maximum Resolution: 12MP per channel

• Recording Bandwidth: 160 Mbps

• Decoding Capability:

  • Smart Off: 2 × 12MP@30fps, 2 × 4K@30fps, 4 × 4MP@30fps, 10 × 1080P@30fps, 16 × 720P@30fps

  • Smart On: 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps, 16 × 720P@30fps

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 2 × SATA interfaces (1 × 4TB HDD pre-installed, up to 10TB per HDD)

• USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

• Smart Features: AI camera support, motion detection, smart search, human/vehicle classification

• Remote Access: CMS software, web browser, mobile app

• Power Supply: AC 100–240V, PoE budget approx. 240W (max 30W per port)

• Power Consumption: ≤12W (excluding HDD and PoE output)

• Operating Temperature: -10°C to 55°C

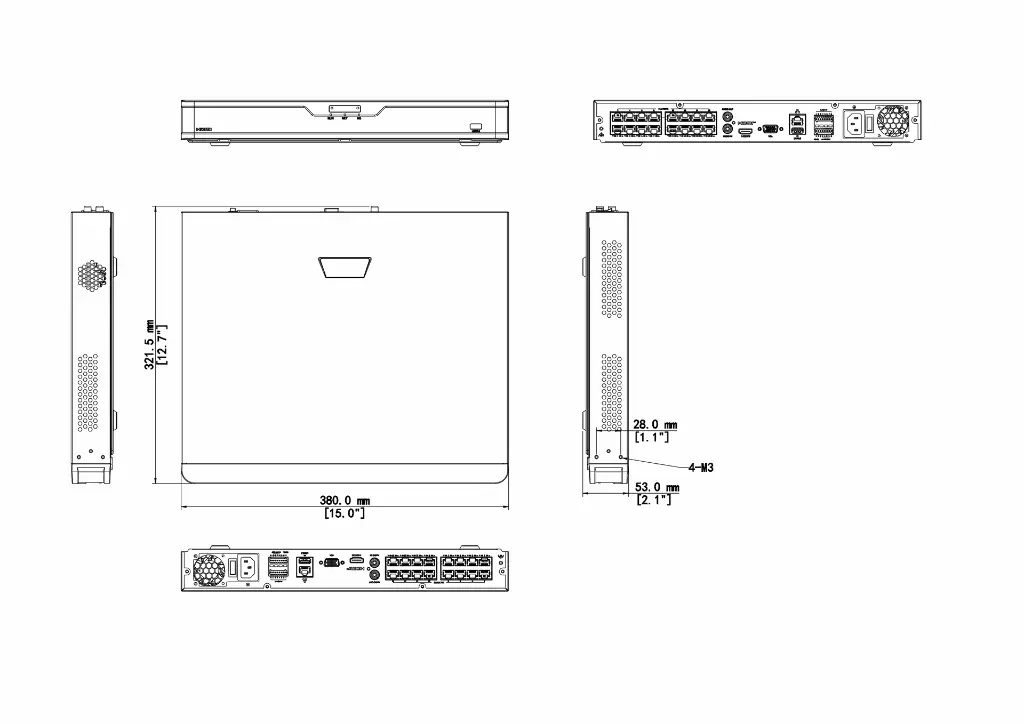

• Dimensions: 380 × 322 × 53 mm

• Weight: ≤2.7 kg (without HDD)

🎯 Best Used For

• Medium to large-scale commercial and industrial surveillance systems

• Installations requiring high-resolution recording and AI analytics

• Environments needing scalable storage solutions with dual HDD bays

• Projects where silent operation is essential

• Systems necessitating reliable PoE power for multiple IP cameras
