NVR501-04B-P4-IQ-2TB
NVR501-04B-P4-IQ-2TB – 4-Channel 4K AI NVR with 4-Port PoE and 2TB HDD
A compact and intelligent 4-channel network video recorder featuring 4 independent PoE ports, advanced AI analytics, and support for Ultra 265/H.265/H.264 compression. Ideal for small-scale surveillance systems requiring high-resolution recording and smart functionality. This model comes pre-installed with a 2TB surveillance-grade hard drive.
📌 Key Features
4-channel IP video input with real-time recording
Built-in 4-port PoE switch for simplified camera connectivity
Supports up to 16MP resolution per channel
Advanced AI features: face detection, intrusion prevention, people counting
HDMI and VGA outputs for dual-display setups
Smart playback with event and motion-based search
ANR technology to enhance storage reliability during network disconnections
Compact 1U design for easy installation
Pre-installed 2TB surveillance-grade HDD
⚙️ Technical Specifications
Video Input: 4 IP channels
PoE Ports: 4 × 10/100 Mbps (IEEE 802.3af/at compliant)
Maximum Resolution: 16MP per channel
Recording Bandwidth: 80 Mbps
Decoding Capability:
Smart Off: 2 × 16MP@30fps, 2 × 12MP@30fps, 4 × 4K@30fps
Smart On: 2 × 12MP@30fps, 2 × 4K@30fps, 4 × 4MP@30fps

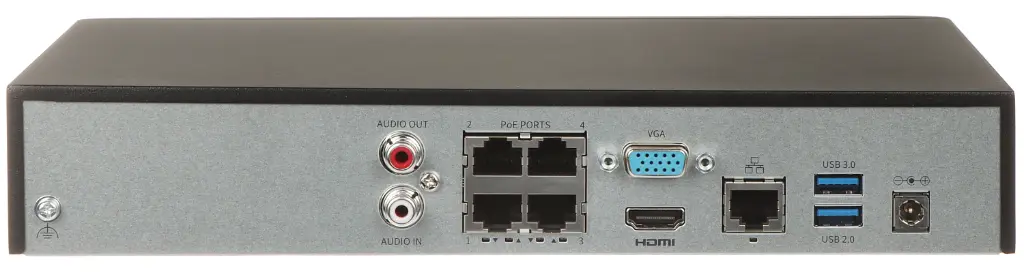

Video Output: 1 HDMI (up to 4K), 1 VGA
Compression: Ultra 265, H.265, H.264
Storage: 1 × SATA interface (2TB HDD pre-installed, up to 16TB capacity)
USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)
Smart Features: AI camera support, motion detection, smart search, human/vehicle classification
Remote Access: CMS software, web browser, mobile app
Power Supply: DC 48V/1.35A, PoE budget approx. 50W (max 30W per port)
Power Consumption: ≤10W (excluding HDD and PoE output)
Operating Temperature: -10°C to 55°C

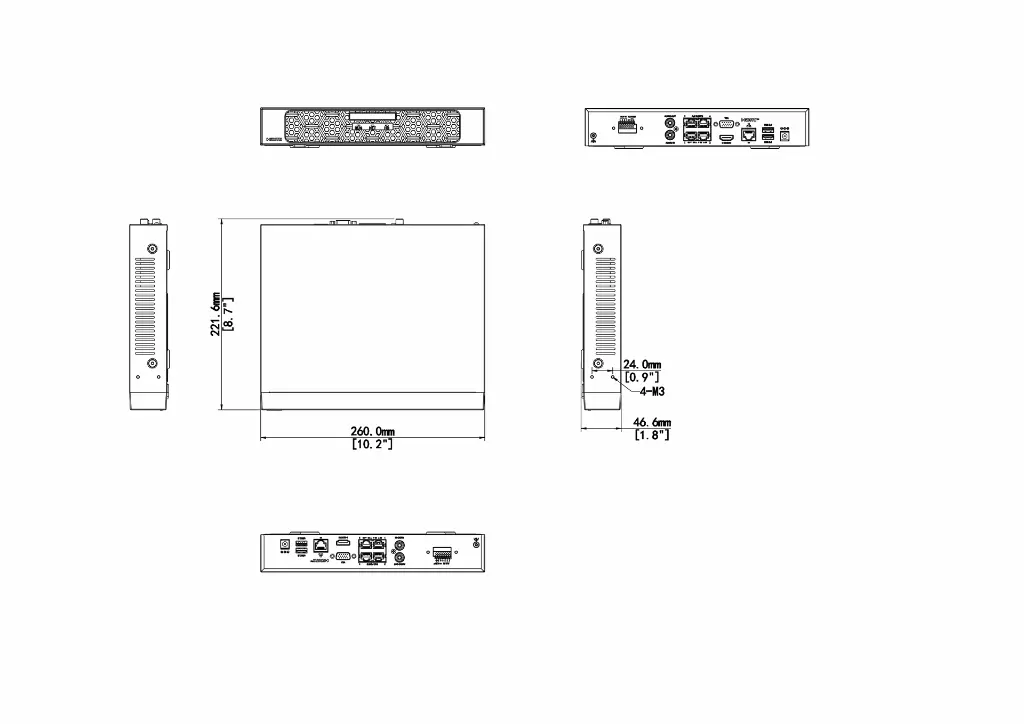

Dimensions: 260 × 222 × 47 mm
Weight: ≤1.1 kg (without HDD)
🎯 Best Used For
Small-scale commercial and residential surveillance systems
Installations requiring high-resolution recording and AI analytics
Environments needing compact and efficient NVR solutions
Projects where reliable PoE power for multiple IP cameras is essential
Specifications
Brand | UniView |
