NVR501-04B-P4-IQ

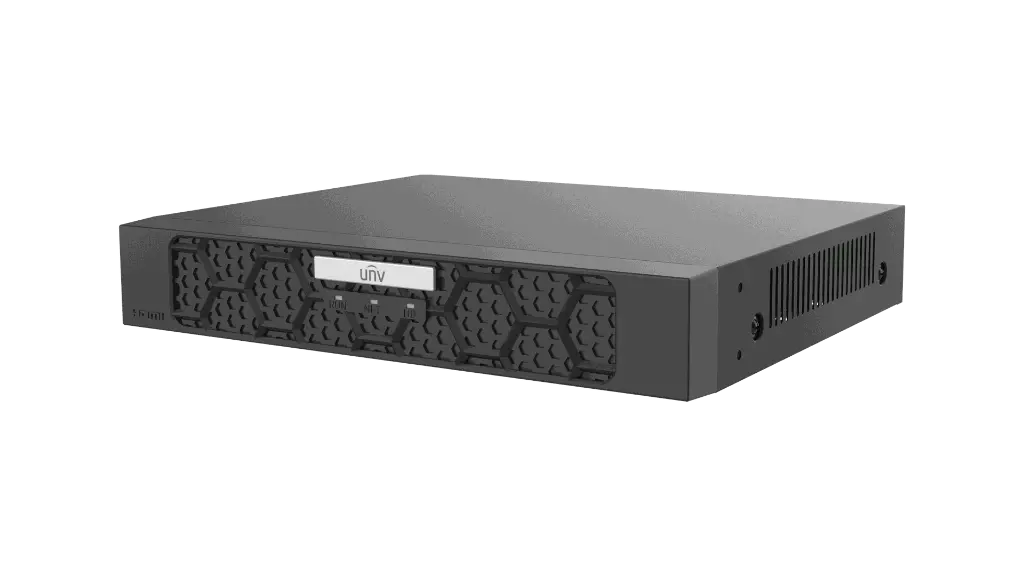

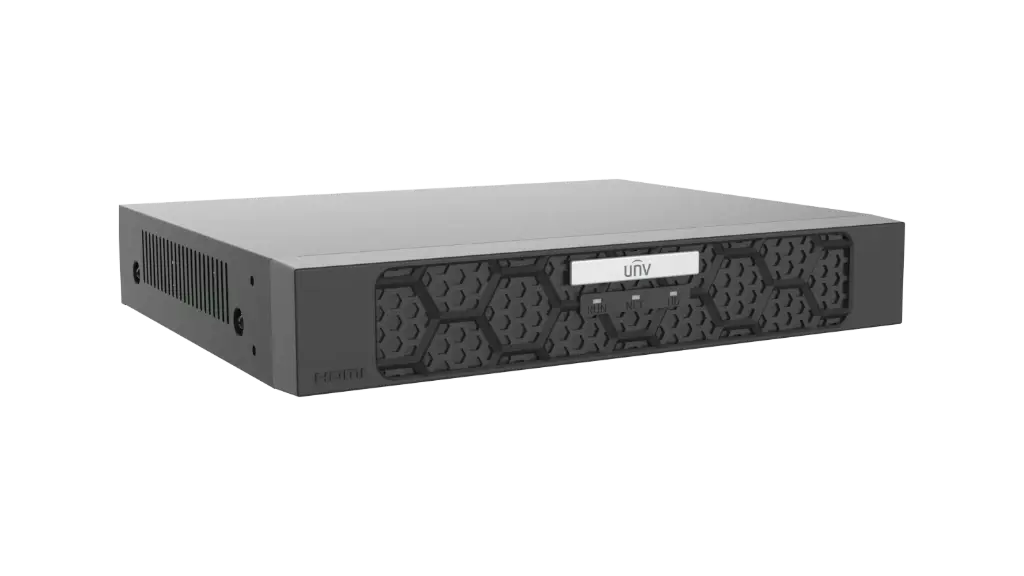

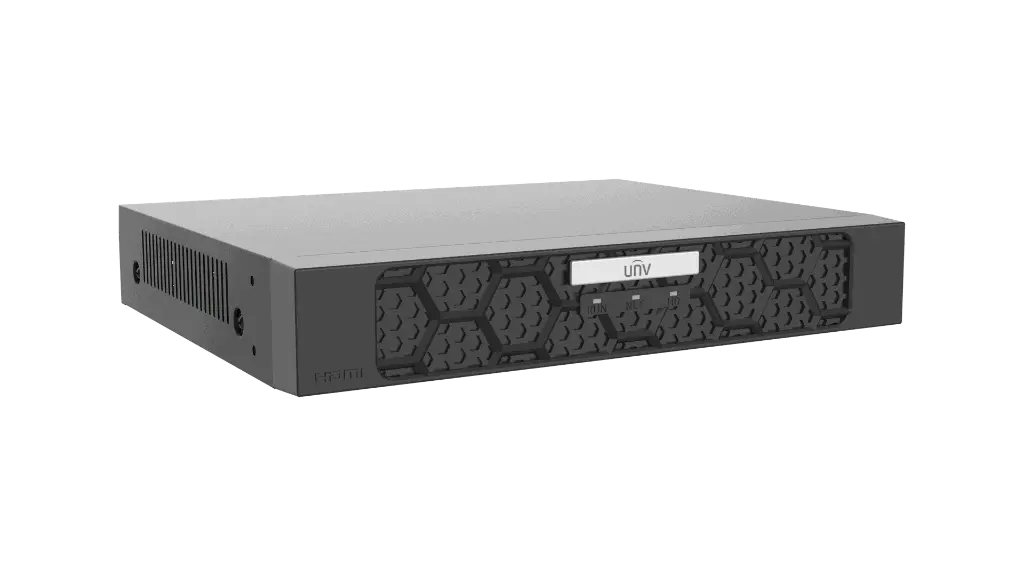

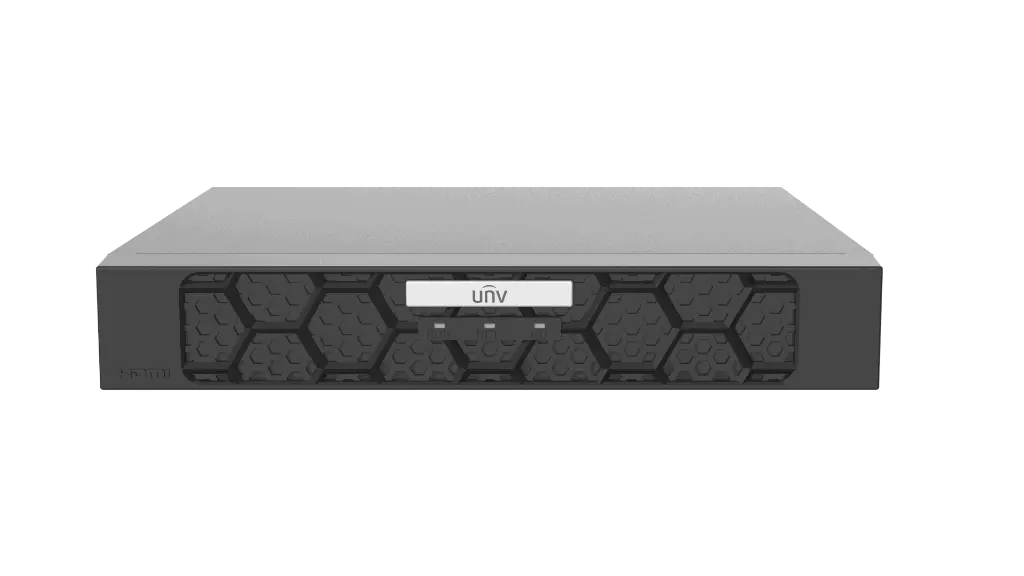

NVR501-04B-P4-IQ – 4-Channel 4K AI NVR with 4-Port PoE

A compact and intelligent 4-channel network video recorder featuring 4 independent PoE ports, advanced AI analytics, and support for Ultra 265/H.265/H.264 compression. Ideal for small-scale surveillance systems requiring high-resolution recording and smart functionality.

📌 Key Features

• 4-channel IP video input with real-time recording

• Built-in 4-port PoE switch for simplified camera connectivity

• Supports up to 16MP resolution per channel

• Advanced AI features: face detection, intrusion prevention, people counting

• HDMI and VGA outputs for dual-display setups

• Smart playback with event and motion-based search

• ANR technology to enhance storage reliability during network disconnections

• Compact 1U design for easy installation

⚙️ Technical Specifications

• Video Input: 4 IP channels

• PoE Ports: 4 × 10/100 Mbps (IEEE 802.3af/at compliant)

• Maximum Resolution: 16MP per channel

• Recording Bandwidth: 80 Mbps

• Decoding Capability:

  • Smart Off: 2 × 16MP@30fps, 2 × 12MP@30fps, 4 × 4K@30fps

  • Smart On: 2 × 12MP@30fps, 2 × 4K@30fps, 4 × 4MP@30fps

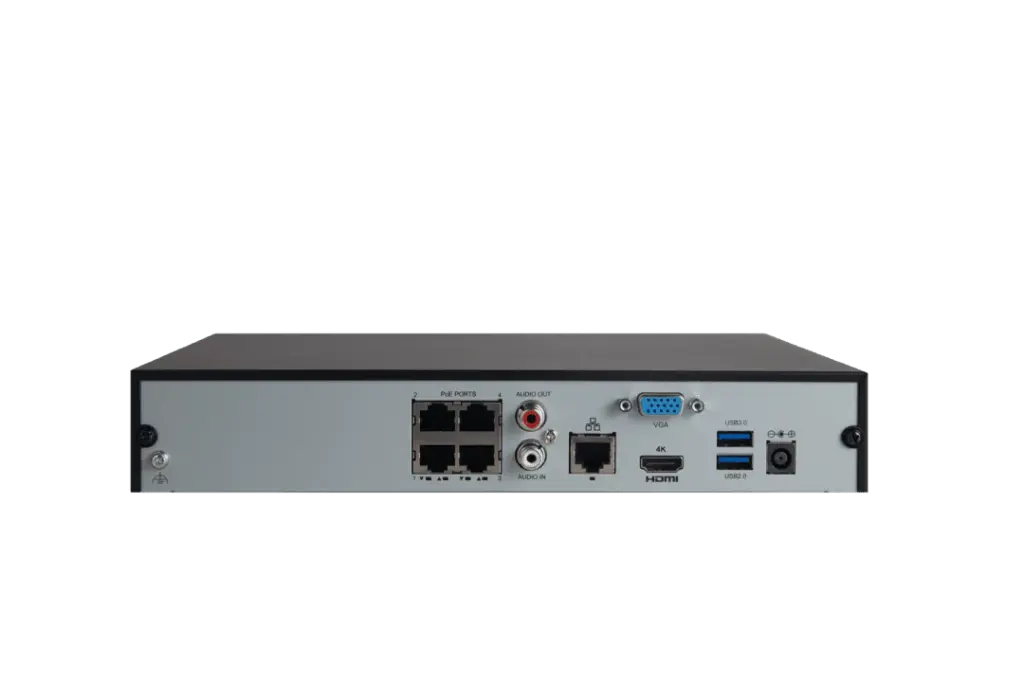

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 1 × SATA interface (up to 16TB capacity)

• USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

• Smart Features: AI camera support, motion detection, smart search, human/vehicle classification

• Remote Access: CMS software, web browser, mobile app

• Power Supply: DC 48V/1.35A, PoE budget approx. 50W (max 30W per port)

• Power Consumption: ≤10W (excluding HDD and PoE output)

• Operating Temperature: -10°C to 55°C

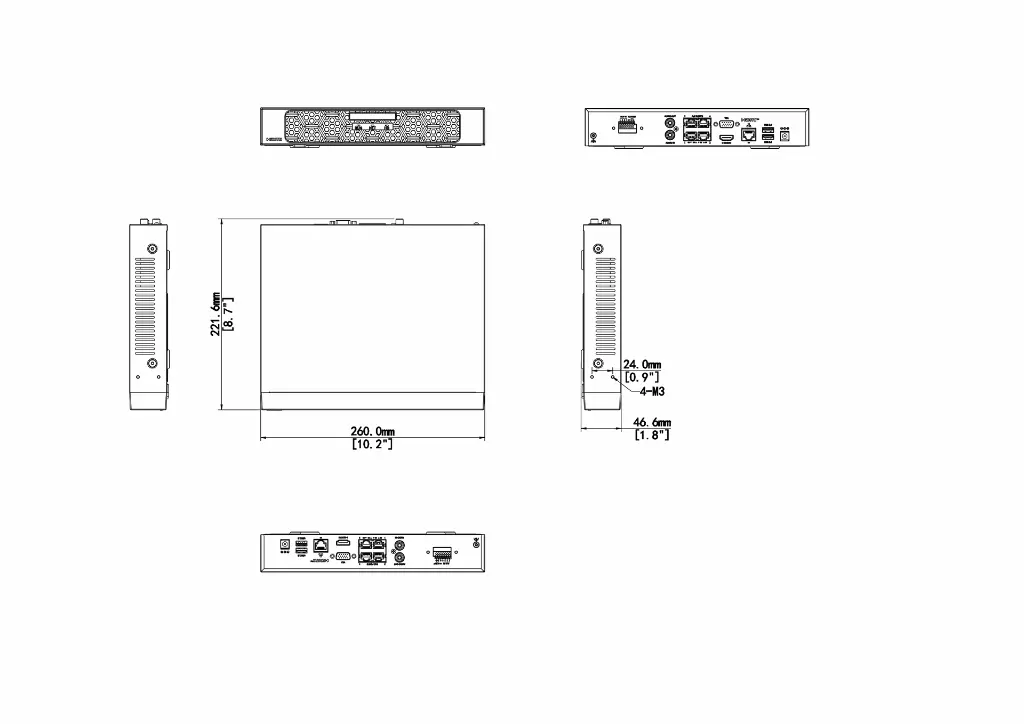

• Dimensions: 260 × 222 × 47 mm

• Weight: ≤1.1 kg (without HDD)

🎯 Best Used For

• Small-scale commercial and residential surveillance systems

• Installations requiring high-resolution recording and AI analytics

• Environments needing compact and efficient NVR solutions

• Projects where reliable PoE power for multiple IP cameras is essential
