NVR501-08B-P8-IQ-WITH-4TB

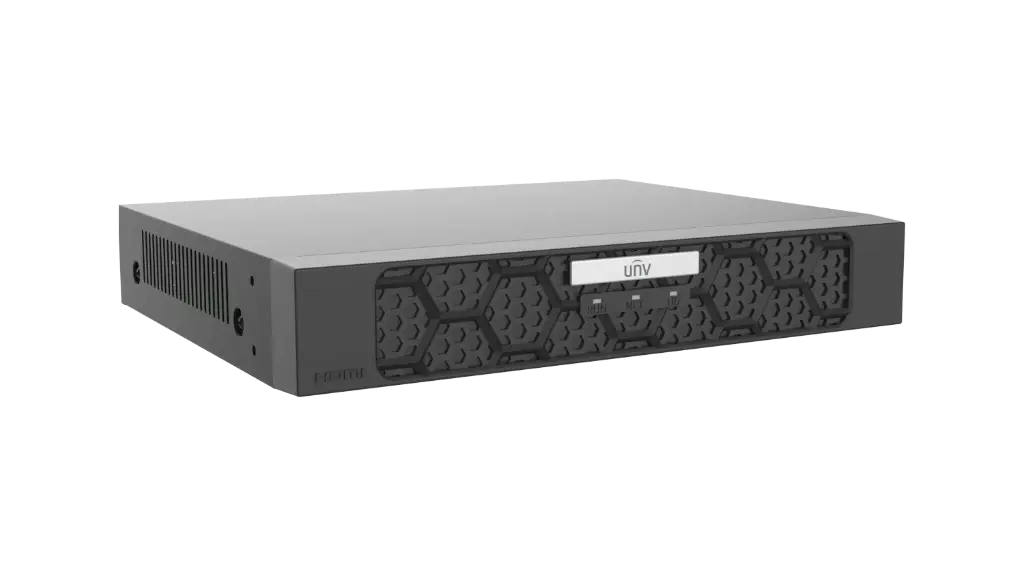

NVR501-08B-P8-IQ-WITH-4TB – 8-Channel 4K AI NVR with 8-Port PoE and 4TB HDD

A high-performance 8-channel network video recorder designed for advanced surveillance applications. Featuring 8 PoE ports and intelligent analytics, it supports up to 16MP resolution recording and offers robust storage capabilities. This model comes pre-installed with a 4TB surveillance-grade hard drive.

📌 Key Features

• 8-channel IP video input with real-time recording

• Integrated 8-port PoE switch for simplified camera connectivity

• Supports up to 16MP resolution per channel

• Advanced AI features: face detection, intrusion prevention, people counting

• HDMI and VGA outputs for dual-display setups

• Smart playback with event and motion-based search

• ANR technology to enhance storage reliability during network interruptions

• Compact 1U design for efficient installation

• Pre-installed 4TB surveillance-grade HDD

⚙️ Technical Specifications

• Video Input: 8 IP channels

• PoE Ports: 8 × 10/100 Mbps (IEEE 802.3af/at compliant)

• Maximum Resolution: 16MP per channel

• Recording Bandwidth: 80 Mbps

• Decoding Capability:

  • Smart Off: 2 × 16MP@30fps, 2 × 12MP@30fps, 4 × 4K@30fps, 6 × 5MP@30fps, 8 × 4MP@30fps

  • Smart On: 2 × 12MP@30fps, 2 × 4K@30fps, 6 × 4MP@30fps, 8 × 3MP@30fps

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 1 × SATA interface (4TB HDD pre-installed, up to 16TB capacity)

• USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

• Smart Features: AI camera support, motion detection, smart search, human/vehicle classification

• Remote Access: CMS software, web browser, mobile app

• Power Supply: DC 52V/1.8A, PoE budget approx. 75W (max 30W per port)

• Power Consumption: ≤10W (excluding HDD and PoE output)

• Operating Temperature: -10°C to 55°C

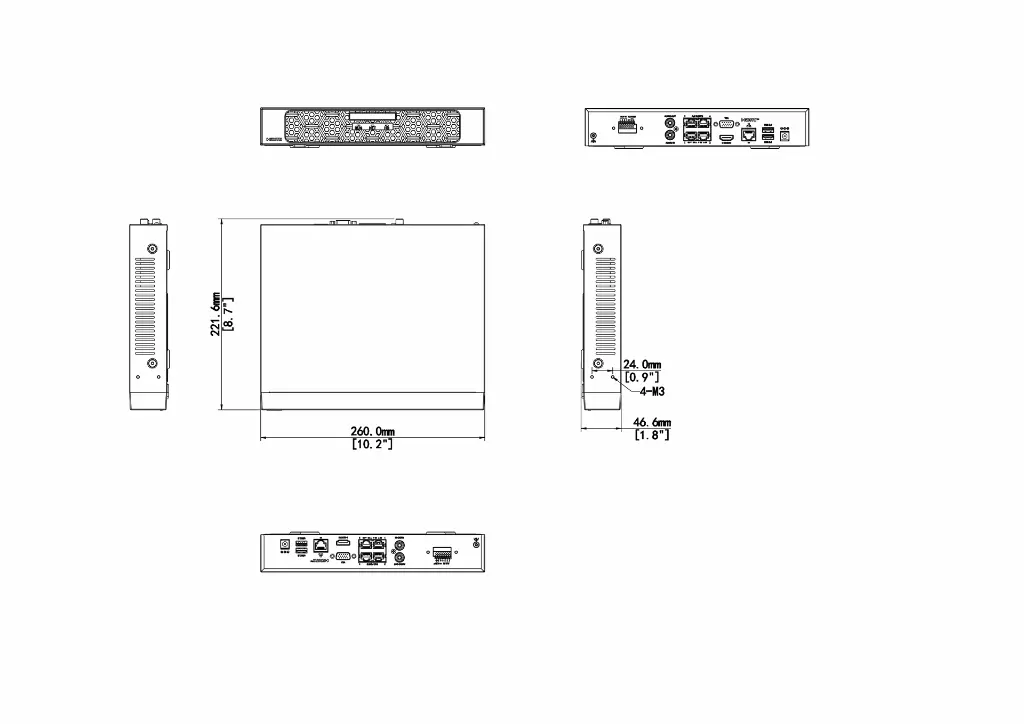

• Dimensions: 260 × 222 × 47 mm

• Weight: ≤1.1 kg (without HDD)

🎯 Best Used For

• Medium-scale commercial and industrial surveillance systems

• Installations requiring high-resolution recording and AI analytics

• Environments needing reliable PoE power for multiple IP cameras

• Projects where compact and efficient NVR solutions are essential
