NVR502-08B-P8-IQ

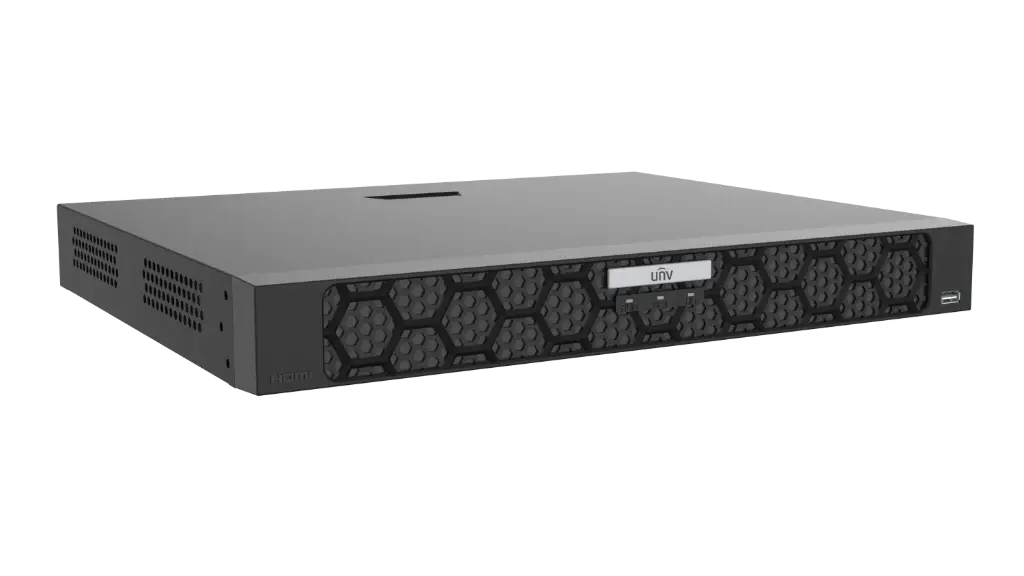

NVR502-08B-P8-IQ – 8-Channel 4K AI NVR with 8-Port PoE and Dual HDD Bays

A robust 8-channel network video recorder designed for advanced surveillance applications. Featuring 8 PoE ports and intelligent analytics, it supports up to 16MP resolution recording and offers robust storage capabilities with dual HDD bays.

📌 Key Features

• 8-channel IP video input with real-time recording

• Integrated 8-port PoE switch for simplified camera connectivity

• Supports up to 16MP resolution per channel

• Advanced AI features: face detection, intrusion prevention, people counting

• HDMI and VGA outputs for dual-display setups

• Smart playback with event and motion-based search

• ANR technology to enhance storage reliability during network interruptions

• Dual SATA interfaces supporting up to 16TB per HDD

• Compact 1U design for efficient installation

⚙️ Technical Specifications

• Video Input: 8 IP channels

• PoE Ports: 8 × 10/100 Mbps (IEEE 802.3af/at compliant)

• Maximum Resolution: 16MP per channel

• Recording Bandwidth: 320 Mbps (Smart Off), 160 Mbps (Smart On)

• Decoding Capability:

  • Smart Off: 2 × 16MP@30fps, 2 × 12MP@30fps, 4 × 4K@30fps, 8 × 4MP@30fps, 8 × 3MP@30fps, 8 × 1080P@30fps

  • Smart On: 2 × 12MP@30fps, 2 × 4K@30fps, 6 × 4MP@30fps, 8 × 3MP@30fps, 8 × 1080P@30fps

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 2 × SATA interfaces (up to 16TB per HDD)

• USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

• Smart Features: AI camera support, motion detection, smart search, human/vehicle classification

• Remote Access: CMS software, web browser, mobile app

• Power Supply: AC 100–240V, PoE budget approx. 130W (max 30W per port)

• Power Consumption: ≤20W (excluding HDD and PoE output)

• Operating Temperature: -10°C to 55°C

• Dimensions: 380 × 322 × 53 mm

• Weight: ≤2.6 kg (without HDD)

🎯 Best Used For

• Medium-scale commercial and industrial surveillance systems

• Installations requiring high-resolution recording and AI analytics

• Environments needing reliable PoE power for multiple IP cameras

• Projects where scalable storage solutions are essential
