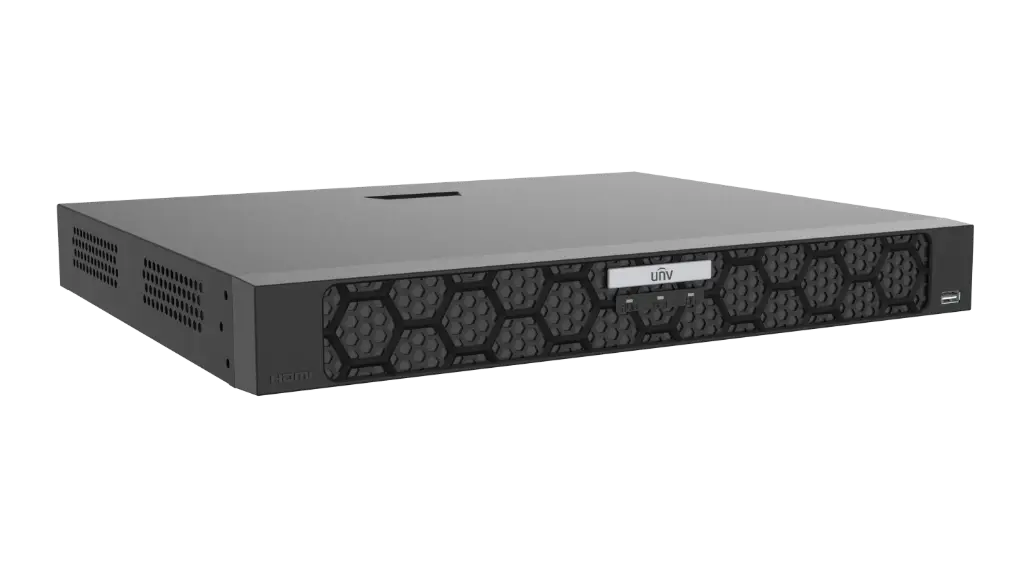

NVR502-16B-P16-IQ

NVR502-16B-P16-IQ – 16-Channel 4K AI NVR with 16-Port PoE and Dual HDD Bays

A high-performance 16-channel network video recorder designed for advanced surveillance applications. Featuring 16 PoE ports and intelligent analytics, it supports up to 16MP resolution recording and offers robust storage capabilities with dual HDD bays.

📌 Key Features

• 16-channel IP video input with real-time recording

• Integrated 16-port PoE switch for simplified camera connectivity

• Supports up to 16MP resolution per channel

• Advanced AI features: face detection, intrusion prevention, people counting

• HDMI and VGA outputs for dual-display setups

• Smart playback with event and motion-based search

• ANR technology to enhance storage reliability during network interruptions

• Dual SATA interfaces supporting up to 16TB per HDD

• RAID 1 support for data redundancy

• Compact 1U design for efficient installation

⚙️ Technical Specifications

• Video Input: 16 IP channels

• PoE Ports: 16 × 10/100 Mbps (IEEE 802.3af/at compliant)

• Maximum Resolution: 16MP per channel

• Recording Bandwidth: 320 Mbps (Smart Off), 160 Mbps (Smart On)

• Decoding Capability:

  • Smart Off: 2 × 16MP@30fps, 2 × 12MP@30fps, 4 × 4K@30fps, 8 × 4MP@30fps, 10 × 3MP@30fps, 16 × 1080P@30fps

  • Smart On: 2 × 12MP@30fps, 2 × 4K@30fps, 6 × 4MP@30fps, 8 × 3MP@30fps, 12 × 1080P@30fps, 16 × 720P@30fps

• Video Output: 1 HDMI (up to 4K), 1 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 2 × SATA interfaces (up to 16TB per HDD)

• USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

• Smart Features: AI camera support, motion detection, smart search, human/vehicle classification

• Remote Access: CMS software, web browser, mobile app

• Power Supply: AC 100–240V, PoE budget approx. 240W (max 30W per port)

• Power Consumption: ≤20W (excluding HDD and PoE output)

• Operating Temperature: -10°C to 55°C

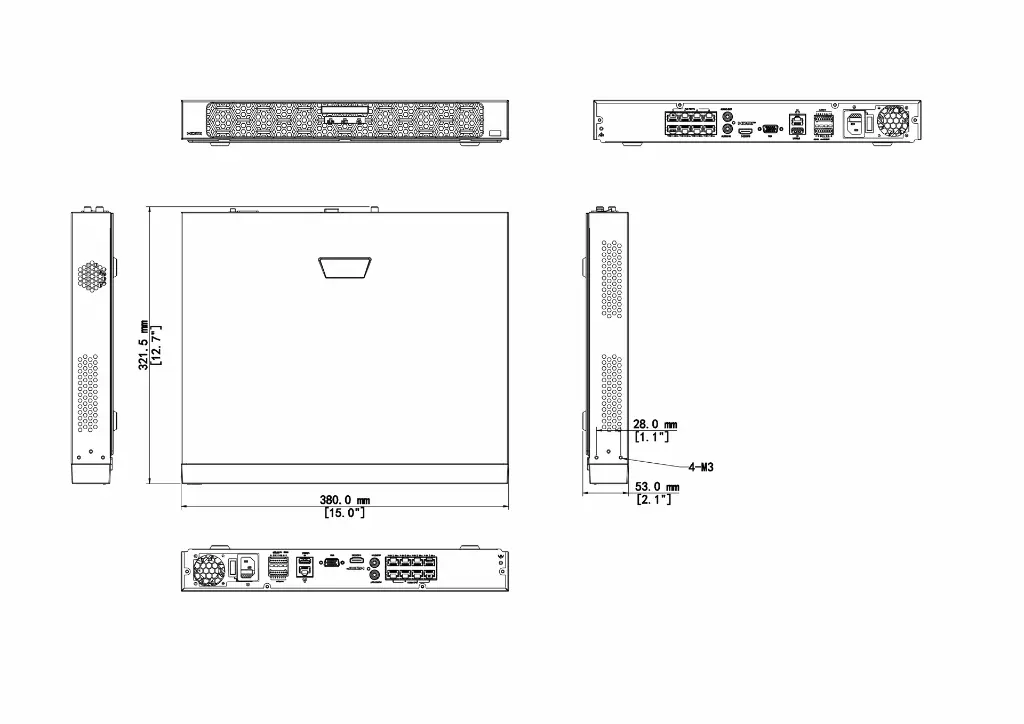

• Dimensions: 380 × 322 × 53 mm

• Weight: ≤2.6 kg (without HDD)

🎯 Best Used For

• Medium to large-scale commercial and industrial surveillance systems

• Installations requiring high-resolution recording and AI analytics

• Environments needing reliable PoE power for multiple IP cameras

• Projects where scalable storage solutions are essential
