NVR508-64E-IQ

NVR508-64E-IQ – 64-Channel 4K AI NVR with 8 SATA Bays and RAID Support

A premium 64-channel network video recorder designed for large-scale surveillance systems. With intelligent analytics, ultra-high resolution support, and enterprise-grade storage with RAID, this NVR is ideal for complex, security-critical environments.

📌 Key Features

• Supports 64 IP camera inputs

• Up to 32MP recording per channel

• AI features: face detection, perimeter protection, people counting

• Smart search and playback

• Dual HDMI and VGA video outputs

• 8 × SATA bays for large storage needs (up to 16TB per drive)

• RAID 0, 1, 5, 6, 10 support

• Redundant power option

• Smart fan and system self-diagnosis

⚙️ Technical Specifications

• Video Input: 64 IP channels

• Max Resolution: 32MP per channel

• Incoming Bandwidth: 384Mbps (Smart Off), 200Mbps (Smart On)

• Decoding Performance:

  • Smart Off: 2 × 32MP, 4 × 16MP, 8 × 4K, 32 × 1080P, 64 × 720P

  • Smart On: 1 × 32MP, 6 × 4K, 24 × 1080P

• Video Outputs: 2 HDMI (up to 4K), 2 VGA

• Compression: Ultra 265, H.265, H.264

• Storage: 8 × SATA interfaces (max 16TB each, 128TB total)

• RAID Levels: RAID 0, 1, 5, 6, 10

• USB Ports: 2 × USB 2.0 (front), 2 × USB 3.0 (rear)

• Power Supply: Dual AC 100–240V inputs (redundant support)

• Power Consumption: ≤20W (without HDDs)

• Operating Temp: -10°C to 55°C

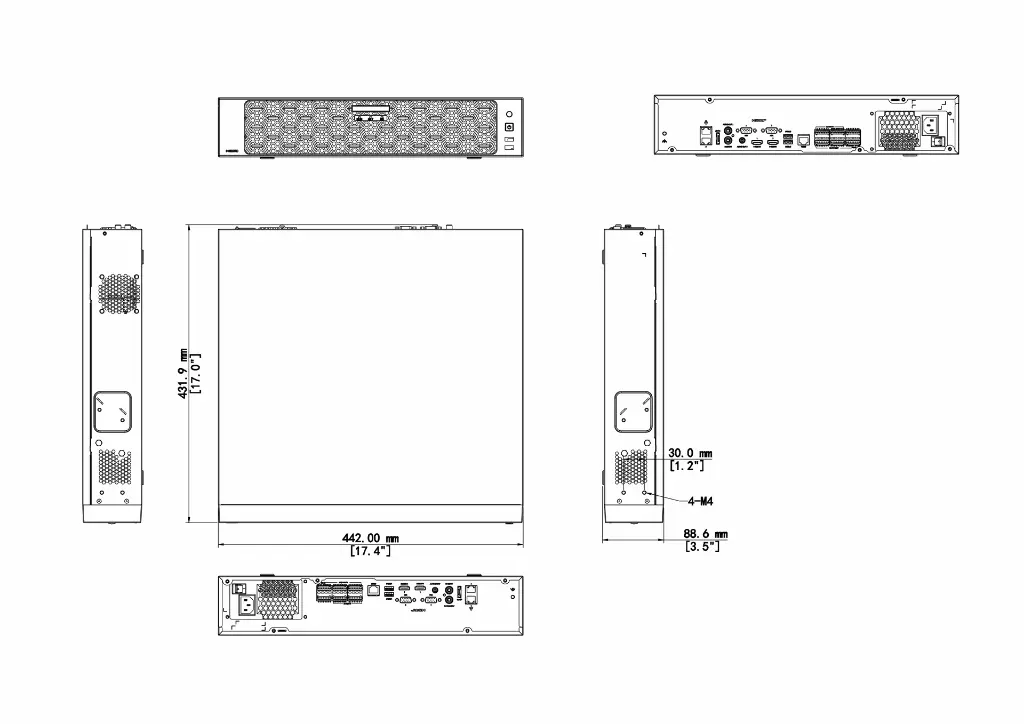

• Dimensions: 443 × 448 × 93MM

• Weight: ≤6.5KG (without HDDs)

🎯 Best Used For

• Enterprise-level surveillance and central monitoring stations

• High-density retail, casino, or critical infrastructure environments

• Projects requiring extensive AI features and ultra-HD support

• Applications needing large, RAID-protected storage

• Locations requiring 24/7 uptime with failover-ready design
