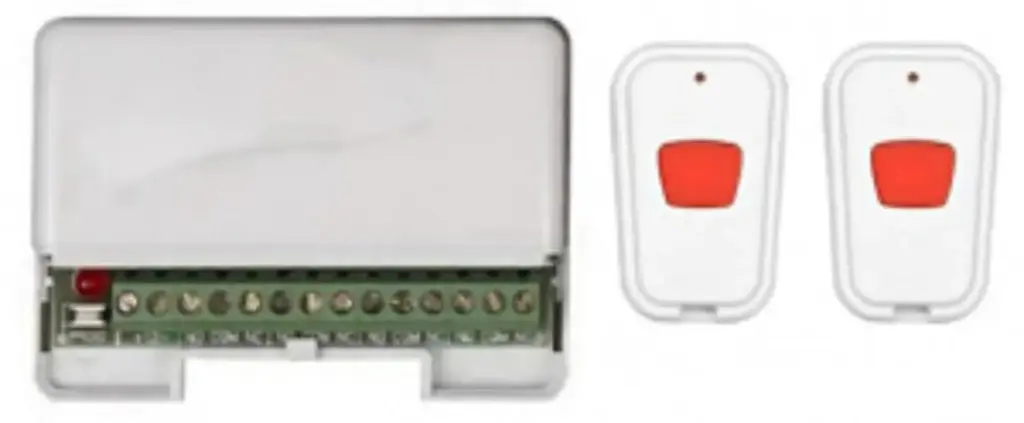

RSR-RTO02

🔑 Key Features

• Smooth Roll-To-Open (RTO) operation for doors or gates

• Rolling code encryption enhances security against replay attacks

• Supports up to 25 paired remotes, expandable to 500 on request

• Compact enclosure for discreet placement near operator controls

• Excellent RF range, ideal for residential and small commercial use

🛠 Technical Specifications

• Model: RSR-RTO02

• Function: Wireless Roll-To-Open receiver

• Relay Output: 1 × SPDT relay (Form C)

• Relay Rating: 1 A at 24 V DC / 120 V AC

• Voltage Range: 9–15 V DC

• Current Draw: 8–20 mA

• Remote Capacity: 25 remotes standard (up to 500 optional)

• Security: Rolling code encryption

• RF Frequency: 433 MHz

• Dimensions: Approx. 90 × 60 × 28 mm

📦 Package Includes

• 1 × RSR-RTO02 Roll-To-Open RF Receiver

• 1 × Mounting bracket and screws

• 1 × Quick installation guide

🎯 Best Used For

• Automated door systems (garage doors, roller shutters)

• Secure, remote activation of gates and barriers

• Installations where hardwiring is difficult

• Residential or small business automation requiring compact wireless receivers

🏷
