RSR01-2

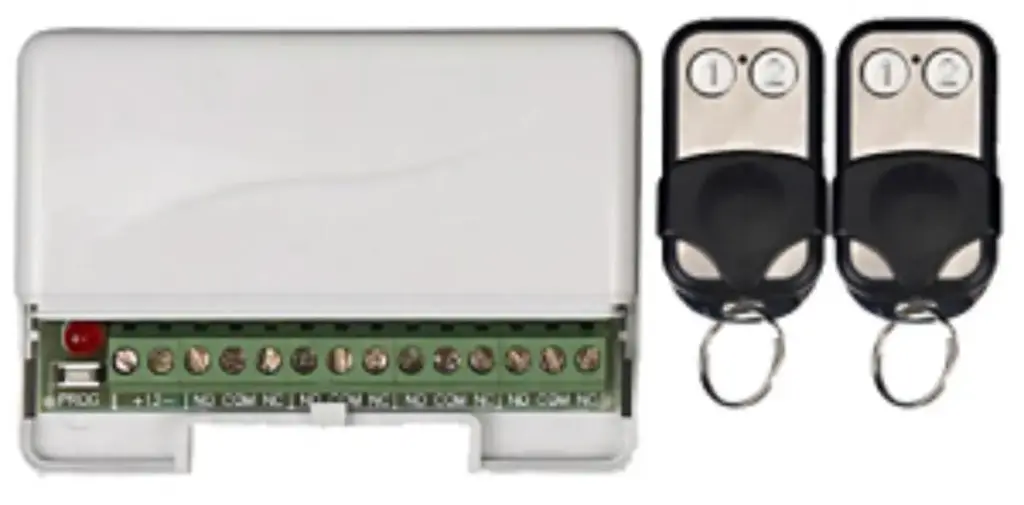

A complete remote control kit comprising a wireless receiver and two robust two-button remotes. Designed for seamless control of up to four relay outputs, ideal for automation and security system integration.

Key Features

• Complete kit includes 1 receiver and 2 two-button remotes

• Expands functionality with 4 programmable relay outputs

• Utilizes rolling code encryption for secure remote communication

• Supports 25 remotes standard, expandable to 500 on request

• Durable remotes feature sliding cover protection and low battery alert

• Ideal for arming/disarming, panic signalling, and auxiliary control

Technical Specifications

• Model: DFMRSR01-2

• Function: Stand-alone remote control kit

• Relay Outputs: 4 × SPDT relays (Form C)

• Relay Rating: 1 A at 24 V DC / 120 V AC

• Operating Voltage: 9–15 V DC

• Receiver Current: 8–40 mA

• Remote RF Frequency: 433.92 MHz

• Security: Keeloq rolling code (4.3 billion combos)

• RF Range: Up to 150 m (open air)

• Remote Battery: 2 × 3 V lithium (≈4 years life)

• Dimensions (Receiver): ~90 × 60 × 28 mm

Package Includes

• 1 × Receiver module (4-relay outputs)

• 2 × Two-button remotes with sliding covers

• 1 × Mounting bracket and hardware

• 1 × Quick installation guide

Best Used For

• Gate, garage, or auxiliary control systems via RF remotes

• Upgrading systems with wireless relay control without hardwiring

• Secure remote access for arming, disarming, or panic activation

• Installers seeking flexible and secure remote control kits
