RSR03

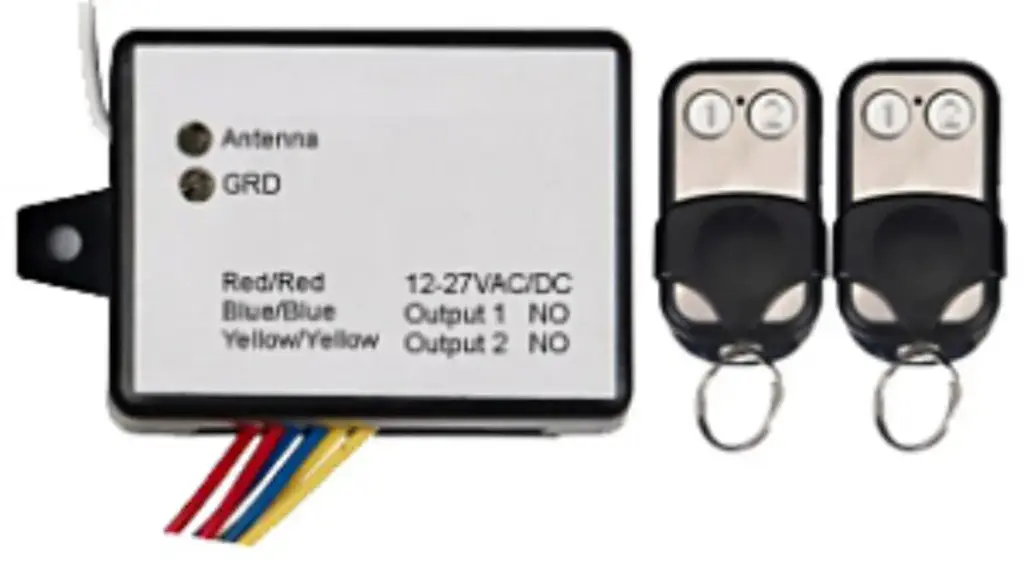

A compact, secure wireless remote-control kit featuring a mini receiver and two two-button remotes. Ideal for controlling gates, garage doors, and other auxiliary devices with two programmable relay outputs.
🔑 Key Features
Complete Kit: Includes 1 mini receiver and 2 two‑button remotes
Relay Outputs: 2 programmable SPDT relays (Form C)
Wireless Security: Features rolling code encryption to ensure secure operation
Expandable: Supports up to 25 remotes, expandable to 500 remotes
Compact Design: Mini receiver for discrete, flexible installation
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | DFMRSR03 |
| Relay Outputs | 2 × SPDT (Form C) |
| Relay Rating | 1 A at 24 V DC / 120 V AC |
| Operating Voltage | 12–27 V AC/DC |
| Current Draw | Low current consumption |
| Remote Frequency | 433.92 MHz |
| Remote Capacity | 25 remotes standard, expandable to 500 remotes |
| Security | Rolling code encryption |
| Range | Long-range performance for reliable control |
| Dimensions | Mini receiver – compact and discreet |
📦 Package Includes
1 × Mini receiver (2‑relay outputs)
2 × Two‑button remotes
1 × Mounting bracket and hardware
1 × Quick installation guide
🎯 Best Used For
Wireless control of gates, garage doors, and other automated devices
Adding remote functionality to existing systems without rewiring relays
Securing auxiliary control devices with rolling code encryption
Flexible installations in tight spaces where compact receivers are needed
Specifications
| Brand | Secor |
