SP6000+

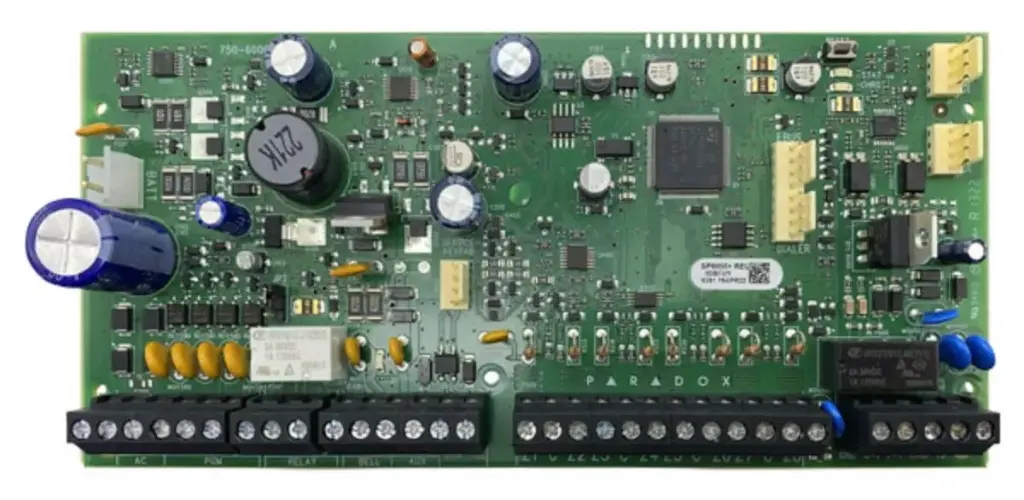

Paradox SP6000+ β 8 to 32-Zone Hybrid Security Control Panel
The Paradox SP6000+ is a reliable hybrid alarm panel ideal for homes and small businesses. It supports both wired and wireless devices and offers flexible expansion, remote access, and multi-area control. Built with Paradoxβs trusted security platform, it provides robust protection and modern functionality.
π Key Features
Hybrid Security System β Supports up to 32 zones (8 onboard, expandable)
Two Partitions β Independent arming/disarming of different areas
Five PGM Outputs β Expandable up to 16 for automation and control
User-Friendly StayD Mode β Keeps the system armed 24/7 with flexibility
User Support β Stores up to 32 user codes and remotes
Event Buffer β Logs up to 512 system events
Remote Access Ready β For use with the Paradox BlueEye appΒ
Supports Modules β Works with IP150 / IP180 (IP), PCS265 / PCS250 (GSM), and VDMP3 (voice)
Firmware Upgradable β Via 307USB or serial port
βοΈ Technical Specifications
Model: SP6000+
Onboard Zones: 8 (can double to 16 via ATZ)
Max Zones: 32 (with expansion)
Partitions: 2
User Codes: 32
Event Log: 512
PGMs: 5 onboard, expandable to 16
AUX Output: 600mA (expandable to 1000mA with 3A transformer)
Battery Charging: 13.8VDC @ 700mA
Power Supply: 16VAC 1.5A
Wireless Support: Requires RTX3 module (433MHz)
Enclosure Compatibility:Β 2780000033-P2C
π’ Best Used For
Homes β Comprehensive coverage for entry points, garages, and living areas
Retail Stores β Secure point-of-sale areas and storerooms separately
Offices β Partitioned arming for public and restricted spaces
Retrofits β Integrates easily into older alarm systems for upgrades
Remote Sites β Use with GSM or IP modules for app-based control
Specifications
Brand | Paradox |
